10-1
IM DLM4038-02EN
Chapter 10 Zooming in on Waveforms
10.1 Zooming in on or out from Waveforms
This section explains the following settings (which are used when zooming in on or out from
waveforms).
• Zoom
• Display format
• Main window display
• Auto scrolling
• Zoom source waveform
• Zoom position
• Zoom factor
► “Zooming in on Waveforms” in the Features Guide

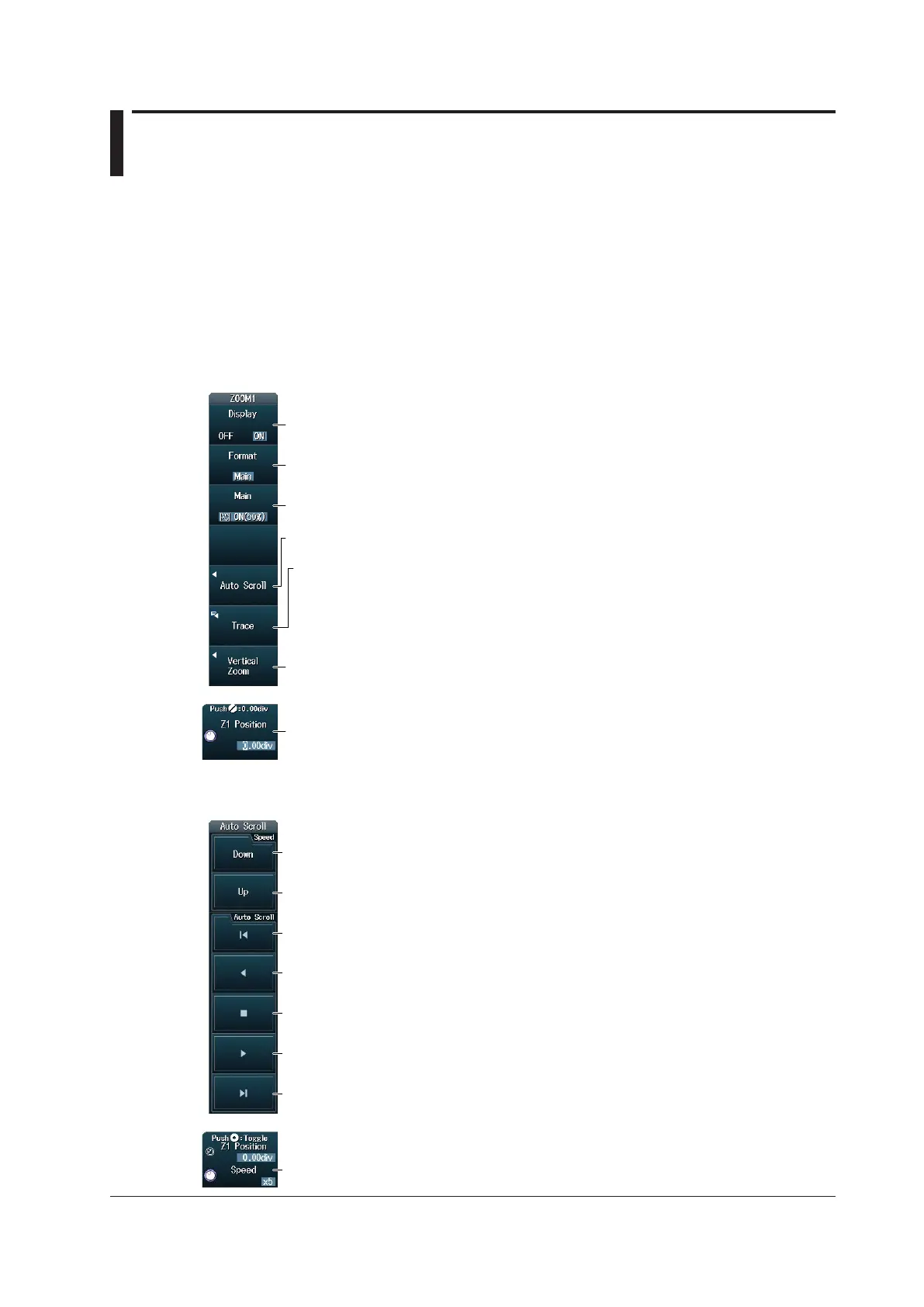

ZOOM Menu
Press ZOOM1 or ZOOM2 to display the following menu.
Turn zooming on or off.
Set the display format (Main, Single, Dual, Triad, Quad, Hexa, Octal).
Configure auto scrolling.
Set the vertical zoom. ► section 10.2
Set the main window display (OFF, ON(20%), ON(50%)).
Turn zoom source waveforms on or off (All, CH1 to CH8, LOGIC(L),
*
LOGIC(A
|
B),
*
Math1 to Math4).
Set the zoom position.
* You can select CH8 or LOGIC(L), depending on which channel’s corresponding key
(CH8 or L) is illuminated. Specify the channel that you want to measure in advance by
pressing either the CH8 key or the L key.
LOGIC(A|B) is available on models with the /L16 option.
Setting Auto Scrolling (Auto Scroll)
Press the Auto Scroll soft key to display the following menu.
Set the scroll speed.
• Stops auto scrolling
• Scrolls right
• Scrolls left
• Zooms in on the right edge of the Main window
• Zooms in on the left edge of the Main window
• Increases the speed by one level
• Decreases the speed by one level
Set the scroll speed (x1, x2, x5, x10, x20, x50).
Configure auto scrolling.
To Next Page
