2.8 Triggering on State Width
This section explains the following settings (which are used when triggering on state conditions).
• State condition
Clock source and the level used to detect the the pattern
• Logic combination
• Trigger condition
• Time width mode
Reference time
► “State Width Trigger [ENHANCED]” in the Features Guide
ENHANCED State Width Menu

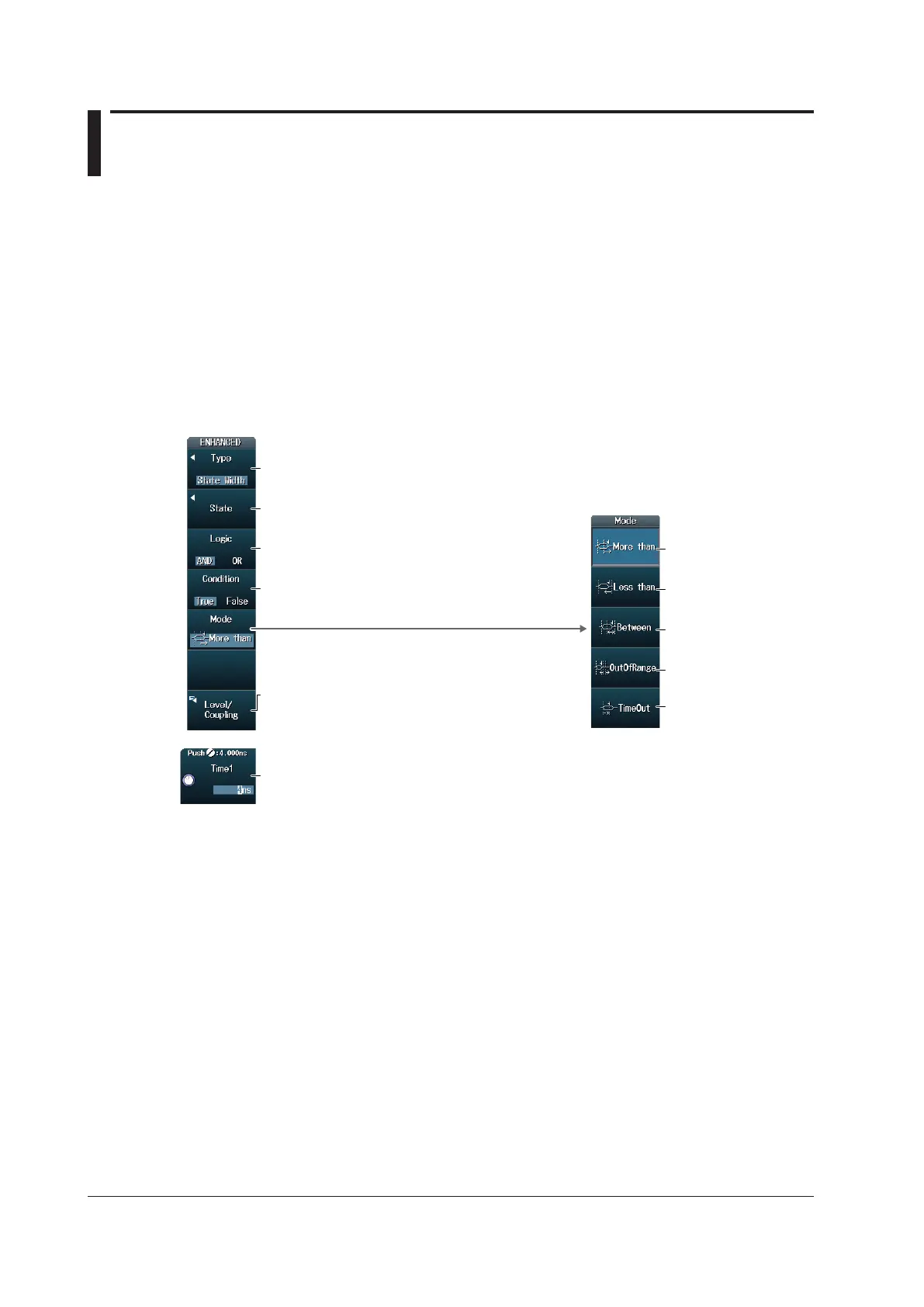

Press ENHANCED and then the Type soft key. From the setup menu that appears, select State Width
to display the following menu.
Set the trigger type to State Width.
Configure the state conditions.
Set the trigger condition (True, False).
Set the logic combination (AND, OR).
Set the trigger level, trigger coupling, HF rejection,
noise rejection, and the window comparator.
► section 2.4
Set the reference time.
Set the time width mode.
Less than
Between
OutOfRange
TimeOut
More than
