11.2 Using Conditions to Limit Edge Searches
This section explains the following settings (which are used when using conditions to limit edge
searches).
• Search type
• Search range
Search start and end points
• Search conditions
Source, slope, qualifications, logic combination, search requirements, the level used to detect signal
states, and hysteresis
► “Search Type (Type),”
“Search Range (Start/End Point),” and
“Search Conditions (Condition Setup)”
in the Features Guide

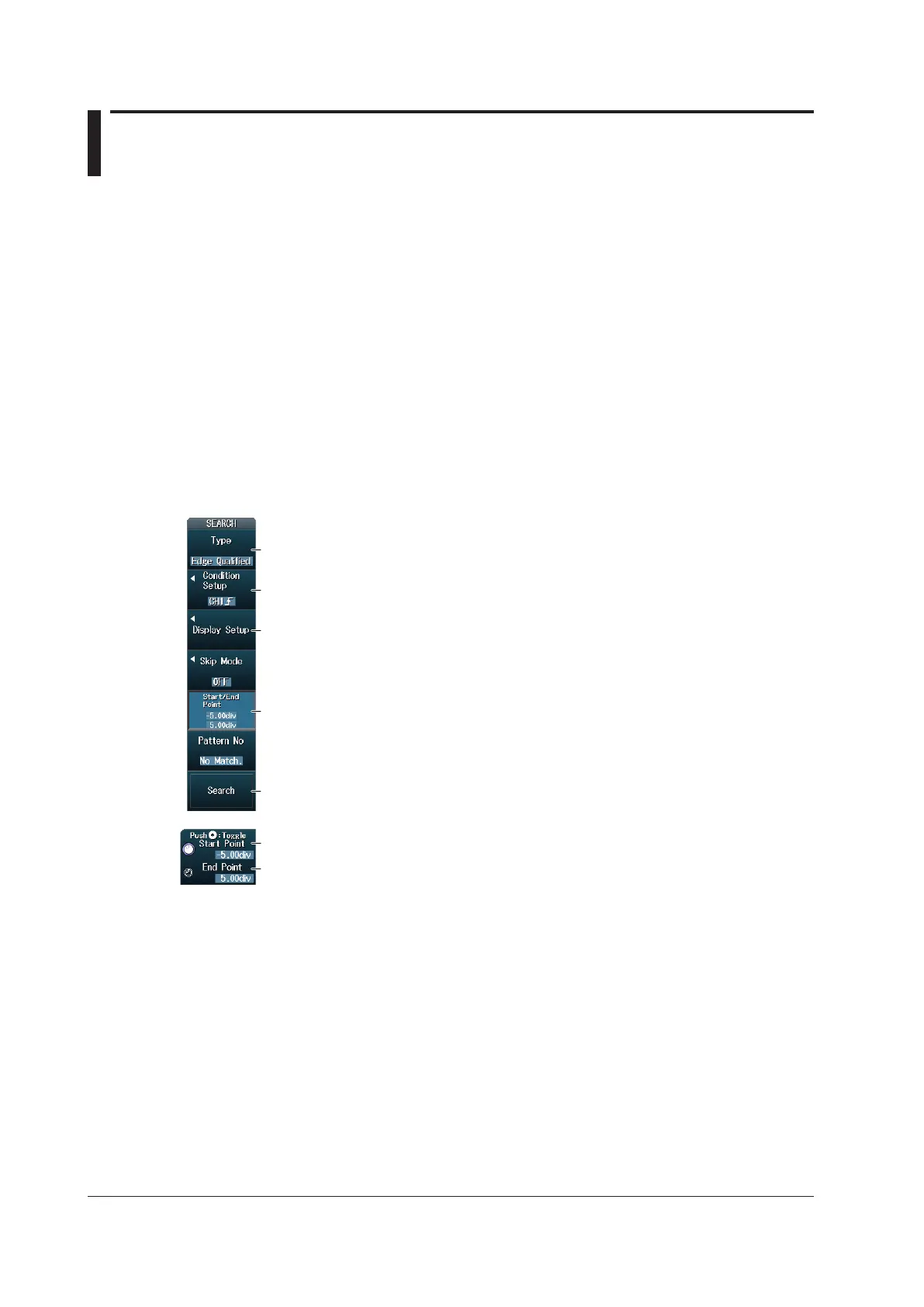

SEARCH Edge Qualified Menu
Press SEARCH, the Type soft key, and then the Edge Qualified soft key to display the following
menu.
Set the search type to Edge Qualified.
Configure the search conditions.
• Set the start point.
• Set the end point (fixed at 5 div).
Configure the search range.
Configure the detected waveform display. ►
section 11.1
Executes a search ► section 11.1
When You Press the Start/End Point Soft Key
