17-6
IM DLM4038-02EN
17.4 Saving Other Types of Data
This section explains the following settings (which are used when saving screen captures, waveform
zone data, snapshot waveform data, automated measurement values of waveform parameters, serial
bus analysis results, FFT results, histogram data, and the list of timestamps).
• Save destination
• File name
• Data type to save
• Data format
• Color data
• Waveform zone number
• Serial bus
• FFT
• Histogram
• List of timestamps
• Saving data
► “Saving Other Types of Data (Others)” in the Features Guide

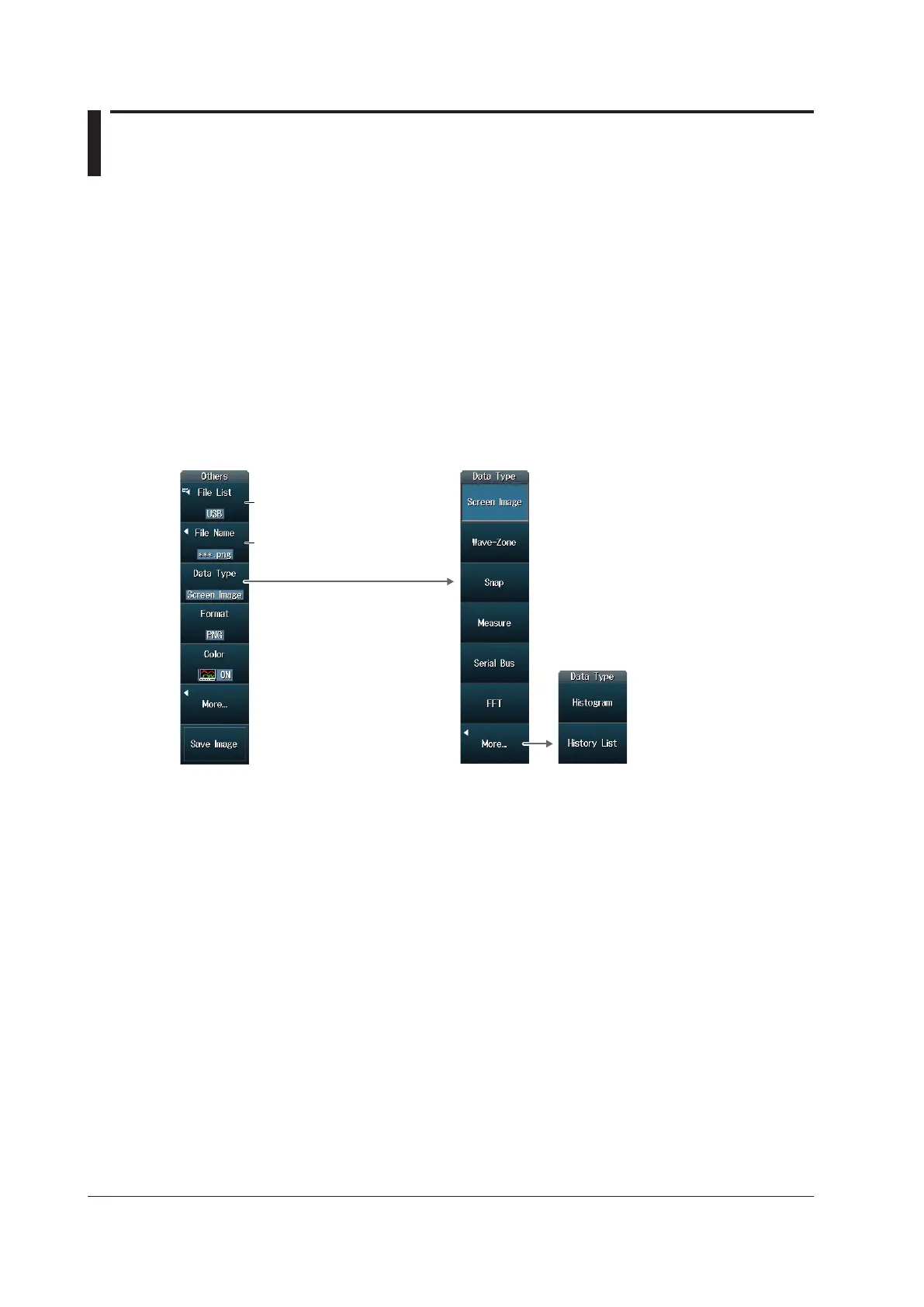

FILE Others (Save) Menu
Press FILE and then the Others (Save) soft key to display the following menu.
Set the save destination.
► section 17.2
Set the file name.
► section 17.2
Set the data type to save.
Setting the Data Type to Save (Data Type)
Screen Image: Save the display to a PNG, BMP, or JPEG file.
• You can select whether to include setting information such as channels, triggers,
and waveform acquisition, in waveform screen captures. For details on screen
captures that include setting information, see section 16.4.
• Screen captures that can be saved on the FILE menu are those that correspond to
Normal save mode on the SHIFT+PRINT menu.
Wave-Zone: Save the waveform zone to a file with a .zwf extension.
Snap: Save the waveform data captured in a snapshot to a file with .snp extension.
Measure: Save the results of automatic waveform parameter measurement to a file in CSV
format.
Serial Bus: Save the results of the serial bus analysis specified by Serial Bus1, Serial Bus2,
Serial Bus3, or Serial Bus4 to a file in CSV format.
FFT: Save the computed result specified by FFT1 or FFT2 to a file in CSV format. Up to
250 Kpoints of data can be saved.
• When Freq Info. is set to ON, all data is saved with frequency information.
• When Freq Info. is set to OFF, all data is saved without frequency information.
To Next Page
