Histogram: Save the waveform or waveform parameter histogram specified by Histogram 1 or
Histogram 2 to a file in CSV format.
History List: Save the list of timestamps to a file in CSV format.
Note
The serial bus analysis results are saved according to the settings made on the HISTORY menu. If the
history mode is set to One, the analysis results of the specified record number’s waveform are saved. If the
history mode is set to All or Accumulate, the analysis results of all the displayed waveforms are saved.

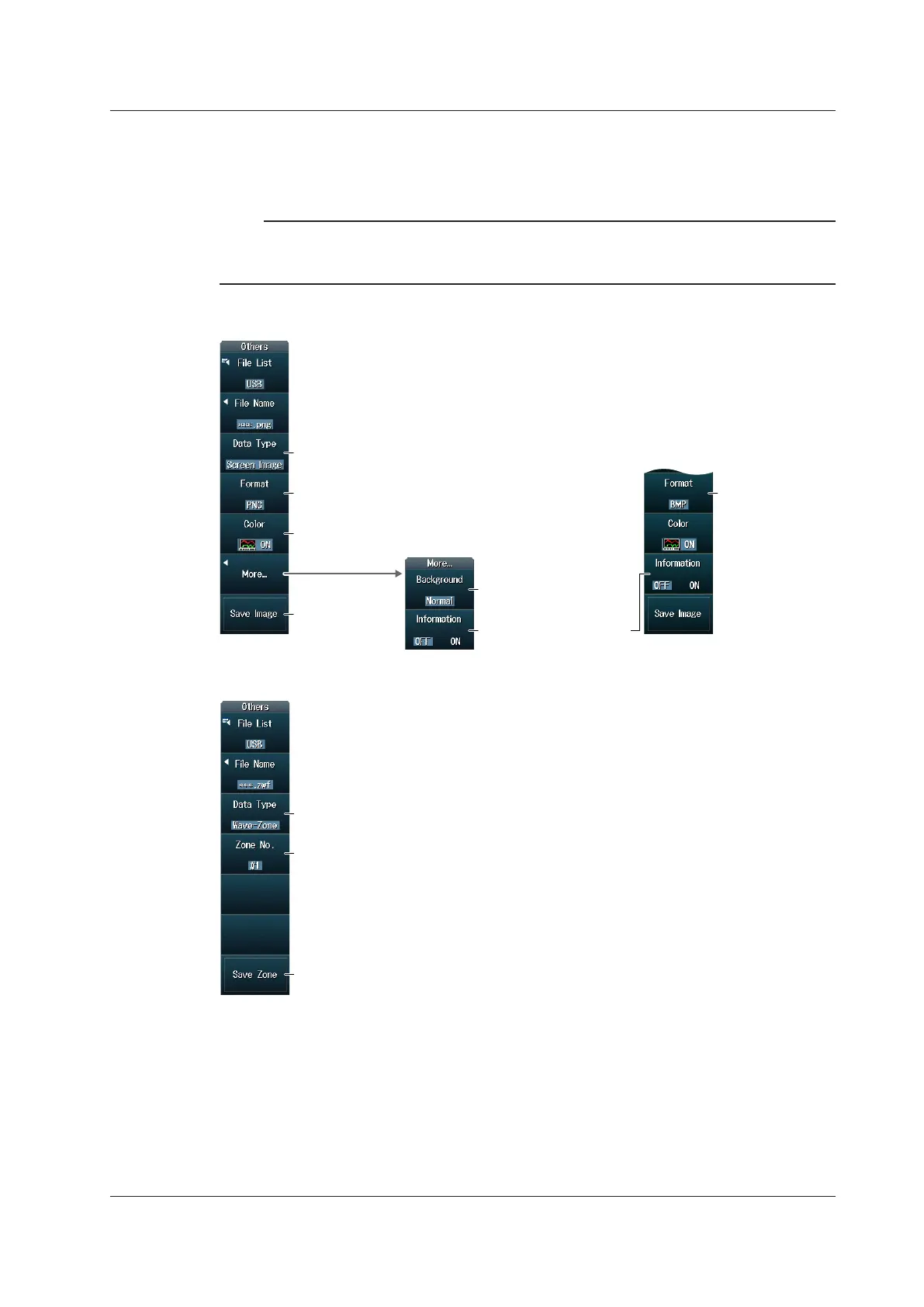

Set Data Type to Screen Image.
Set the data format to PNG.
Sets the background to
transparent (Transparent)
or opaque (Normal).
Sets the inclusion of
setting information
(Information) on and off.
Set the data format
to BMP or JPEG.
Set the color data (OFF, ON, ON(Rev.),
ON(Gray)).
Save the screen
capture.
When Data Type Is Screen Image
Set the waveform zone to save
(#1 to #4).
Save the waveform zone.
Set Data Type to Wave-Zone.
When Data Type Is Wave-Zone
17.4 Saving Other Types of Data
