2.12 Triggering on LIN Bus Signals (Option)
This section explains the following settings (which are used when triggering on LIN bus signals).
• Trigger source
Bit rate, sample point, and the level used to detect the source state
• Trigger type
Trigger condition
► “LIN Bus Trigger [ENHANCED, option]” in the Features Guide
Auto Setup
The DLM4000 can automatically set the trigger source level and bit rate from the received LIN bus
signal and trigger on them. For details, see section 12.4.

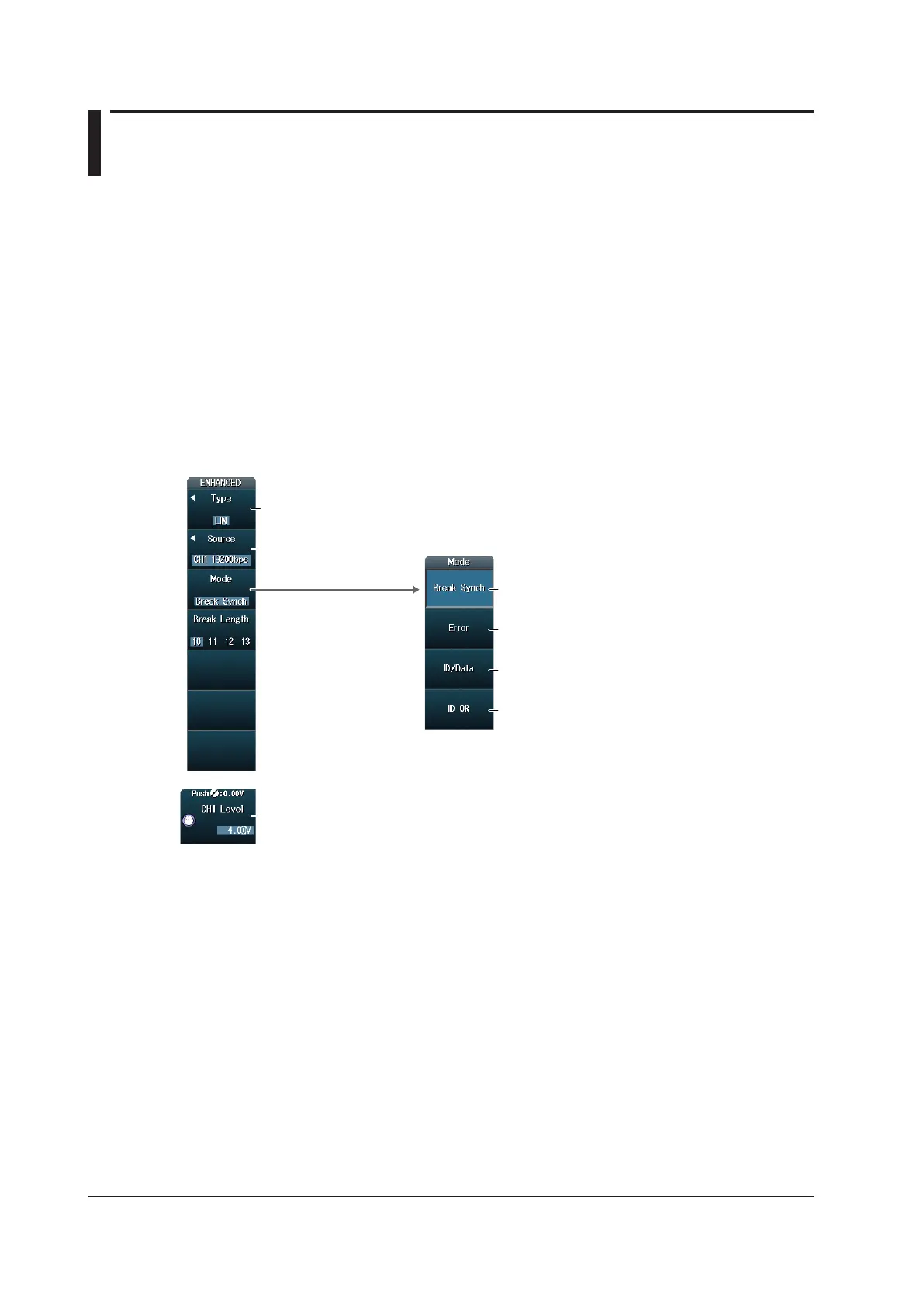

ENHANCED LIN Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select LIN to
display the following menu.
Set the trigger type to LIN.
Set the trigger source.
Set the level used to
detect source states.
Set the trigger type.
Error mode
ID/Data mode
ID OR mode
Break Synch mode
