1.2 Setting the Vertical Axis for 8-bit LOGIC(L)
This section explains the following settings (which are related to the vertical axis for LOGIC(L) signals).
LOGIC(L) menu
• Turning the LOGIC(L) display on and off
• Turning the display on and off and setting the label, threshold level, and noise rejection for each bit
• Turning the bus display on and off and setting the bus bit assignments, labels, and format
• Turning the state display on and off and setting the clock source; clock source polarity, detection
level, and hysteresis; and the state assignment
• Bit and bus display order
• Deskewing
SCALE knob
• Display size
POSITION knob
• Vertical position
► “Vertical Axis (Logic Signal)” in the Features Guide

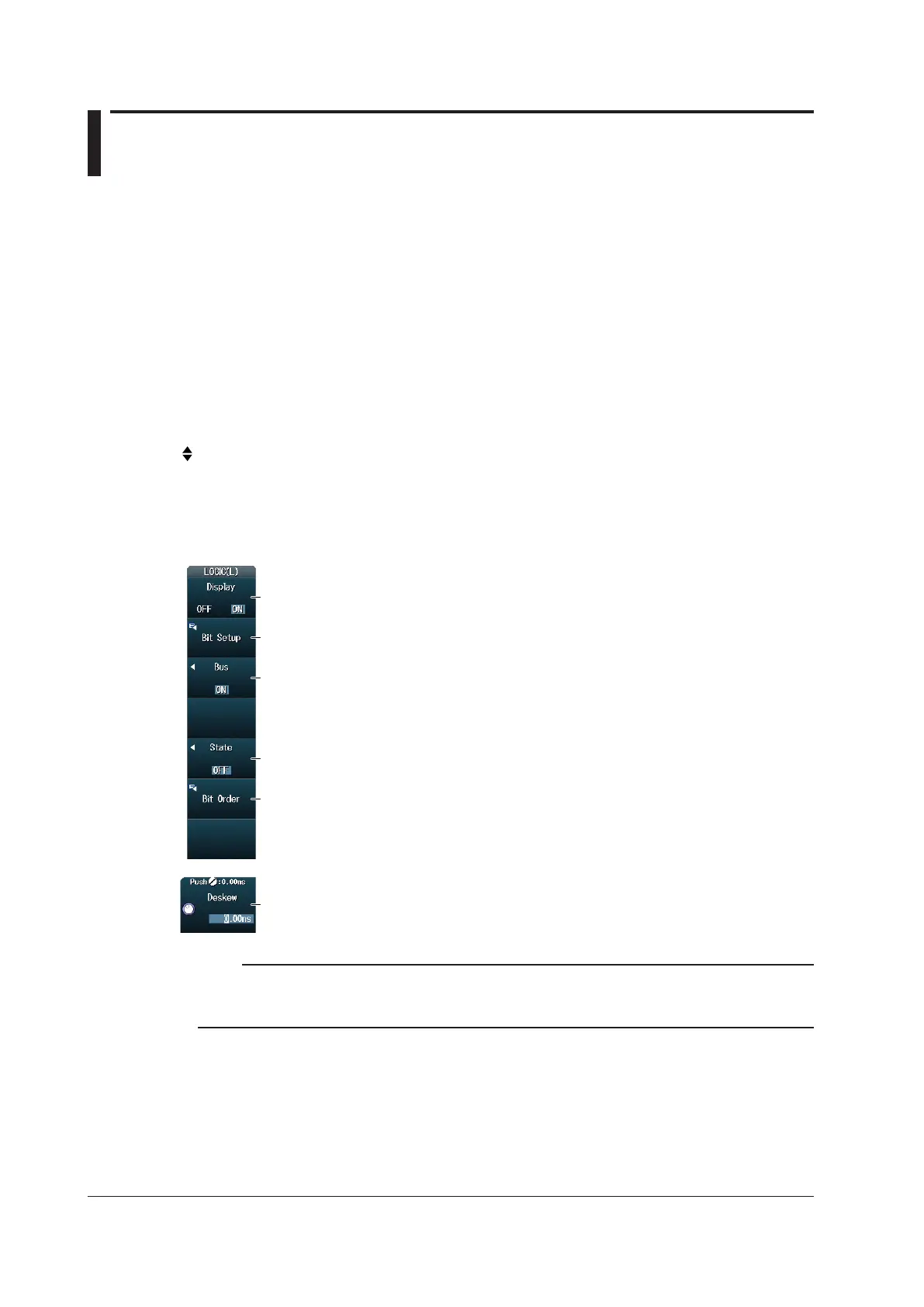

LOGIC(L) Menu
Press L to display the following menu.
Set the deskew value.
Set the bit and bus display order.
State settings
Bus settings
Set each bit.
Turns the LOGIC(L) display on and off
Note
• If you press the L key when it is not illuminated, the key illuminates, and the LOGIC(L) display turns on.
Logic signal waveforms are displayed in the CH8 waveform display area.
• If you press the L key when it is illuminated, the key turns off, and the LOGIC(L) display turns off.
