YOKOGAWA DLM4000 Series User Manual

11-13
IM DLM4038-02EN
Searching Waveforms
11.5 Searching for State Width
This section explains the following settings (which are used when searching for state width).
• Search type
• Search range
Search start and end points
• State condition
Clock source, pattern, logic combination, search requirements, time width mode, reference times,
the level used to detect signal states, and hysteresis
► “Search Type (Type),”
“Search Range (Start/End Point),” and
“Search Conditions (Condition Setup)”
in the Features Guide

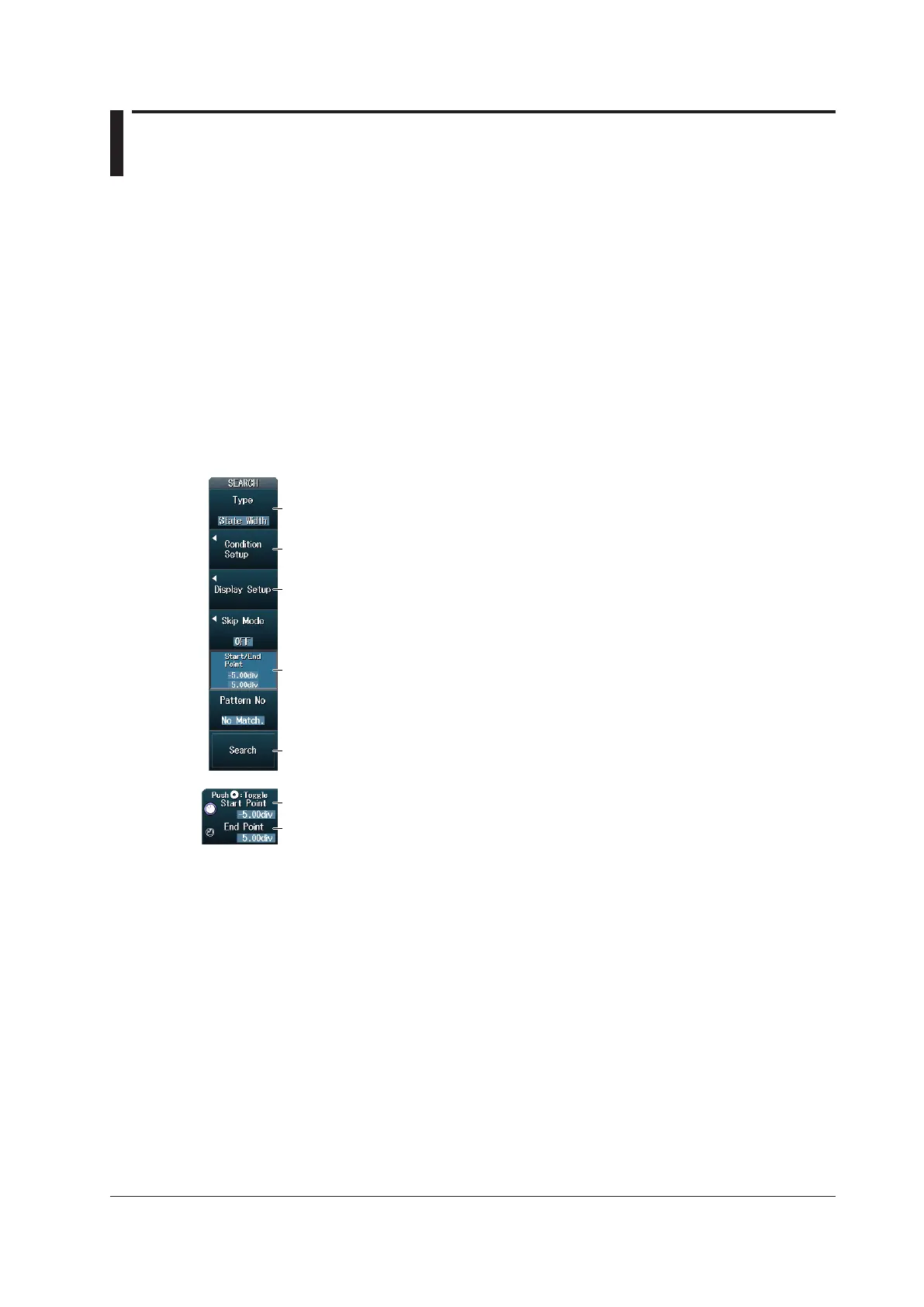

SEARCH State Width Menu
Press SEARCH, the Type soft key, and then the State Width soft key to display the following menu.
Set the search type to State Width.
Configure the state conditions.
• Set the start point.
Configure the search range.
When You Press the Start/End Point Soft Key
Configure the detected waveform display. ►
section 11.1
Executes a search ► section 11.1
• Set the end point (fixed at 5 div).
