Setting the Reference Times (Time1 and Time2)

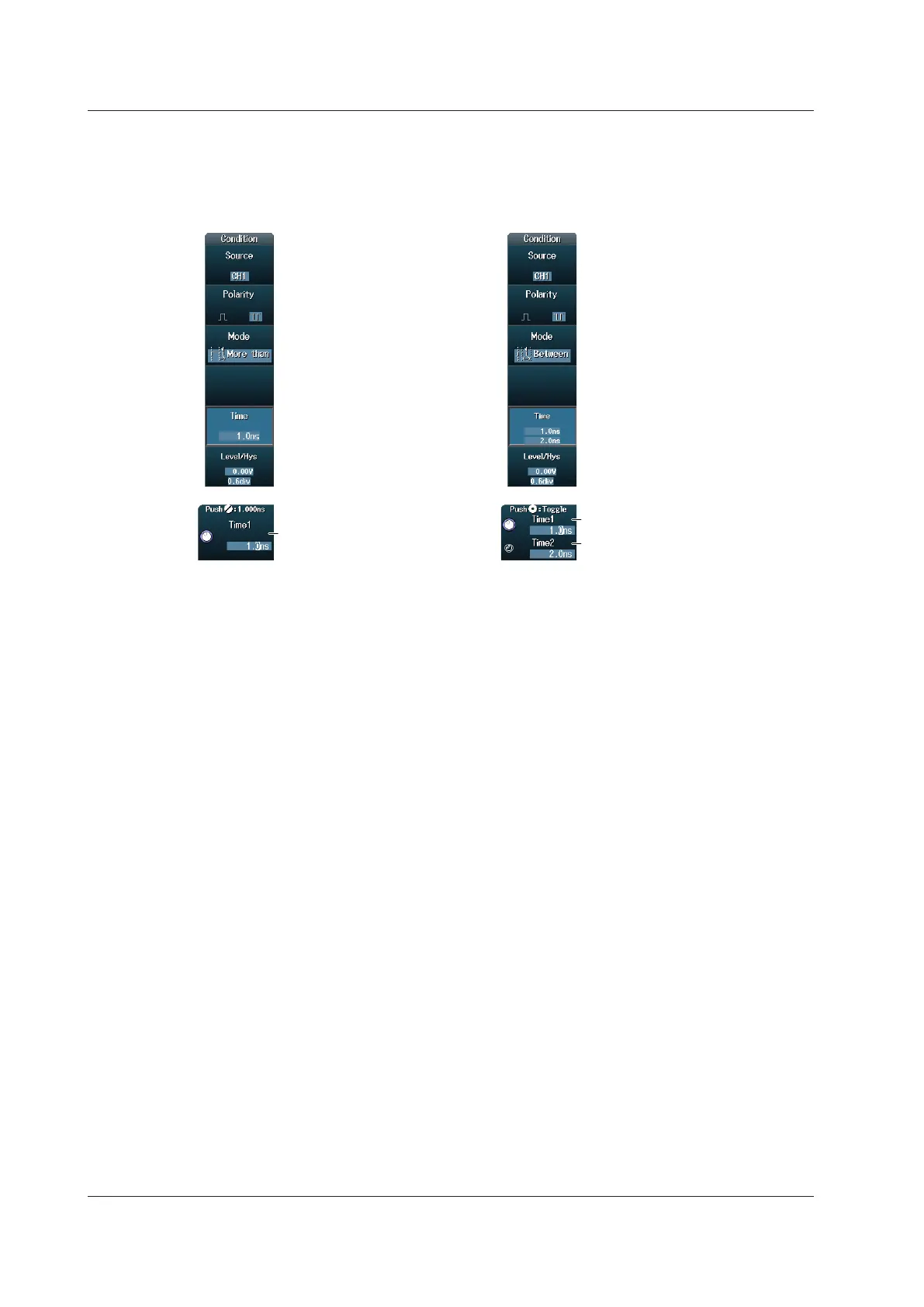

Press the Time soft key to display one of the menus shown below. The menu that is displayed

varies depending on the set time width mode.

When the Time Width Mode Is More than,

Less than, or TimeOut

When the Time Width Mode is

Between or OutOfRange

Set reference time Time1.

Set reference time Time2.
