11-11
IM DLM4038-02EN
Searching Waveforms
Setting Search Conditions (Condition Setup)
Note
Using the CH8 Terminal and LOGIC(L) Port
When you execute a search, you cannot use the CH8 terminal and LOGIC(L) port as the source at the same
time. Specify the source that you want to use in advance by pressing either the CH8 key or the L key.

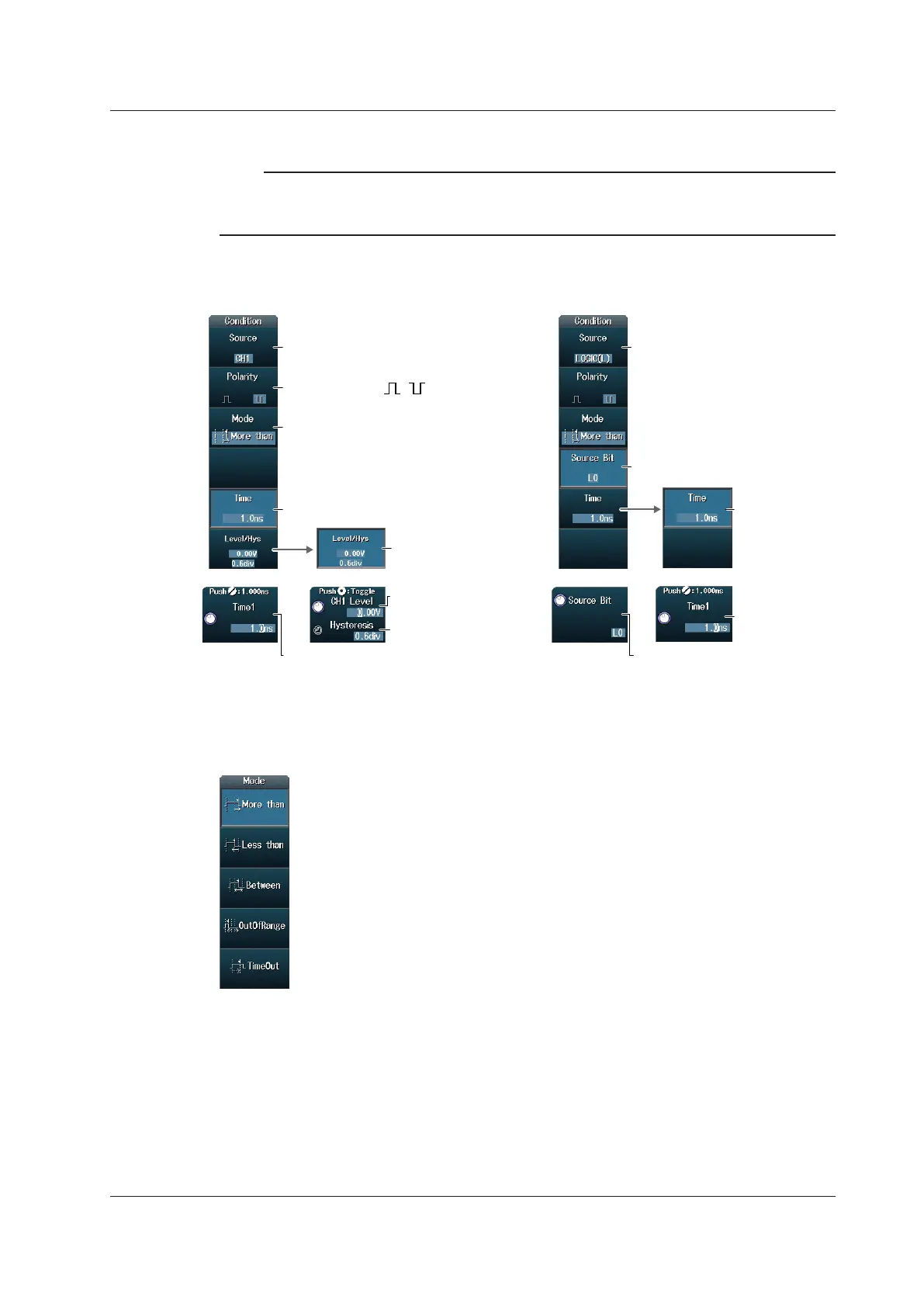

Press the Condition Setup soft key to display the following menu.
Set the source
(CH1 to CH8, Math1 to Math4).
Set the time width mode.
Set the reference time.
Set the
reference time.
• Reference time
•
Set the level used to
detect the state of each
signal and the hysteresis.
Set the polarity ( , ).
When the Source is CH1 to CH8 or
Math1 to Math4
When the Clock Source is LOGIC(L) or
LOGIC(A|B)*
Set the source (LOGIC(L),
LOGIC(A|B)).
• Set the source bit (L0 to L7,
A0 to A7, B0 to B7).*
Set the source bit.
• Level used to detect
each signal state
• Hysteresis
* LOGIC(A|B), A0 to A7, and B0 to B7 are available on models with the /L16 option.
Setting the Time Width Mode (Mode)
Press the Mode soft key to display the following menu.
Set what kind of relationship must be established between the source’s pulse width and the
specified reference times (Time1 and Time2) for a point to be detected.
More than: The pulse width must be longer than reference time Time1.
Less than: The pulse width must be shorter than reference time Time1.
Between: The pulse width must be longer than Time1 but shorter than Time2.
OutOfRange: The pulse width must be shorter than Time1 or longer than Time2.
TimeOut: The pulse width must be longer than reference time Time1.
11.4 Searching for Pulse Width
