12-9
IM DLM4038-02EN
12.3 Analyzing and Searching CAN FD Bus Signals
(Option)
This section explains the following settings (which are used when analyzing or searching CAN FD bus
signals).
• Serial bus signal analysis and search displays
• Serial bus signal types
• Analysis
Auto setup, source, bit rate, data bit rate, recessive level, sample point, the level used to detect the
source state, and hysteresis
• Decode display
• List display
List size, display position, and zoom linking
• Zoom position
• Analysis number
• Search
Jumping to the specified field, zoom window, search type, and search execution
► “Analyzing and Searching Serial Bus Signals” and
“Analyzing and Searching CAN FD Bus Signals (Option)”
in the Features Guide

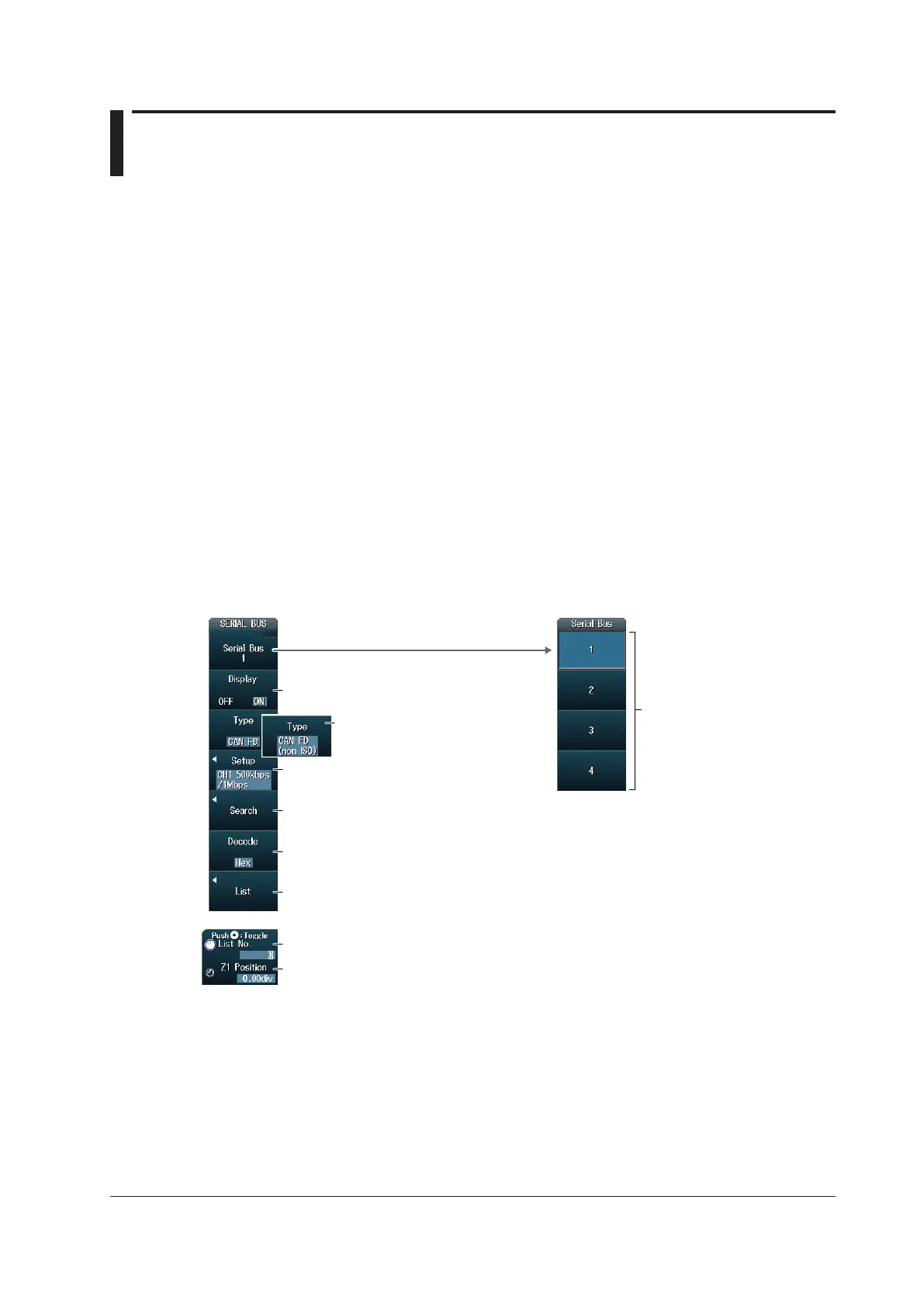

SEARCH CAN FD Menu
Press SHIFT+SEARCH (SERIAL BUS) and then the Type soft key. From the setup menu that appears,
select CAN FD to display the following menu.
Turns on or off the serial bus signal
analysis and search displays.
Set the decode display (Hex, Bin, or Symbol).
2
Set the type to CAN FD.
(If the CAN FD standard is set to
non-ISO, “(non-ISO)” is displayed.)
1
Configure the list display.
Set the serial bus.
Configure the search.
Set the analysis number.
Set the zoom position.
This sets the zoom position for the window selected
during zoom window configuration (described later).
For setting the CAN FD standard, see page 12-10.
2 You can select display CANdB symbols if you load the physical value/symbol definition file (.sbl).
Select which serial bus to set
(Serial Bus1 to Serial Bus4).
To Next Page
