YOKOGAWA DLM4000 Series User Manual

12-10
IM DLM4038-02EN
Setting the Serial Bus (Setup)
Note
Using the CH8 Terminal and LOGIC(L) Port
If you perform an analysis or execute a search when using the LOGIC(L) port for input, you cannot specify
CH8 as the source. Press the CH8 key in advance to enable input from the CH8 terminal.

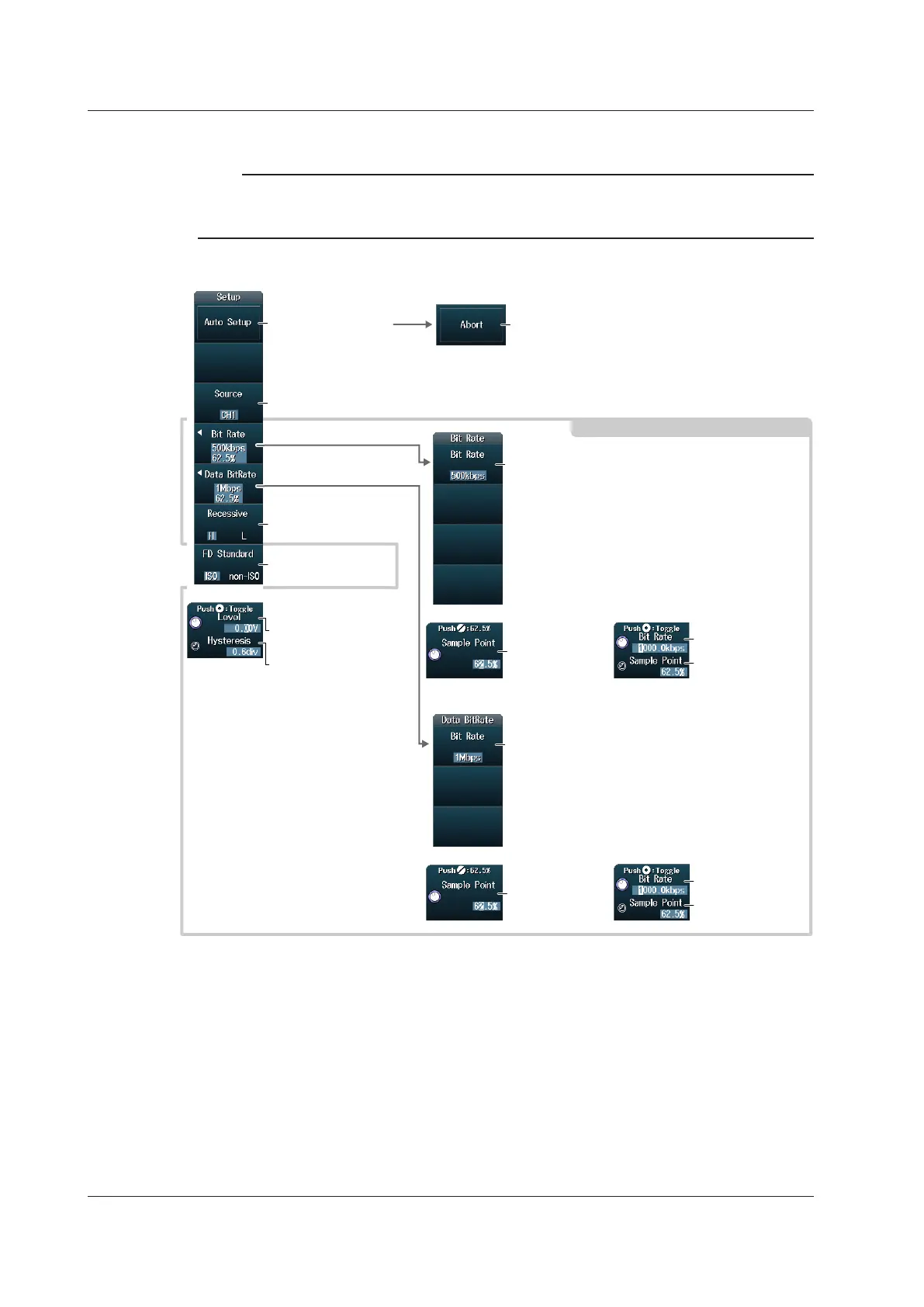

Press the Setup soft key to display the following menu.
Manual Setup
During Auto Setup
Executes auto setup.
Set the bit rate (250 kbps, 500 kbps, 1 Mbps,
User Define)
Set the data bit rate (500 kbps, 1 Mbps, 2 Mbps,
4 Mbps, 5 Mbps, 8 Mbps, User Define)
Set the recessive
level (H, L).
Set the CAN FD
standard
(ISO, non-ISO).*
Configure the detection
level and the hysteresis.
Set the sample
point.
Set the sample
point.
• Level used to detect
source states
• Hysteresis
Set the bit rate.
Set the sample
point.
Set the bit rate.
Set the sample
point.
Stop auto setup.
Set the source (CH1 to CH8, Math1 to Math4).
When the Bit Rate Is
Set to User Define
When the Data Bit Rate Is
Set to User Define
* The CAN FD standard setting is
linked to the corresponding setting
of the CAN FD trigger.
► section 2.11
Auto Setup (Auto Setup)
1.
Set the source.
Auto setup cannot be performed when the source is set to Math1 to Math4.
2.
Press the Auto Setup soft key.
The DLM4000 will automatically configure the serial bus settings.
The DLM4000 automatically configures the bit rate, data bit rate, recessive level, sample point, level, and
hysteresis and triggers on the start of frame (SOF) of the CAN FD bus signal.
While the serial bus is being configured, Auto Setup changes to Abort. If you want to stop serial bus
configuration, press the Abort soft key.
The auto setup feature will not work properly on some input signals.
12.3 Analyzing and Searching CAN FD Bus Signals (Option)
