YOKOGAWA DLM4000 Series User Manual

2-34
IM DLM4038-02EN
2.13 Triggering on SENT Signals (Option)
This section explains the following settings (which are used when triggering on SENT signals).
• Trigger source
Bit rate and the level used to detect the source state
• Format
• Trigger type
Trigger condition
►“SENTTrigger[ENHANCED,option]”intheFeaturesGuide
Auto Setup
The DLM4000 can automatically set the trigger source level and bit rate from the received SENT signal
and trigger on them. For details, see section 12.6.

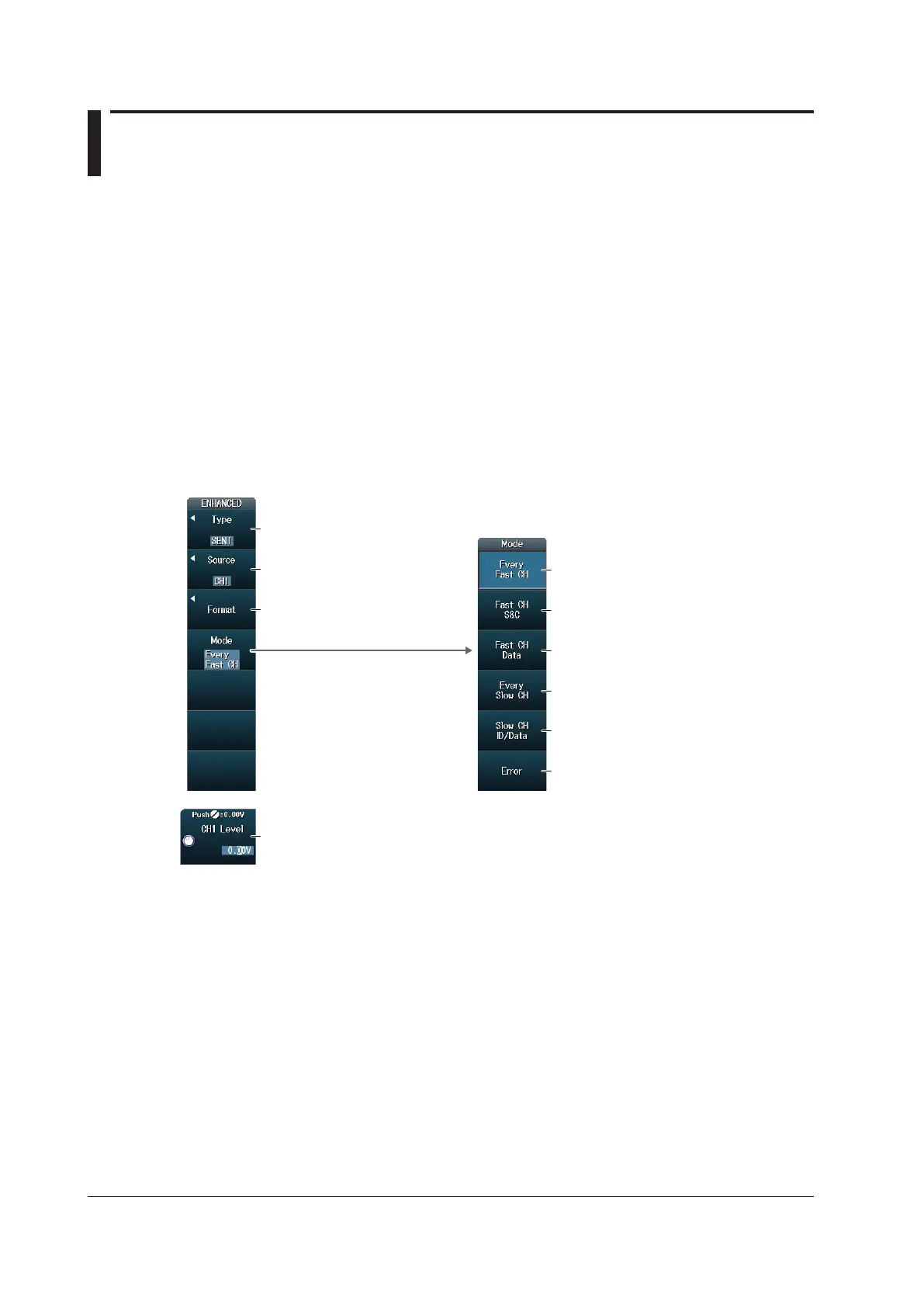

ENHANCED_SENT Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select SENT to
display the following menu.
Set the format.
Error mode
Fast CH S&C mode
Fast CH Data mode
Every Slow CH mode
Slow CH ID/Data mode
Every Fast CH mode
Set the trigger type to SENT.
Set the trigger source.
Set the level used to
detect source states.
Set the trigger type.
