YOKOGAWA DLM4000 Series User Manual

2-33
IM DLM4038-02EN
ID OR Mode
Setting Trigger Conditions (Condition Setup)

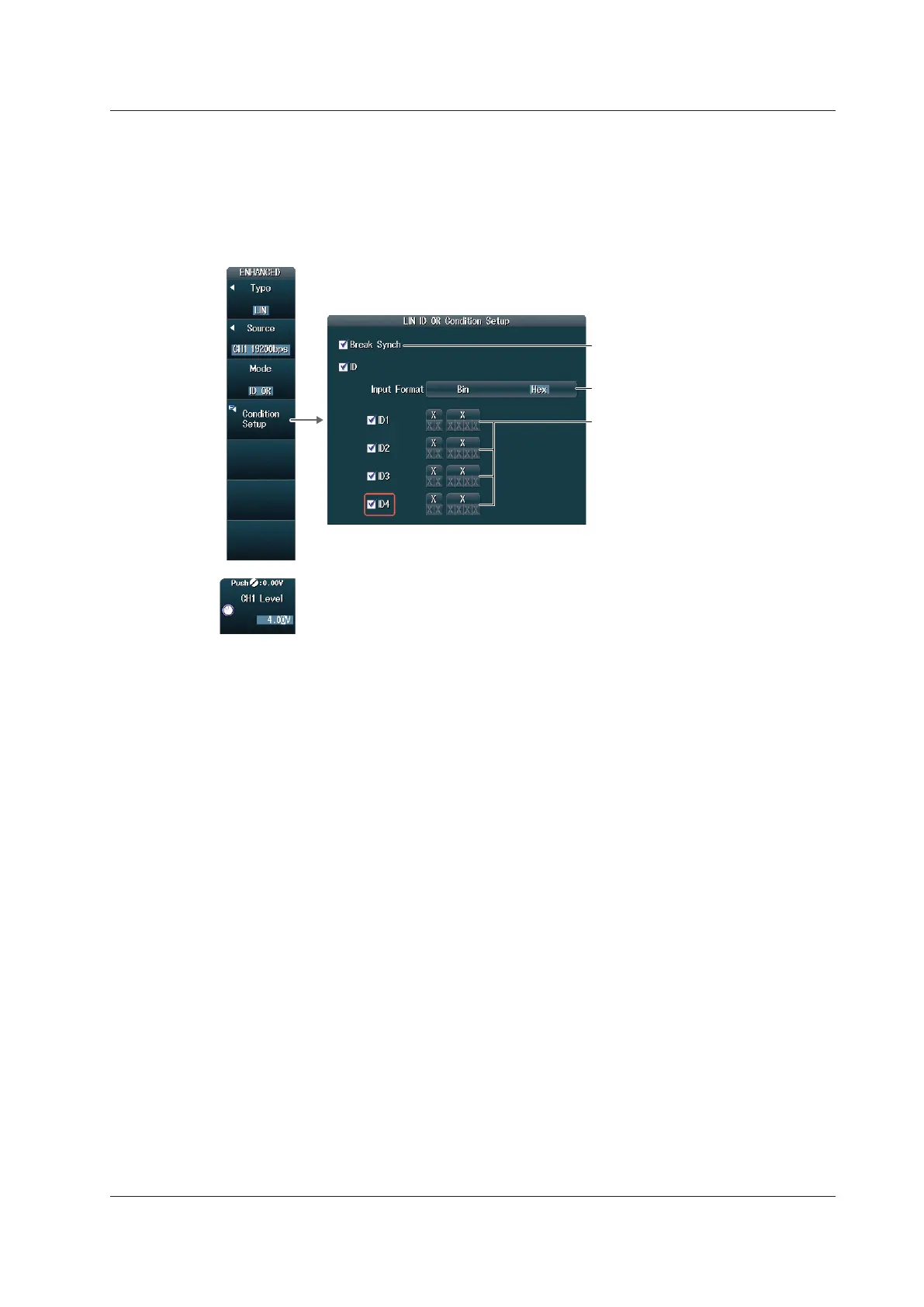

Press the Mode soft key, the ID OR soft key, and then the Condition Setup soft key to display the
following screen.
The DLM4000 triggers on the AND of the Break Synch condition and the condition of one of the four
IDs. Items whose check boxes are selected are used as trigger conditions.
Break Synch
(always selected)
Set the ID input format.
Set the ID bit pattern.
2.12 Triggering on LIN Bus Signals (Option)
