YOKOGAWA DLM4000 Series User Manual

2-32
IM DLM4038-02EN
ID/Data Mode

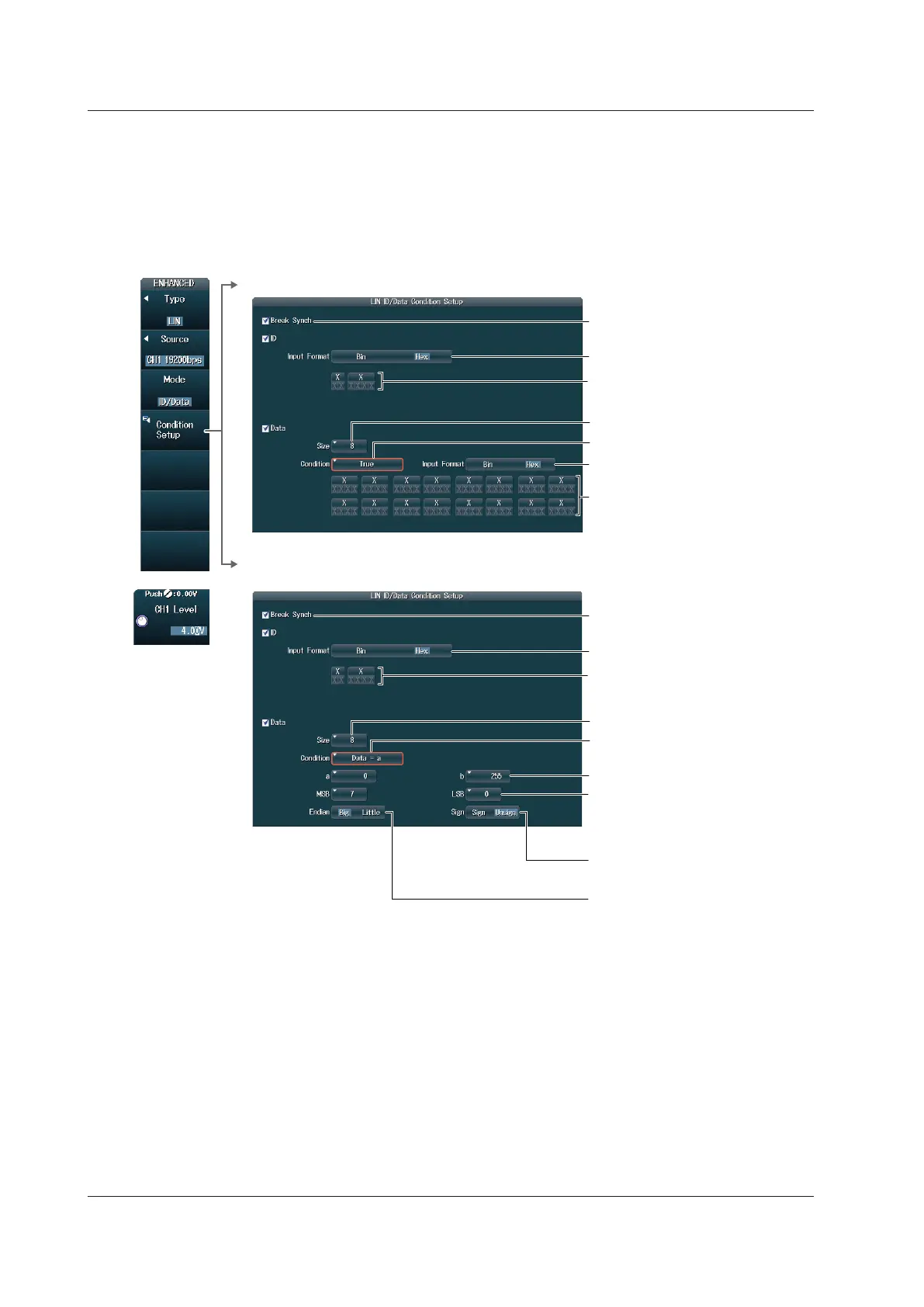

Setting Trigger Conditions (Condition Setup)
Press the Mode soft key, the ID/Data soft key, and then the Condition Setup soft key to display the
following screen.
The DLM4000 triggers on the AND of the Break Synch, ID, and Data conditions. Items whose check
boxes are selected are used as trigger conditions.
• When the Comparison Condition Is True or False
• When the Comparison Condition Is Data = a; Data ≠ a; a ≤ Data;
Data ≤ b; a ≤ Data ≤ b; or Data < a, b < Data
Set the ID input format.
Set the ID bit pattern.
Break Synch (always selected)
Set the data length.
Set the data length.
Set the comparison condition.
Set the data pattern.
Set the data pattern input format.
Break Synch (always selected)
Set data reference values a and b.
Set the ID input format.
Set the ID bit pattern.
Set the comparison condition.
Set the byte order.
Set the bit positions of the most
significant bit (MSB) and the least
significant bit (LSB) in the data that
you will compare.
Set whether to use a signed (Sign) or
unsigned (Unsign) data format.
2.12 Triggering on LIN Bus Signals (Option)
