Searching Waveforms
Configuring Search Skipping (Skip Mode)

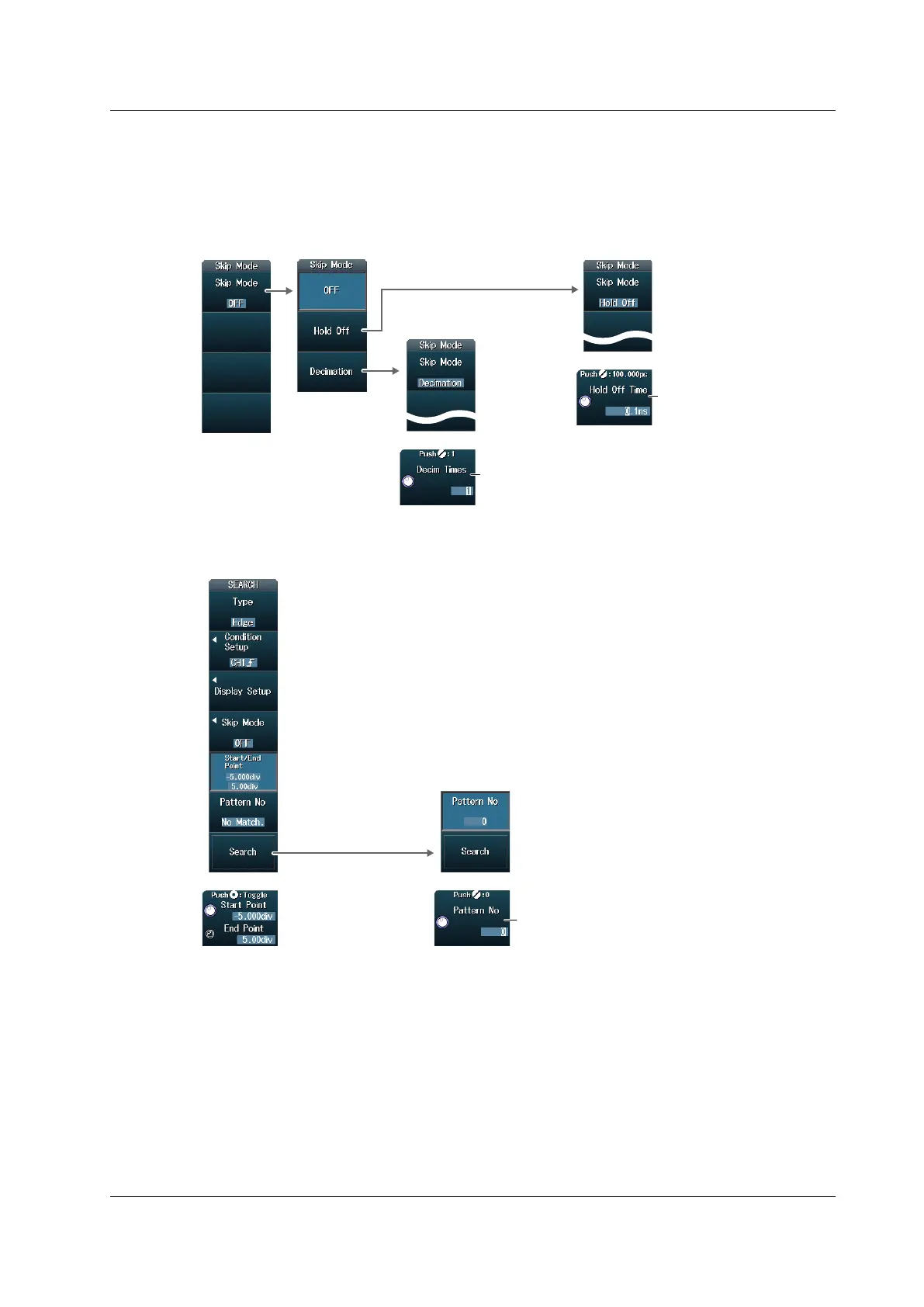

Press the Skip Mode soft key to display the following menu.
After a search condition is met, you can skip the detection of search conditions for the specified
amount of time or the specified number of counts.
(You can specify this setting when the search type is set to Edge or Pulse Width.)
Set the length of time for
which to skip the search
conditions.
Set the number of times to
skip the search conditions.
Configure search skipping. When You Press the Hold Off Soft Key
When You Press the
Decimation Soft Key
Executing a Search (Search)
Press the Search soft key to execute the search.
Executes a search
When a Point That Matches the Specified
Search Conditions Is Found
Set the detected point
number.
Executing Searches
1.
Set the search conditions.
2.
Press the Search soft key.
The DLM4000 searches for the search conditions. If the DLM4000 finds points that match the search
conditions (detected points), it shows numbers (0, 1, 2, etc.) from the left of the waveform display in the
order that the points were detected.
Setting the Detected Point Number
You can set the detected point number and display the waveform for the detected point on the zoom
window.
