11-2
IM DLM4038-02EN
Setting Search Conditions (Condition Setup)
Note
Using the CH8 Terminal and LOGIC(L) Port
When you execute a search, you cannot use the CH8 terminal and LOGIC(L) port as the source at the same
time. Specify the source that you want to use in advance by pressing either the CH8 key or the L key.

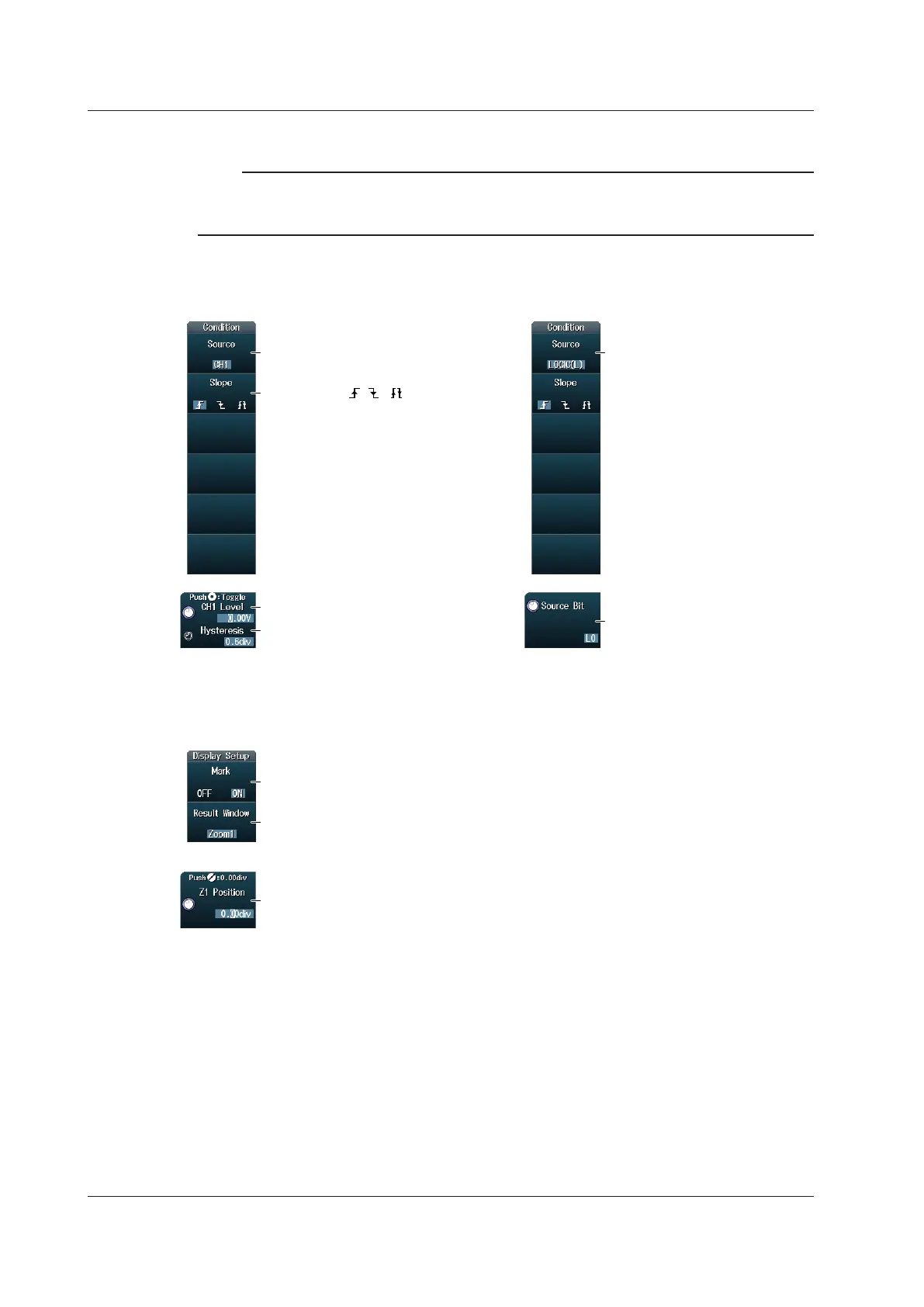

Press the Condition Setup soft key to display one of the menus shown below. The menu that is
displayed varies depending on the specified source.
Set the source.
(CH1 to CH8, Math1 to Math4).
Set the level used to detect source states.
Set the hysteresis.
Set the slope ( , , ).
When the Source is CH1 to CH8 or Math1 to Math4 When the Source Is LOGIC(L) or LOGIC(A|B)*
Set the source (LOGIC(L),
LOGIC(A|B)).
Set the source bit (L0 to L7,
A0 to A7, B0 to B7).*
* LOGIC(A|B), A0 to A7, and B0 to B7 are available on models with the /L16 option.
Setting the Detected Waveform Display (Display Setup)
Press the Display Setup soft key to display the following menu.
Set the zoom window (Zoom1 or Zoom2).
You can configure zoom windows Zoom1 and Zoom2 when they are displayed.
Turn the display of detected point markers on or off.
Set the zoom position.
You can change the zoom position, which is the point on the
waveform that is zoomed in on.
Turning the Display of Detected Point Markers On or Off
You can display marks at the top of the main and zoom windows to clearly show the detected
position on the waveform (the detected point mark). Marks that match detected point numbers are
highlighted.
11.1 Searching for Edges
To Next Page
