YOKOGAWA DLM4000 Series User Manual

1-10
IM DLM4038-02EN
Setting the Display Size (SCALE)
1.
Press L. The SCALE knob now controls the LOGIC(L) channel scale.
• The L key illuminates brightly.
• The LED between the SCALE and POSITION knobs illuminates in the color assigned to the LOGIC(L)
channel (the color around the L key).
2.
Turn the SCALE knob to set the display size.
Setting the Vertical Position ( POSITION knob)
1.
Press L. The POSITION knob now controls the LOGIC(L) setting.
• The L key illuminates brightly.
• The LED between the SCALE and POSITION knobs illuminates in the color assigned to the LOGIC(L)
channel (the color around the L key).
2.
Turn the
POSITION knob to set the vertical position.

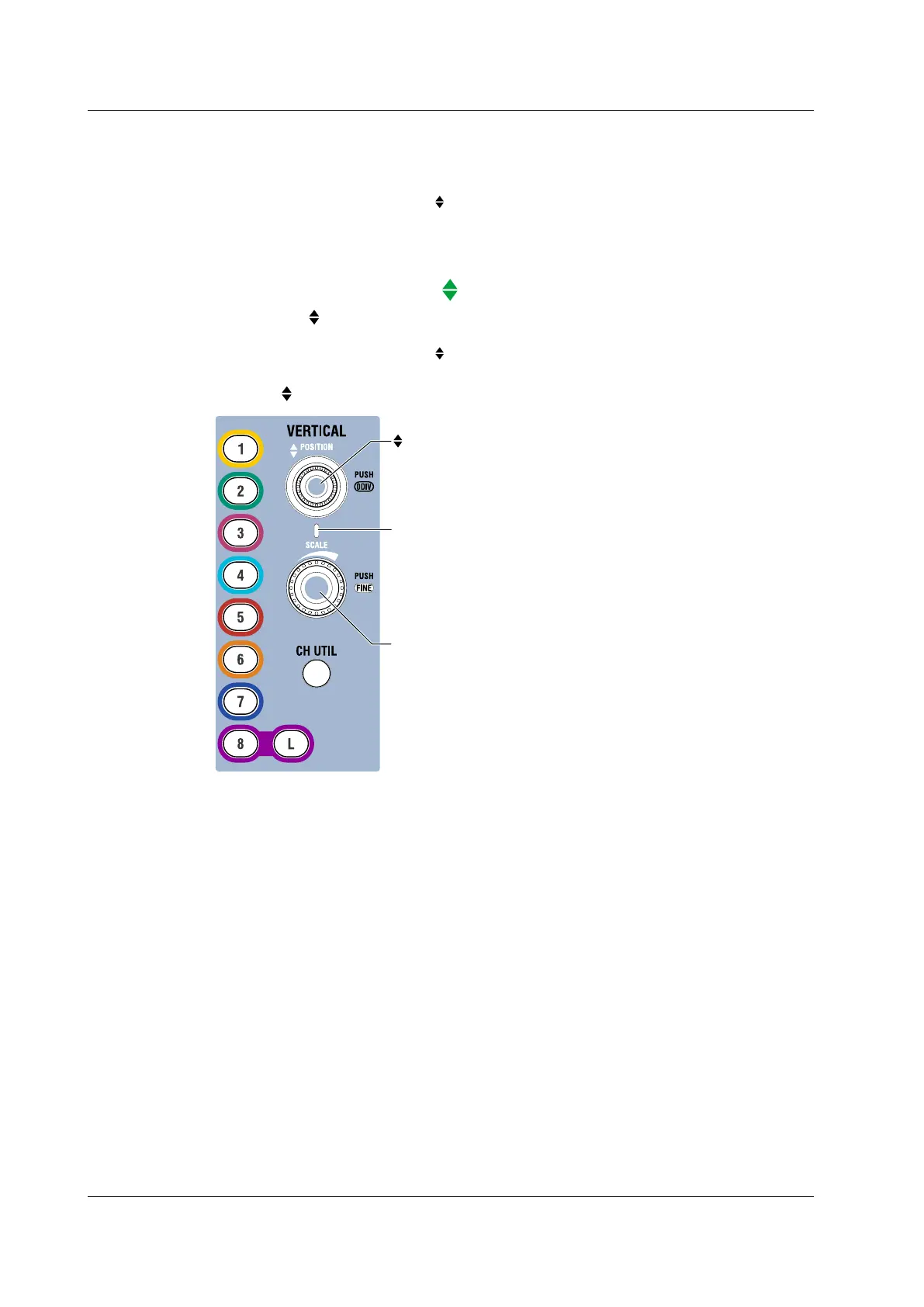

Illuminates in the color assigned to the LOGIC(L) channel
POSITION knob
SCALE knob
1.2 Setting the Vertical Axis for 8-bit LOGIC(L)
