Error Mode

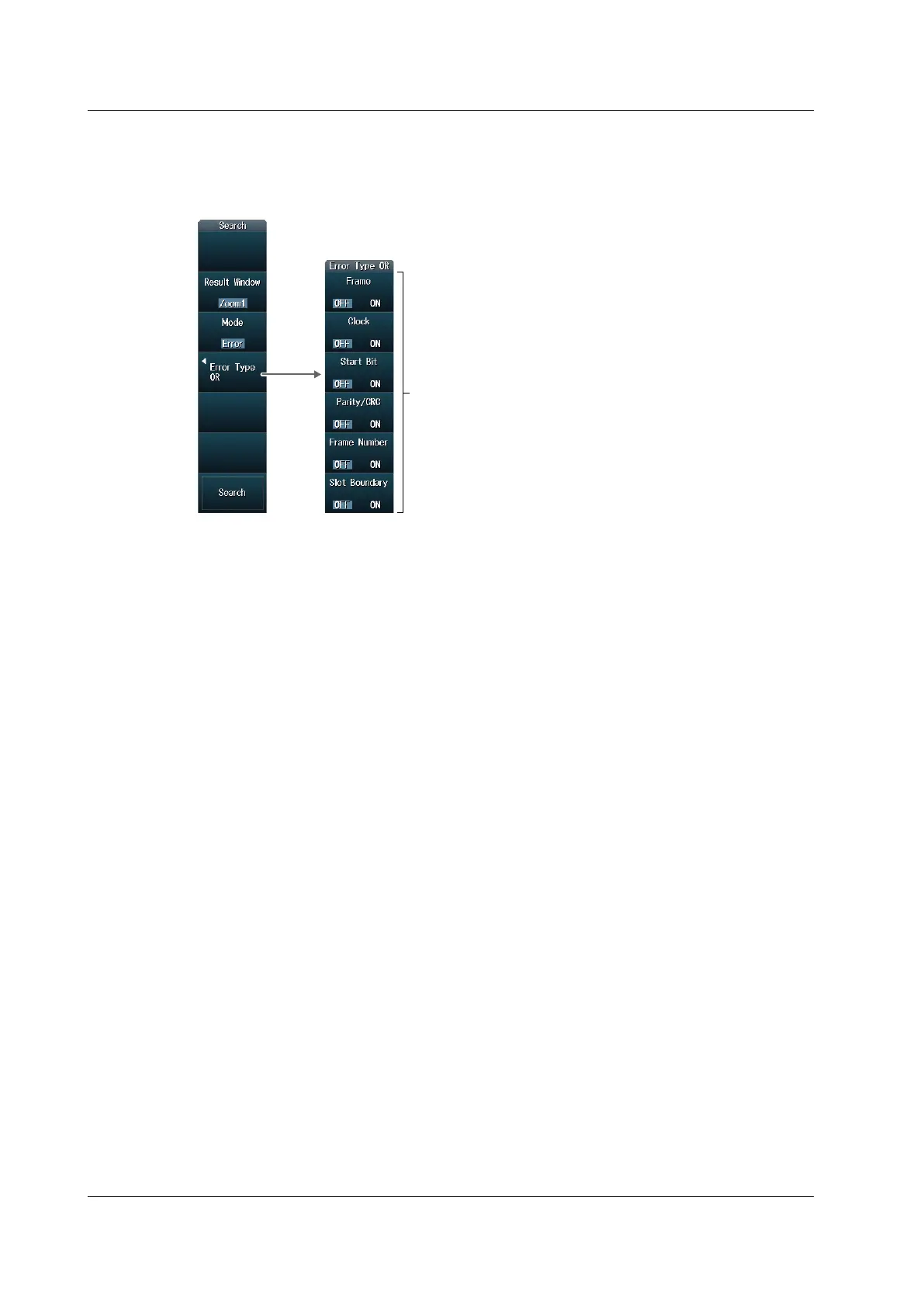

Press the Mode soft key, the Error soft key, and then the Error Type OR soft key to display the
following menu.
The DLM4000 searches for various errors that are set to ON.
Turn on or off the detection of Frame, Clock, Start Bit,
Parity/CRC, Frame Number, and Slot Boundary errors
Executing Searches
1.
Set the search type.
2.
Press the Search soft key.
The DLM4000 searches for the search conditions. If the DLM4000 finds points that match the search
conditions (detected points), it shows numbers (0, 1, 2, etc.) from the left of the waveform display in the
order that the points were detected.
Setting the Detected Point Numbers
After setting the detected point number, you can display the waveform for the corresponding detected
point on the zoom window.
Setting the Zoom Position
You can change the zoom position, which is the point on the waveform that is zoomed in on.
12.7 Analyzing and Searching PSI5 Airbag Signals (Option)
