YOKOGAWA DLM4000 Series User Manual

12-37
IM DLM4038-02EN
Data Mode

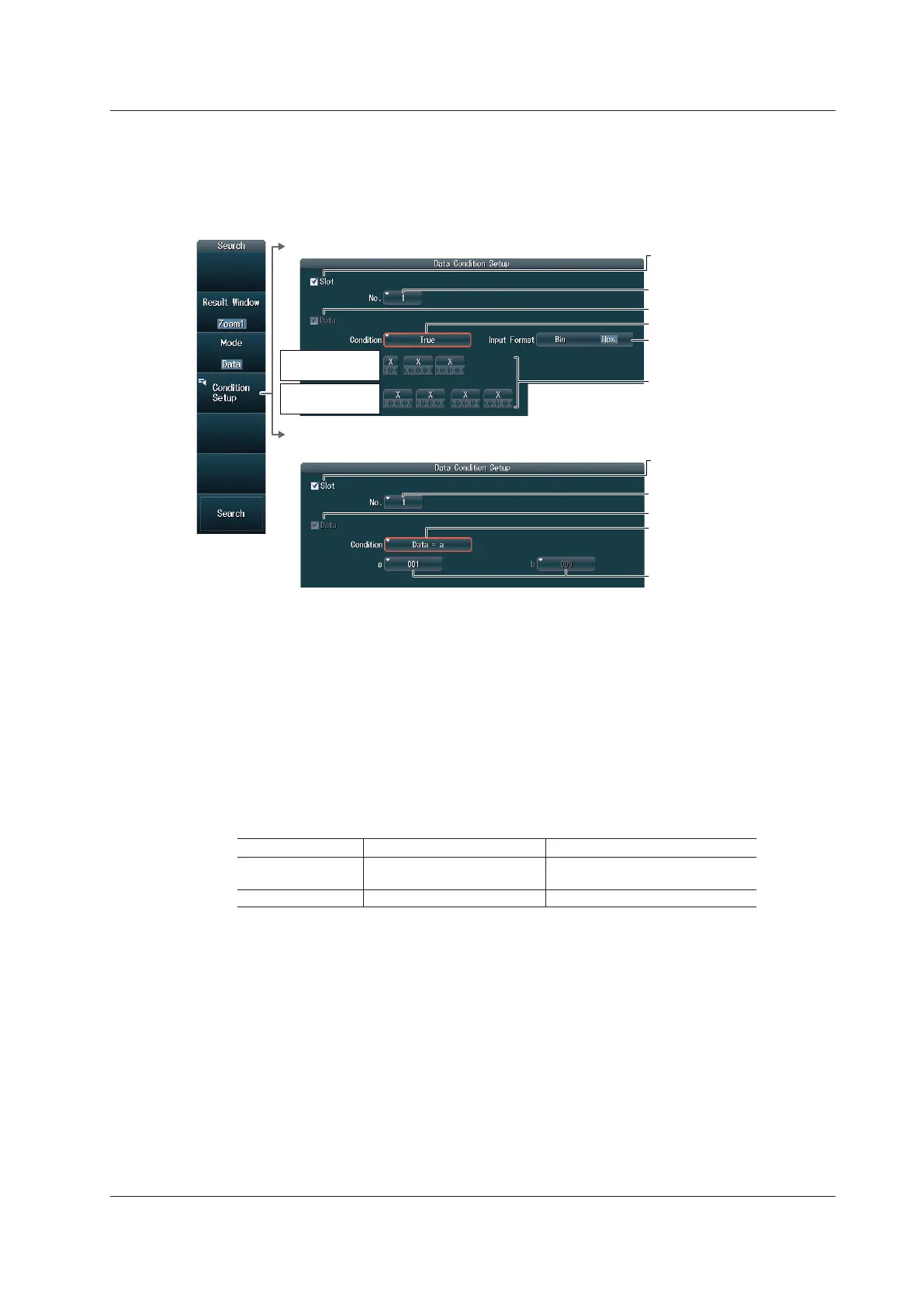

Press the Mode soft key, the Data soft key, and then the Condition Setup soft key to display the
following screen.
The DLM4000 searches on the AND of slot and data conditions. Items whose check boxes are
selected are used as search conditions.
• When the Comparison Condition Is True or False
• When the Comparison Condition Is Data = a; Data ≠ a; a ≤ Data; Data ≤ b; a ≤
Data ≤ b; or Data < a, b < Data
Set the data pattern input
format.
Set the data pattern.
Set the comparison condition.
Data (always selected)
Clear the check box to remove
from search conditions.
Select the slot number.
Clear the check box to remove
from search conditions.
Select the slot number.
Set reference values a and b.
Set the comparison condition.
Data (always selected)
When data
length* is 10bit
When data
length* is 16bit
* See “Manual Setup” on page 12-33.
• Selecting the Slot Number
• When the number of slots on the Setup menu is set to a number from 1 to 6
*
1 to N
where N is the specified number of slots
• When the number of slots on the Setup menu is set to Auto
*
1 to 6
* See “Manual Setup” on page 12-33.
• Setting Reference Values a and b
Data length* 10bit 16bit
Decode display
setting
Hex, Bin Dec Hex, Bin Dec
Selectable range 200 to 1FF –512 to 511 8000 to 7FFF –32768 to 32767
* See “Manual Setup” on page 12-33.
12.7 Analyzing and Searching PSI5 Airbag Signals (Option)
