ID OR Mode (ID OR)
Setting Trigger Conditions (Condition Setup)

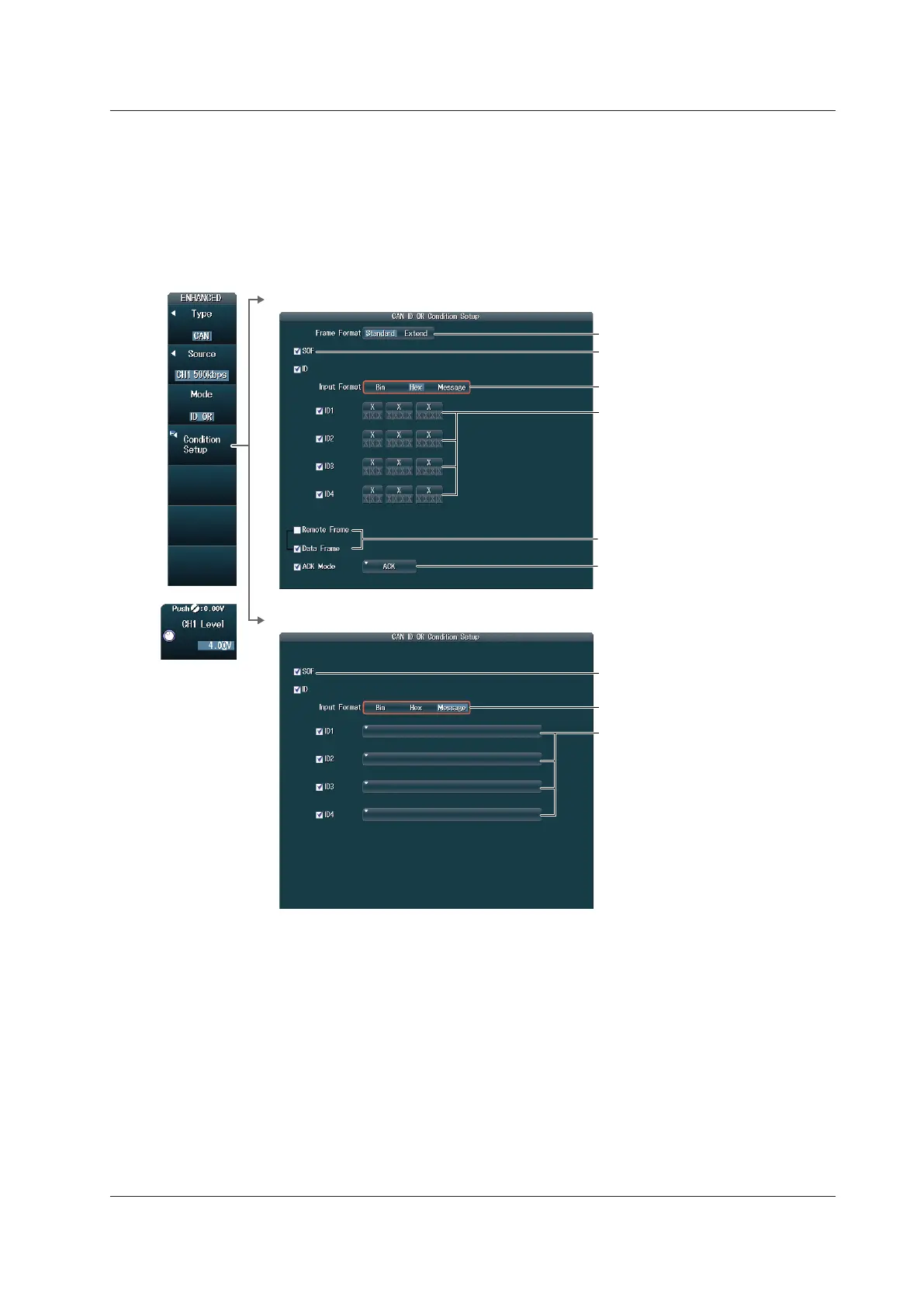

Press the Mode soft key, the ID OR soft key, and then the Condition Setup soft key to display the
following screen.
The DLM4000 triggers on the AND of the SOF, frame type (Remote Frame or Data Frame), and
ACK conditions and of the condition of one of the four IDs. Items whose check boxes are selected
are used as trigger conditions.
• When ID Input Format Is Bin or Hex
• When ID Input Format Is Message
Set the ACK slot state.
Set the trigger source frame.
Set the ID input format (Bin, Hex).
SOF (always selected)
Set the frame format.
Set the ID bit pattern.
If you select Extend for the frame format,
29 bits are displayed here.
Set the ID input format (Message).
SOF (always selected)
Select IDs from the list of messages
loaded from the physical value/symbol
definition file (.sbl).
2.10 Triggering on CAN Bus Signals (Option)
