Wakeup/Sleep Mode

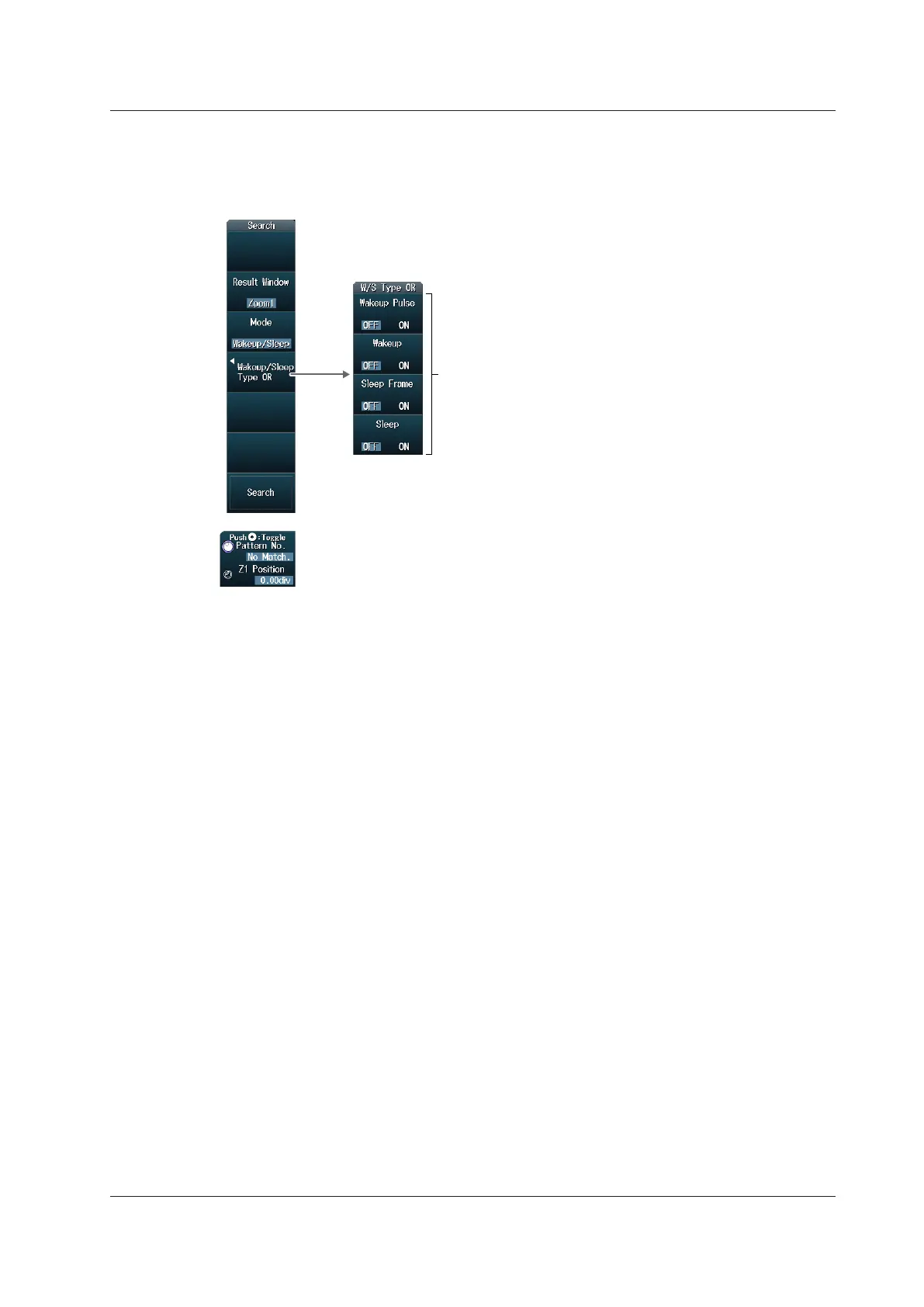

Press the Mode soft key, the Wakeup/Sleep soft key, and then the Wakeup/Sleep Type OR soft
key to display the following menu.
The DLM4000 searches for wakeup pulses, wakeup states, sleep frames, or sleep states.
Turn on or off the detection of wakeup pulses, wakeup
states, sleep frames, or sleep states.
Executing Searches
1.
Set the search type.
2.
Press the Search soft key.
The DLM4000 searches for the search conditions. If the DLM4000 finds points that match the search
conditions (detected points), it shows numbers (0, 1, 2, etc.) from the left of the waveform display in the
order that the points were detected.
Setting the Detected Point Numbers
You can set the detected point number and display the waveform for the detected point on the zoom
window.
Setting the Zoom Position
You can change the zoom position, which is the point on the waveform that is zoomed in on.
