YOKOGAWA DLM4000 Series User Manual

12-22
IM DLM4038-02EN
ID/Data Mode

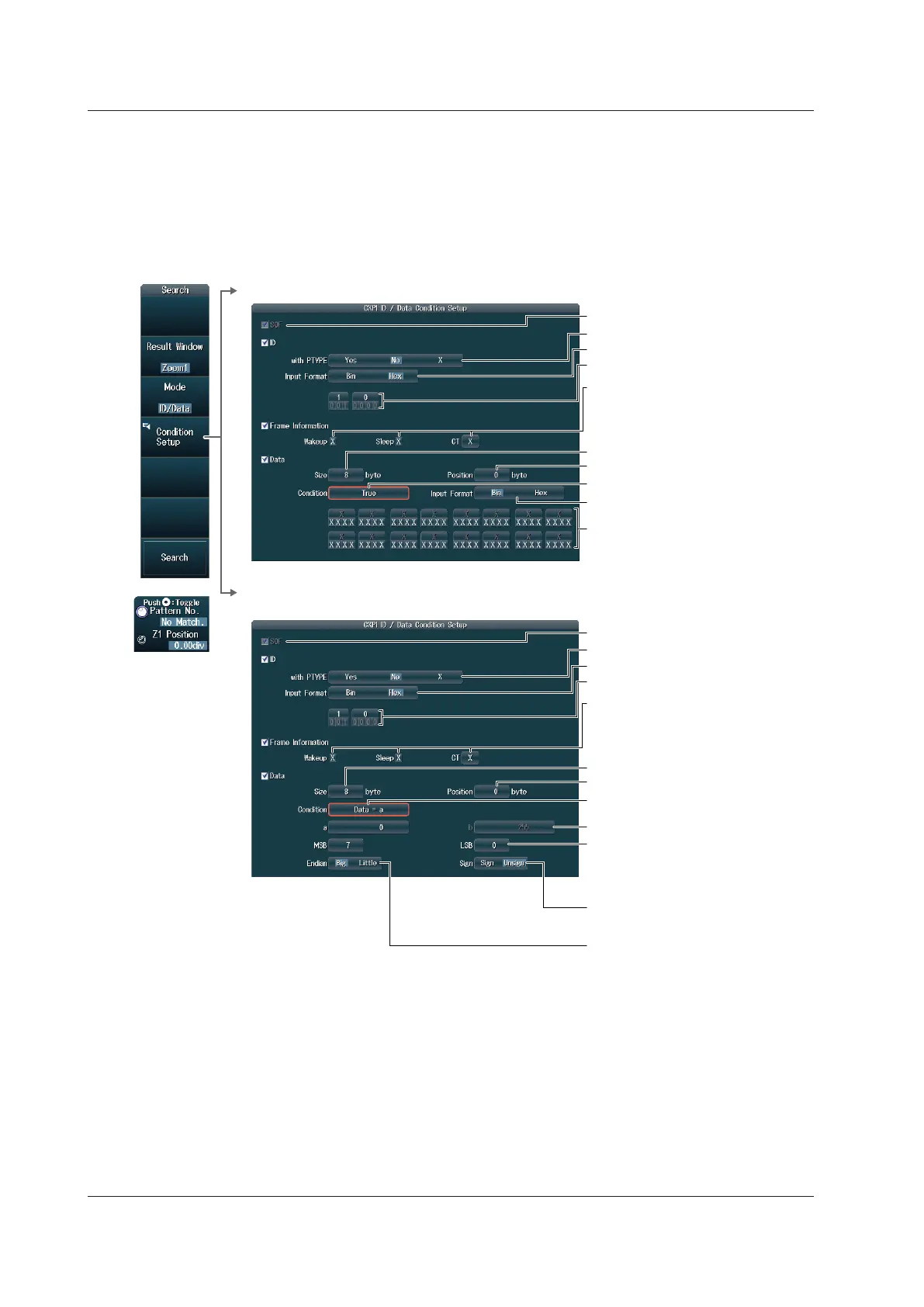

Setting Search Conditions (Condition Setup)
Press the Mode soft key, the ID/Data soft key, and then the Condition Setup soft key to display the
following screen.
The DLM4000 searches on the AND of SOF, ID, frame information, and data conditions. Items
whose check boxes are selected are used as search conditions.
When PTYPE is set to No, the ID bit pattern cannot be set to 0.
Set the PTYPE.
Set the ID input format.
SOF (always selected)
Set the comparison size.
Set the comparison condition.
Set the comparison start position.
Set frame information.
• Wakeup (0, 1, X)
• Sleep (0, 1, X)
• CT (0 to 3, X)
Set the data pattern.
Set the data pattern input format.
Set the ID bit pattern.
Set the PTYPE.
Set the ID input format.
SOF (always selected)
Set the comparison size.
Set the comparison condition.
Set the comparison start position.
Set frame information.
• Wakeup (0, 1, X)
• Sleep (0, 1, X)
• CT (0 to 3, X)
Set the ID bit pattern.
Set the byte order.
Set whether to use a signed (Sign) or
unsigned (Unsign) data format.
Set the bit positions of the most
significant bit (MSB) and the least
significant bit (LSB) in the data that
you will compare.
Set reference values a and b.
• When the Comparison Condition Is True or False
• When the Comparison Condition Is Data = a; Data ≠ a; a ≤ Data; Data ≤ b; a ≤ Data ≤ b; or
Data < a, b < Data
12.5 Analyzing and Searching CXPI Bus Signals (Option)
