2-62
IM DLM4038-02EN
HDTV

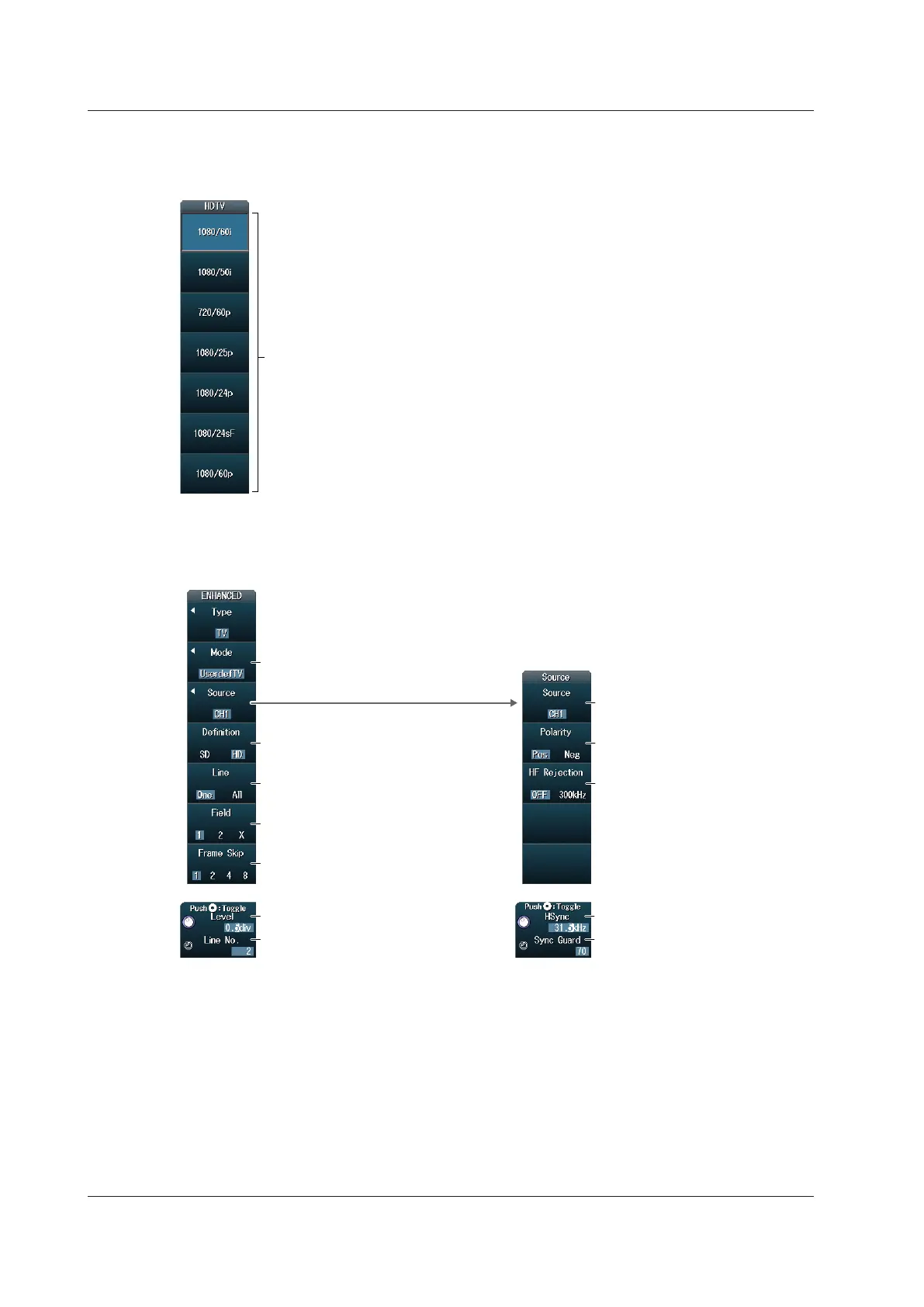

Press the Mode soft key and then the HDTV soft key to display the following menu.
The DLM4000 triggers using the specified field and line of the HDTV signal as trigger conditions.
Set the video format (effective number of scan lines/frame rate:
1080/60i, 1080/50i, 720/60p, 1080/25p, 1080/24p, 1080/24sF, or 1080/60p).
UserdefTV
Press the Mode soft key and then the UserdefTV soft key to display the following menu.
The DLM4000 triggers using the user-defined field and line as trigger conditions.
Set the HF rejection (OFF, 300 kHz).
Set the horizontal sync frequency.
Set the source (CH1 to CH8).
Set the polarity (Pos, Neg).
Set the sync guard frequency as a
percentage of the horizontal sync
frequency.
Set the line number (One, All).
Set the broadcasting system to
UserdefTV.
Set the definition (SD, HD).
Set the level used to detect source states.
Set the line number.
1
Set the source.
Set the field number (1, 2, X).
1
Set the frame skip (1, 2, 4, 8).
1
1 You can set this when the line number is set to One.
2.19 Triggering on a TV Trigger
