A -> B(N)

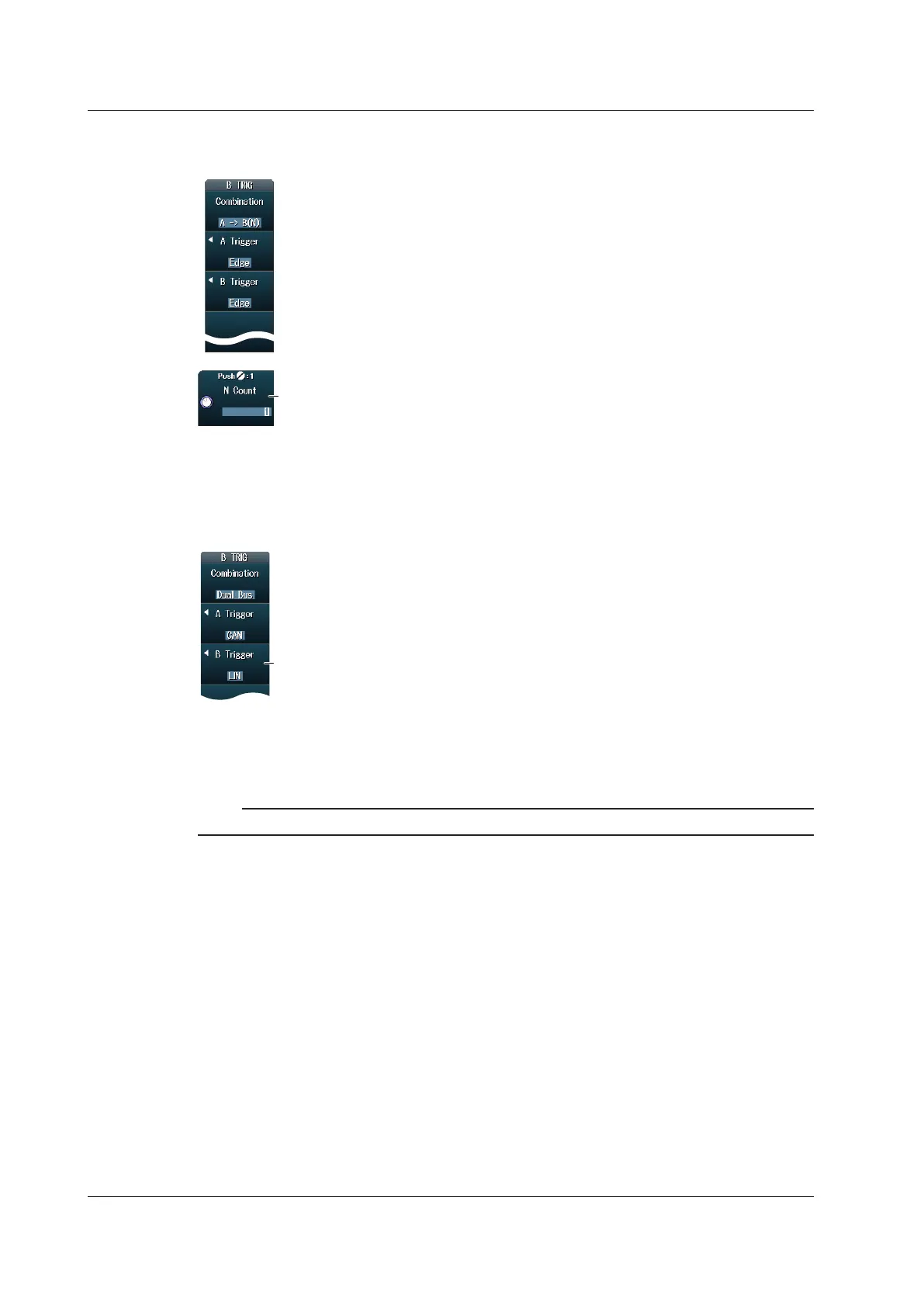

Press the Combination soft key and then the A -> B(N) soft key to display the following menu.
Set the number of times condition B must be met.
After the trigger A conditions are met, the DLM4000 triggers when the trigger B conditions are met
N times.
Dual Bus
Press the Combination soft key and then the Dual Bus soft key to display the following menu.
Set trigger B.
If you specify a serial bus trigger (excluding PSI5 Airbag) for condition A and
anything other than a serial bus trigger for condition B and then set
Combination to Dual Bus, condition B is changed to serial bus trigger.
Of the serial bus triggers that can be used and are displayed on the menu,
condition B will change to the top most serial bus trigger.
The DLM4000 triggers when the serial bus trigger A or B conditions are met.
Note
You can select Dual Bus when condition A is a serial bus trigger (excluding PSI5 Airbag).
2.20 Triggering on Combination Triggers (B TRIG)
