108 ZXP Series 9 Card Printer Service Manual P1086708-001
Theory of Operation
Printing Technologies and Ribbons

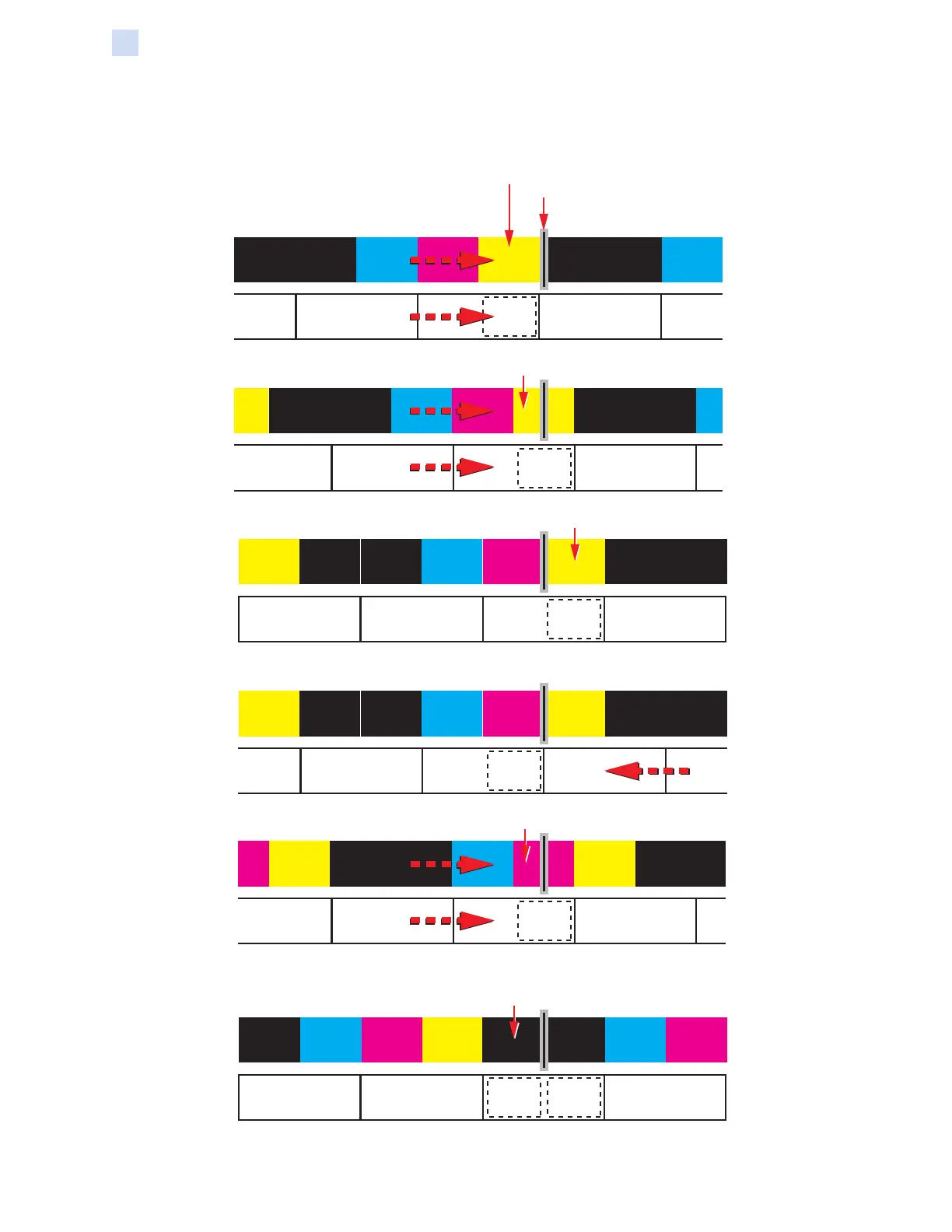

The following gure shows how the YMCKK ribbon and transfer lm move relative to each other
during printing.
Printhead in fixed position
Color Ribbon
Transfer Film
1. Transfer film and ribbon are positioned to print the front-side image.
2. Transfer film and ribbon move together as the yellow panel is printed.
6. Similarly, the cyan and black panels are printed.
7. Transfer film and ribbon are positioned to print the back-side image.
3. Transfer film and ribbon stop at the end of the yellow panel.
4. Transfer film moves back into position at the printhead.
5. Transfer film and ribbon move together as the magenta panel is printed.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
