288 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Printhead Power Cable
Printhead Power Cable
For replacement, use Kit C/A Printhead Power 105936G-040. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

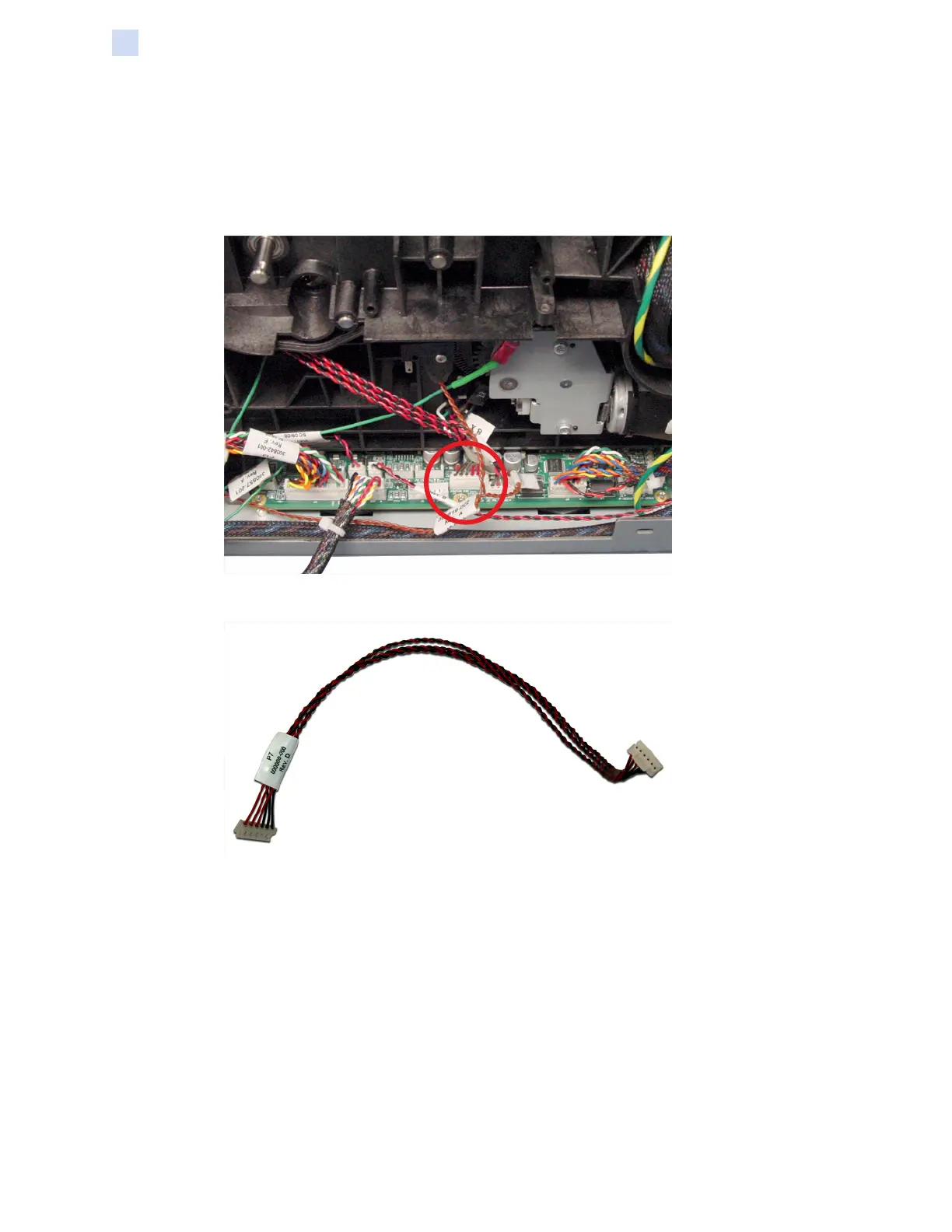

Step 1. Disconnect P7 from J7, PRNTHD PWR, (circled below).
Step 2. Remove the printhead power cable assembly.
