P1086708-001 ZXP Series 9 Card Printer Service Manual 365
Replacement Procedures for the Laminator
Procedures: Motor and Plate Assembly
Motor and Plate Assembly
For replacement, use Kit Motor 17PM ZXP 105936G-511. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

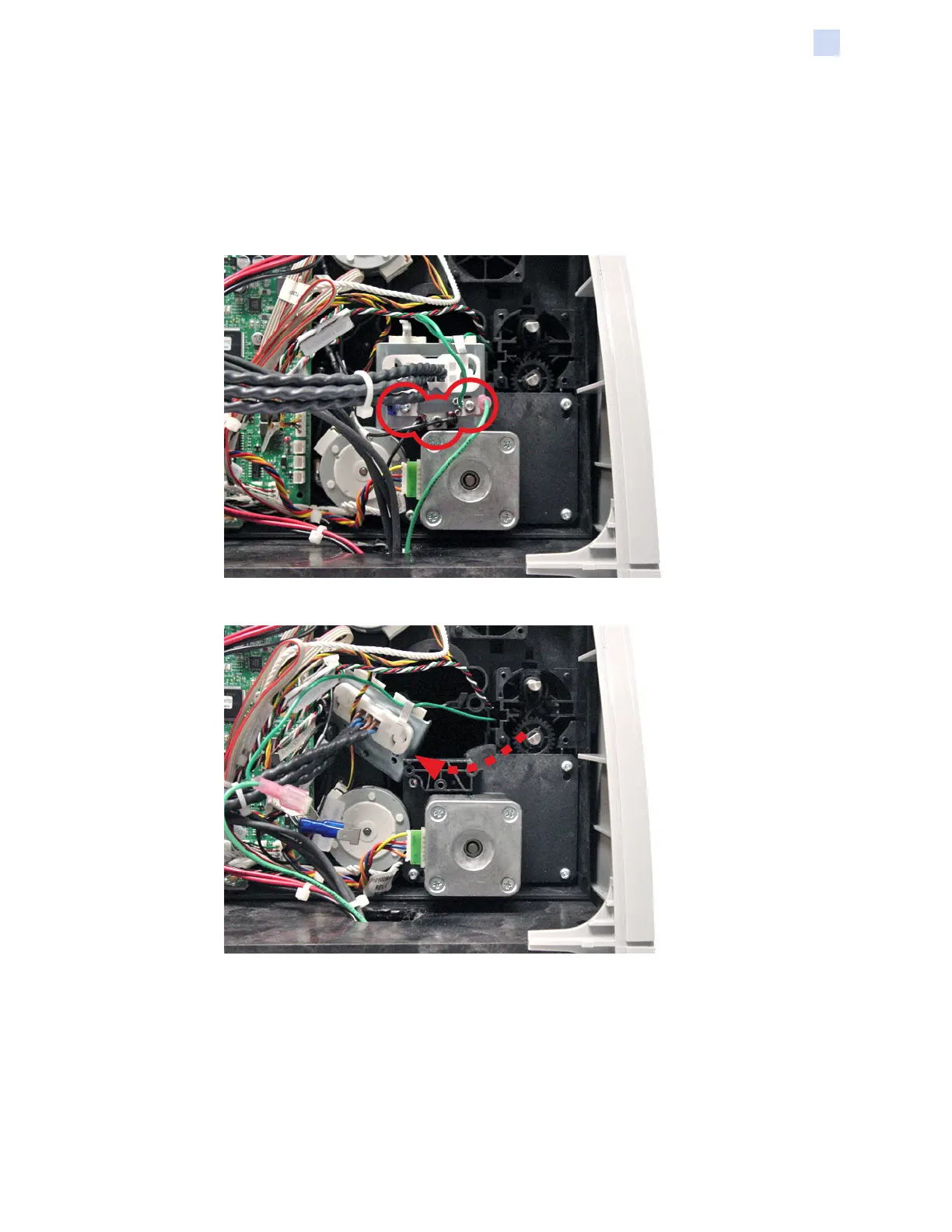

Step 1. With a TORX T10 driver, remove the three screws (circled below) holding the bracket
to the frame.
Step 2. Move the bracket out of the way.
