364 ZXP Series 9 Card Printer Service Manual P1086708-001

Replacement Procedures for the Laminator

Procedures: 24V Heater Fans

Intake Fan (Lower)

For replacement, use Kit Assy Fan 24V 105936G-503. Contact Zebra Customer Service at

+01 877-275-9327 for ordering information.

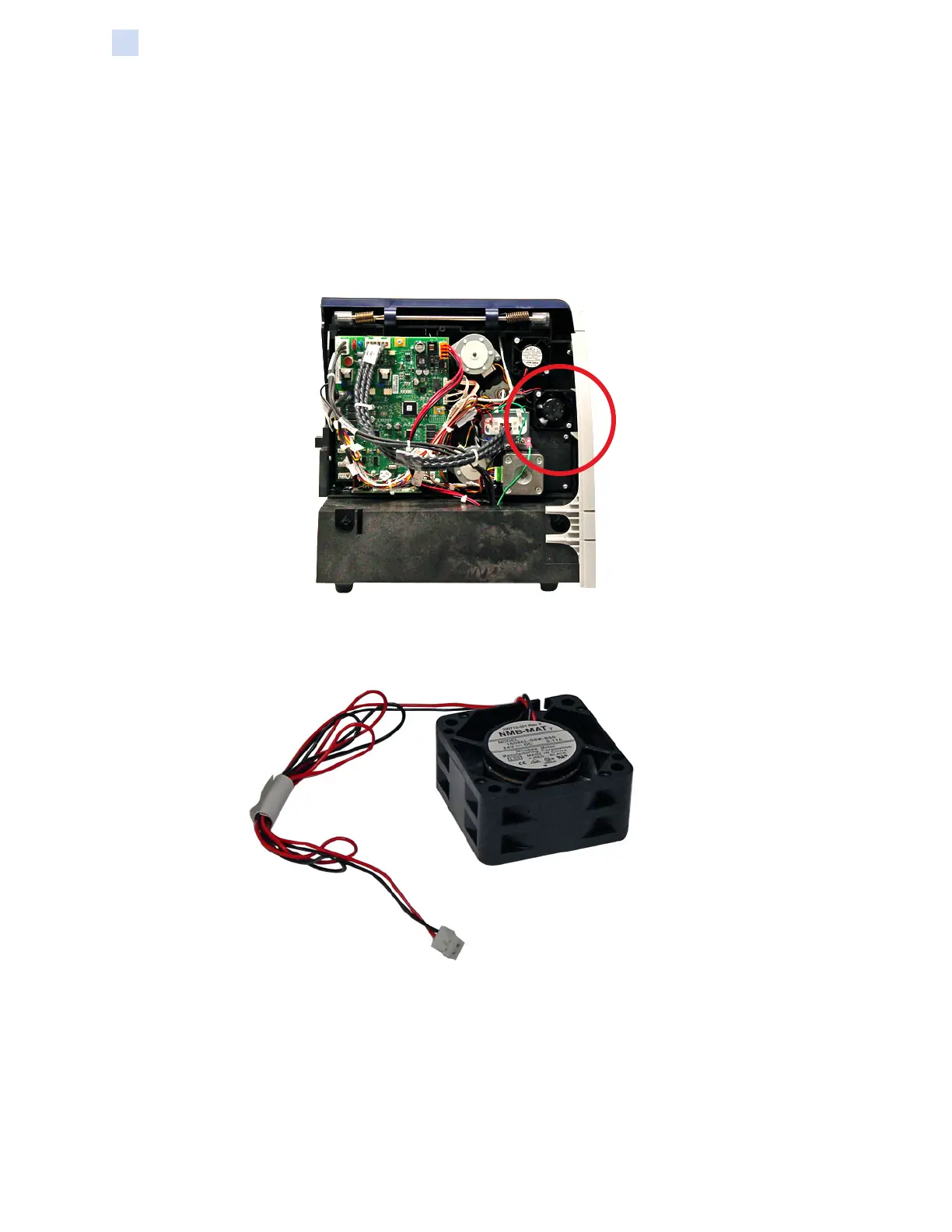

Step 1. Cut the associated zip ties, disconnect the fan plug from the laminator controller

PCBA (J12). With a TORX T10 driver, remove the two screws holding the exhaust

fan (circled below) in place. Note the orientation of the fan.

Step 2. With a TORX T10 driver, remove the two screws holding the exhaust fan (circled

below) in place. Note the orientation of the fan.
