P1086708-001 ZXP Series 9 Card Printer Service Manual 15

Setup

Installing the Cleaning Cartridge

The card cleaning cartridge (X-Cleaning Roller) cleans the cards entering the printer through the

input hopper. The cleaning cartridge consists of a cartridge frame and an adhesive roller.

Step 1. While holding the cleaning cartridge by the frame, peel the protective wrapper from

the adhesive roller. Do not touch the adhesive surface of the roller.

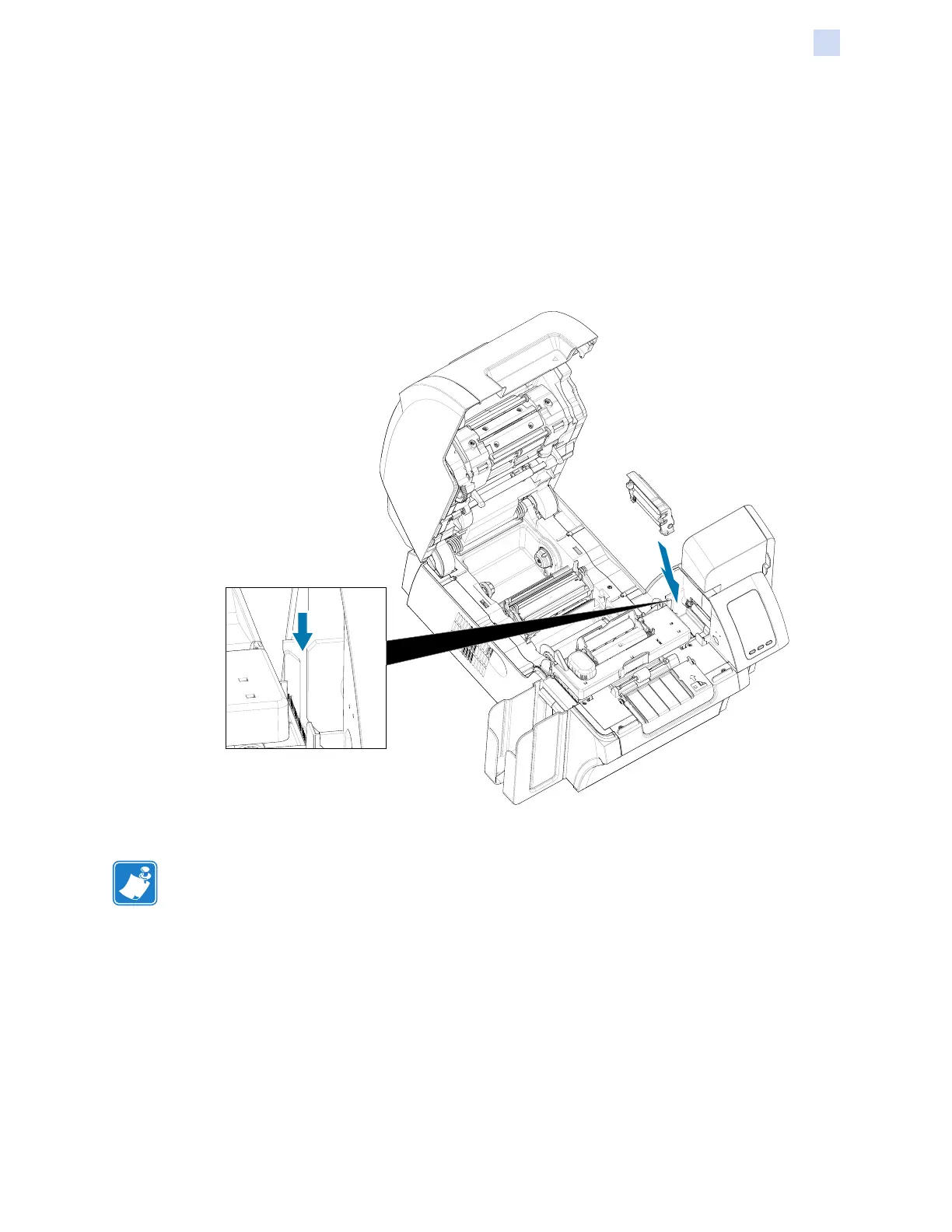

Step 2. Install the cleaning cartridge into the area shown in the gure below by sliding the

cartridge guide pins into the guide slots on the printer.

Step 3. Press down on the cartridge until it is fully seated.

Note • To ensure print quality, the card cleaning cartridge requires periodic replacement.

New card cleaning rollers are included with each print ribbon or may be purchased

separately. Before replacing the card cleaning cartridge or its adhesive roller, clean

the printer (see “Cleaning the Printer” on page 118). To replace the X-Roller, refer to

“Replacing the Cleaning Rollers” on page 62.
