P1086708-001 ZXP Series 9 Card Printer Service Manual 235

Replacement Procedures for the Printer

Procedures: Left Side Cover

Left Side Cover

For replacement, use Kit Side Enclosures (L & R) 105936G-372. Contact Zebra Customer Service

at +01 877-275-9327 for ordering information.

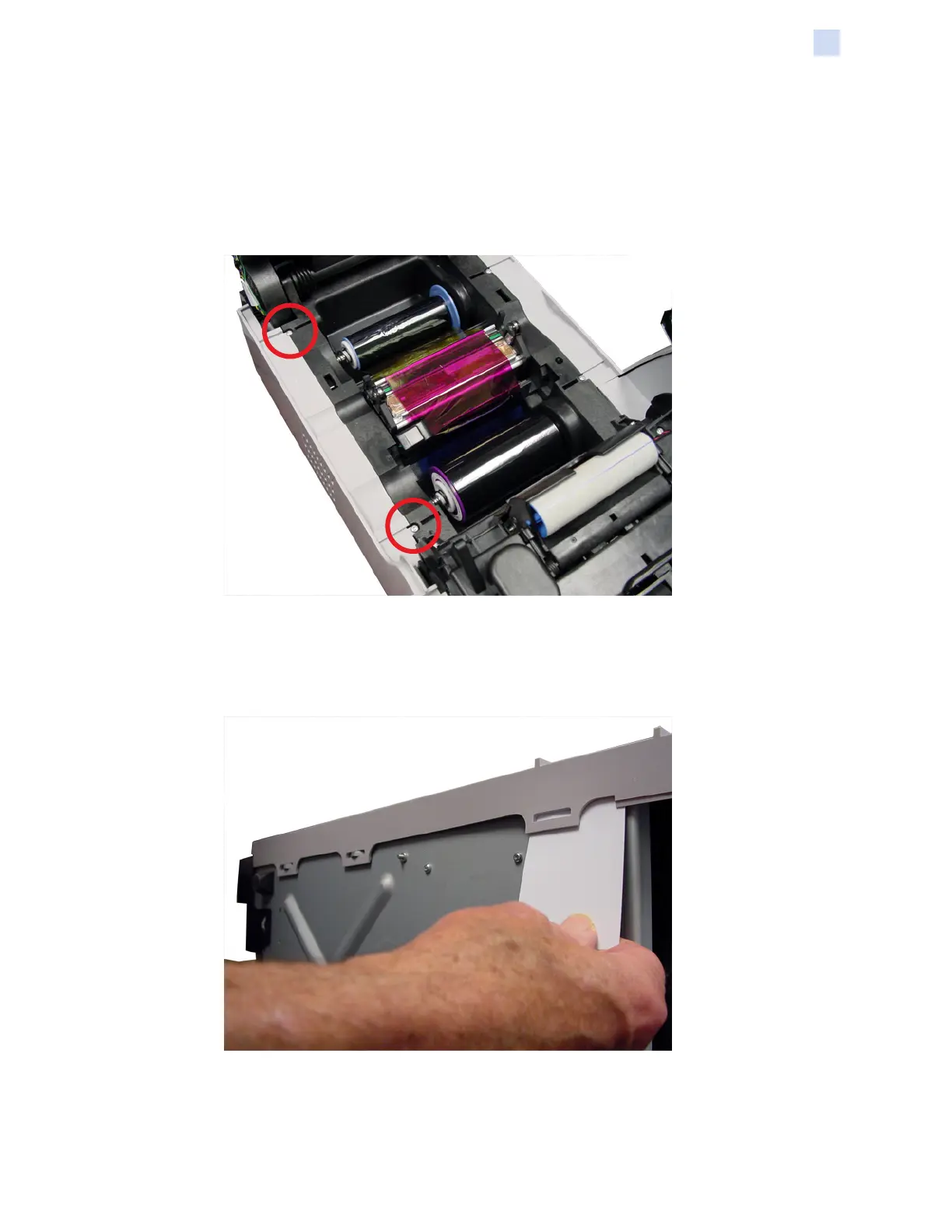

Step 1. With a TORX T10 driver, remove the two screws (circled below) holding the left side

cover in place.

Step 2. Set the printer on its right side.

Step 3. Lift the locking tab and slide a card under the lip of the front bezel to release. Leave

the card in place and release the other locking tab. Do not use a screwdriver as

damage may occur to the main PCBA.

Step 4. Carefully remove the left side cover.
