390 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Top Thermopile Cable
Top Thermopile Cable
For replacement, use Kit CBL ASY LAM Thermopile Top 105936G-530. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Step 1. Remove the Top Thermopile (see “Thermopiles (Top & Bottom)” on page 386).

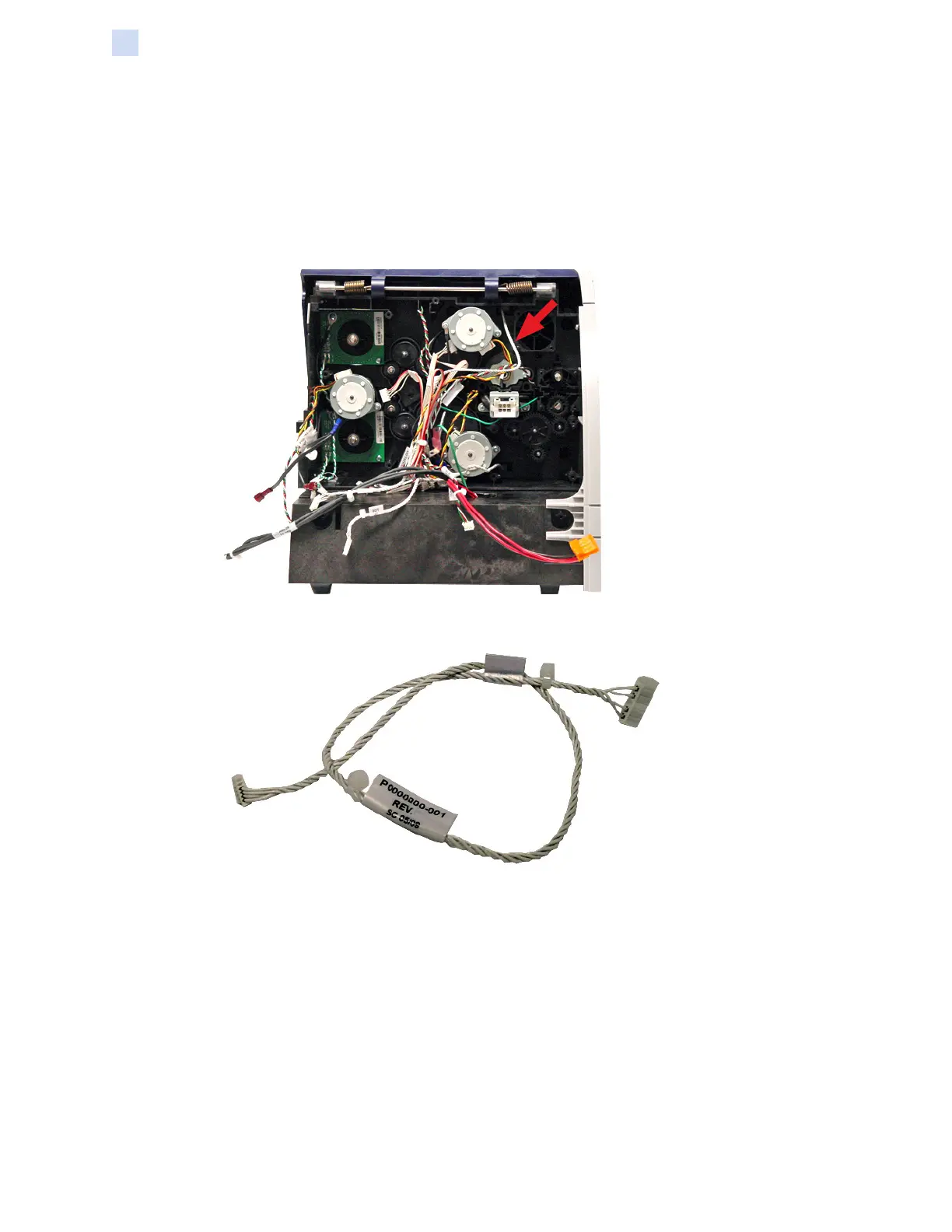

Step 2. Locate the top thermopile cable (arrow below).
Step 3. Carefully slide the top thermopile cable out of the Laminator.
