386 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Thermopiles (Top & Bottom)
Thermopiles (Top & Bottom)
Top Thermopile
For replacement, use Kit Module Thermopile 105936G-518. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

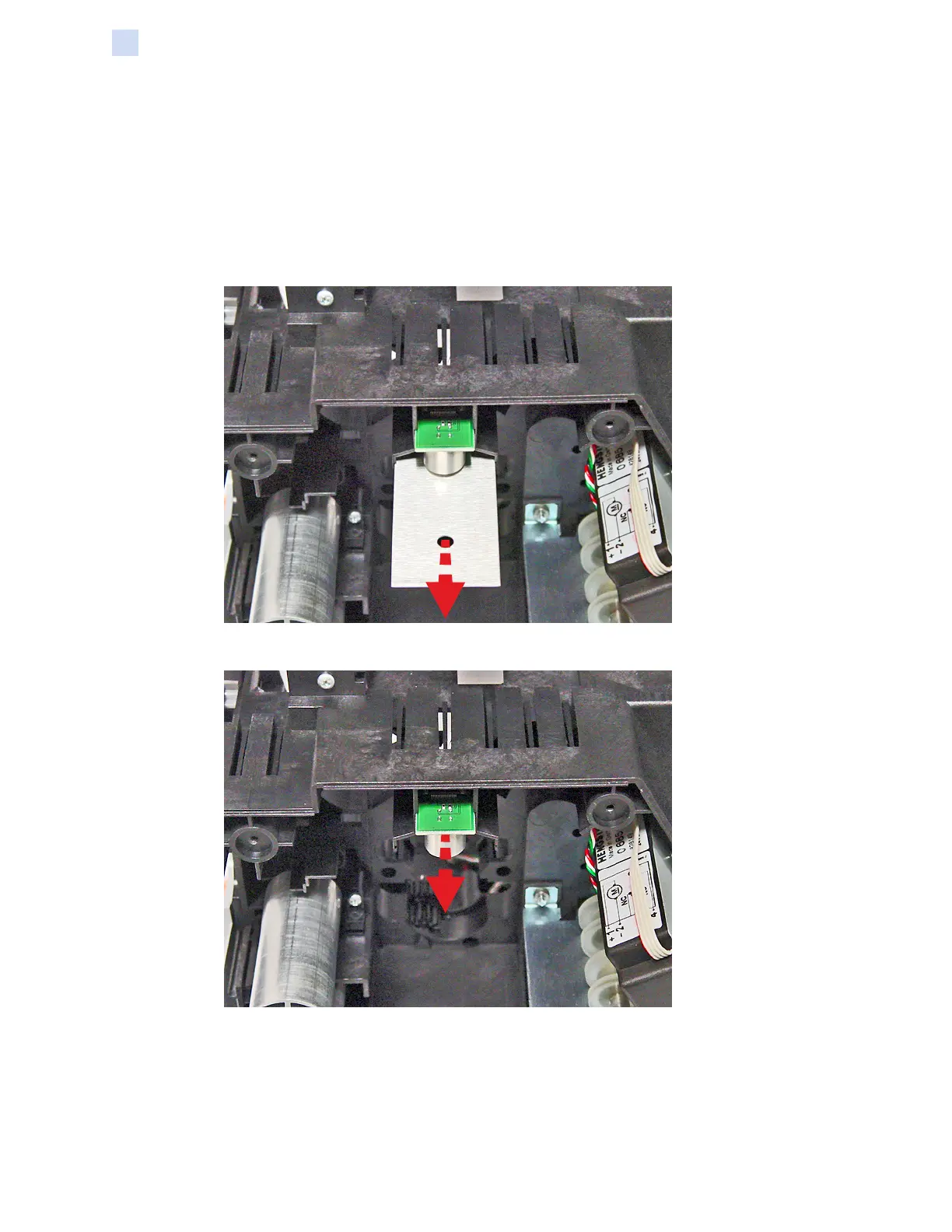

Step 1. Slide out the metal plate.
Step 2. Slide out the thermopile.
