140 ZXP Series 9 Card Printer Service Manual P1086708-001
Troubleshooting
Clearing a Card Jam
Step 4. Turn the manual advance wheel next to the transfer station. Continue turning until the
wheel stops or the card has been ejected sufciently enough to remove it.
Caution • Card may be hot.
CARD
CARD
Laminator
A card jam in the laminator will normally occur along the lamination path.
Step 1. Open the laminator.

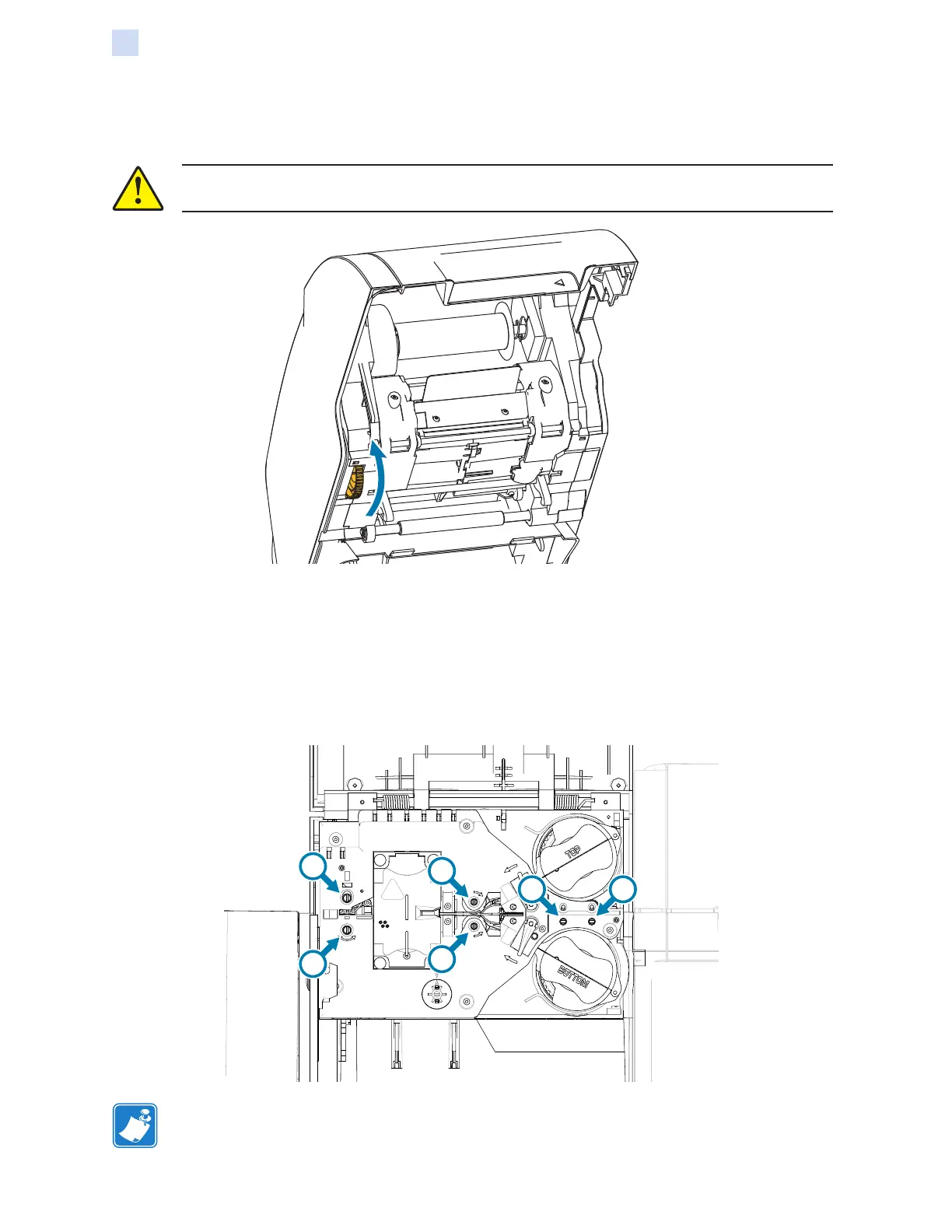

There are three areas along the lamination path and six rollers that can be manually
advanced if a card is stuck.
1
6
4
3
5
2
Note • For rollers 1 through 4, use the narrow side of the manual advance tool; for rollers 5
and 6, use the wider side of the manual advance tool.
