Replacement Procedures for the Laminator
Procedures: Staging Motor

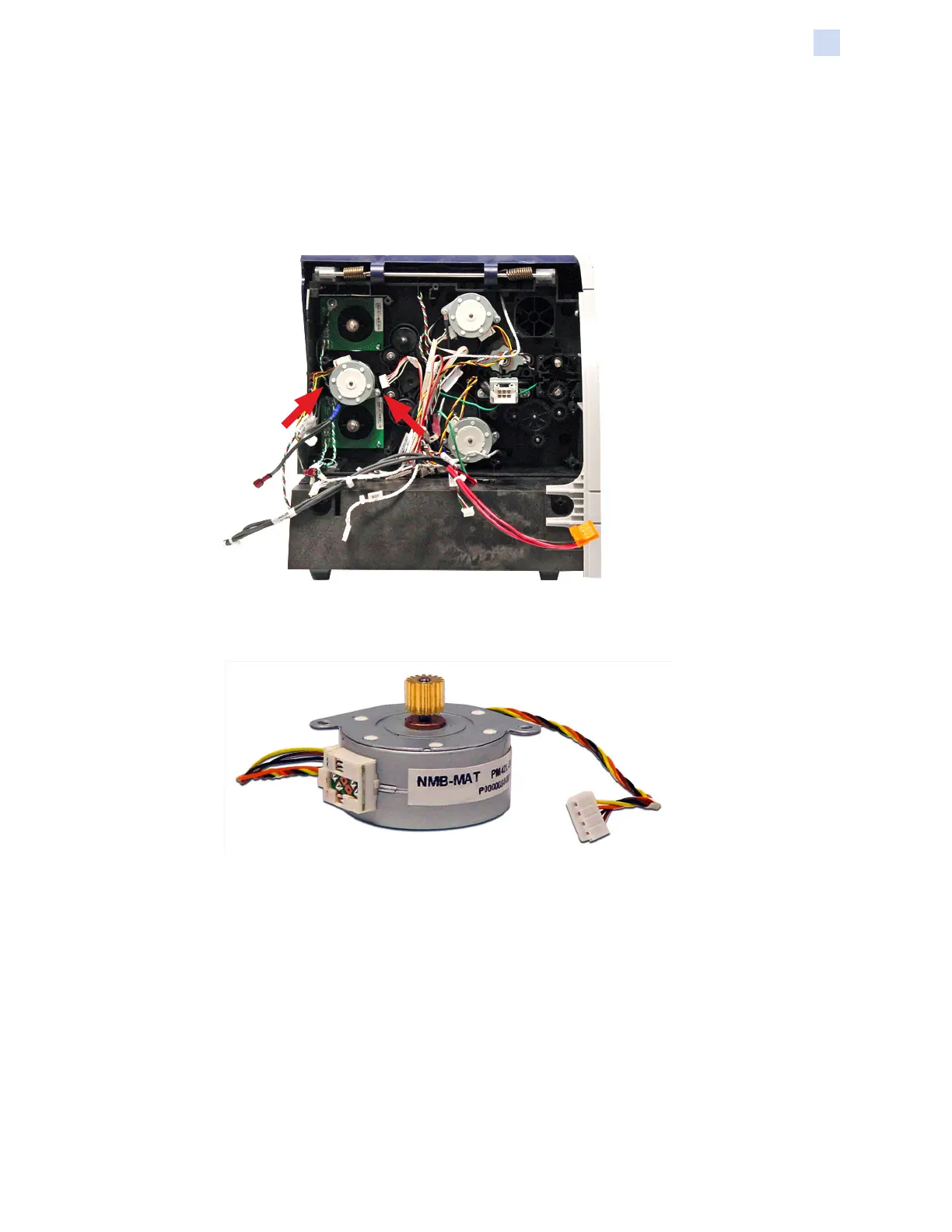

Staging Motor
For replacement, use Kit Mtr Bi-Stp PM42L-048 RGT 6 105936G-514. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Step 1. With a TORX T10 driver, remove the two screws holding the staging motor in place.
Note that the left-hand screw connects a ground wire.
Step 2. If not already disconnected, disconnect the motor plug from J18.
Step 3. Cut the associated cable ties, and remove the staging motor.
