294 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: EMI Line Filter
EMI Line Filter
For replacement, use Kit Line FIlter EMI 105936G-020. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

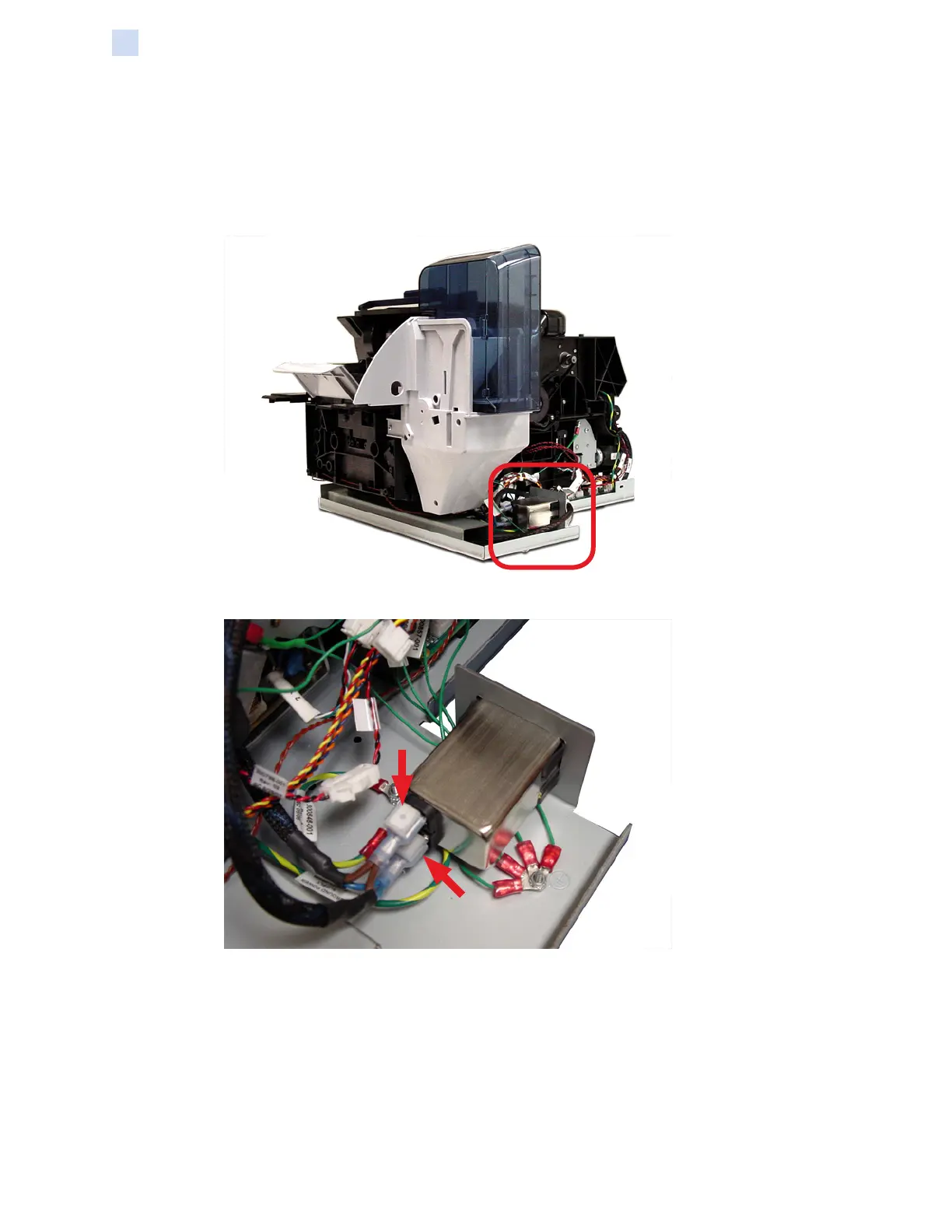

Step 1. Locate the EMI line lter.
Step 2. Unplug the two connectors (arrows below).
Step 3. Disconnect the ground wire.
Step 4. Depress the four locking tabs (two on each side) to release the EMI line lter.
