ZXP Toolbox
Advanced Settings
Mechanical

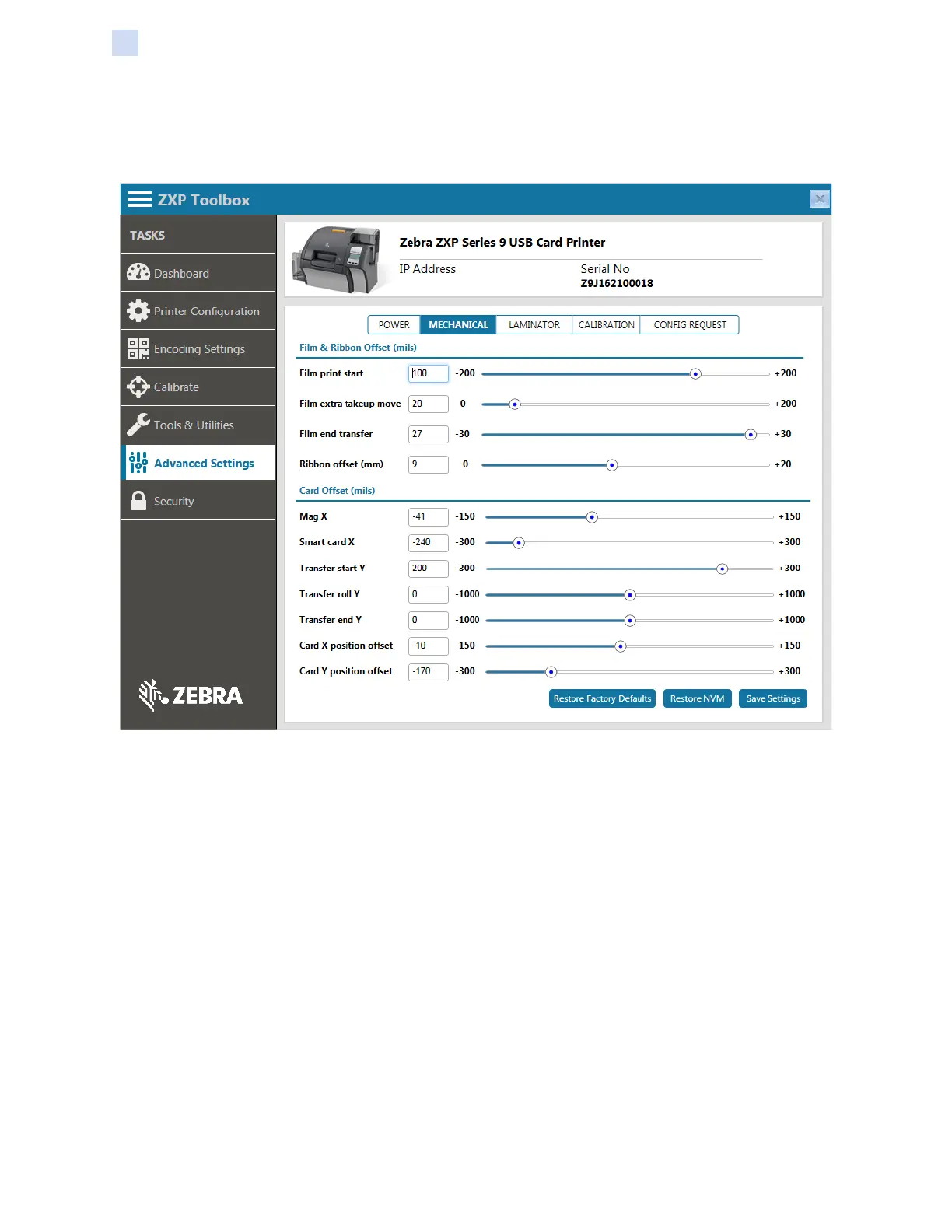

This Mechanical Adjustment screen enables you to make selected mechanical adjustments.
Film & Ribbon Offset (in mils)
These adjustments can be used to ne tune the lm and ribbon positioning with respect to the card.
Card Offset (in mils)
These adjustments can be used to position the card with respect to the various functions along the
card path through the printer.
Restore Factory Defaults – Resets the values to the factory default.
Restore NVM – Restores the settings from an XML le to the NVM (Non-Volatile Memory). You
would use this feature, for example, if you changed the main logic board and wanted to restore all of
the settings from the old board onto the new board.
Save Settings – Applies the changed values so they can be used in the future.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
