230 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Top Rear Enclosure
Procedures
Top Rear Enclosure

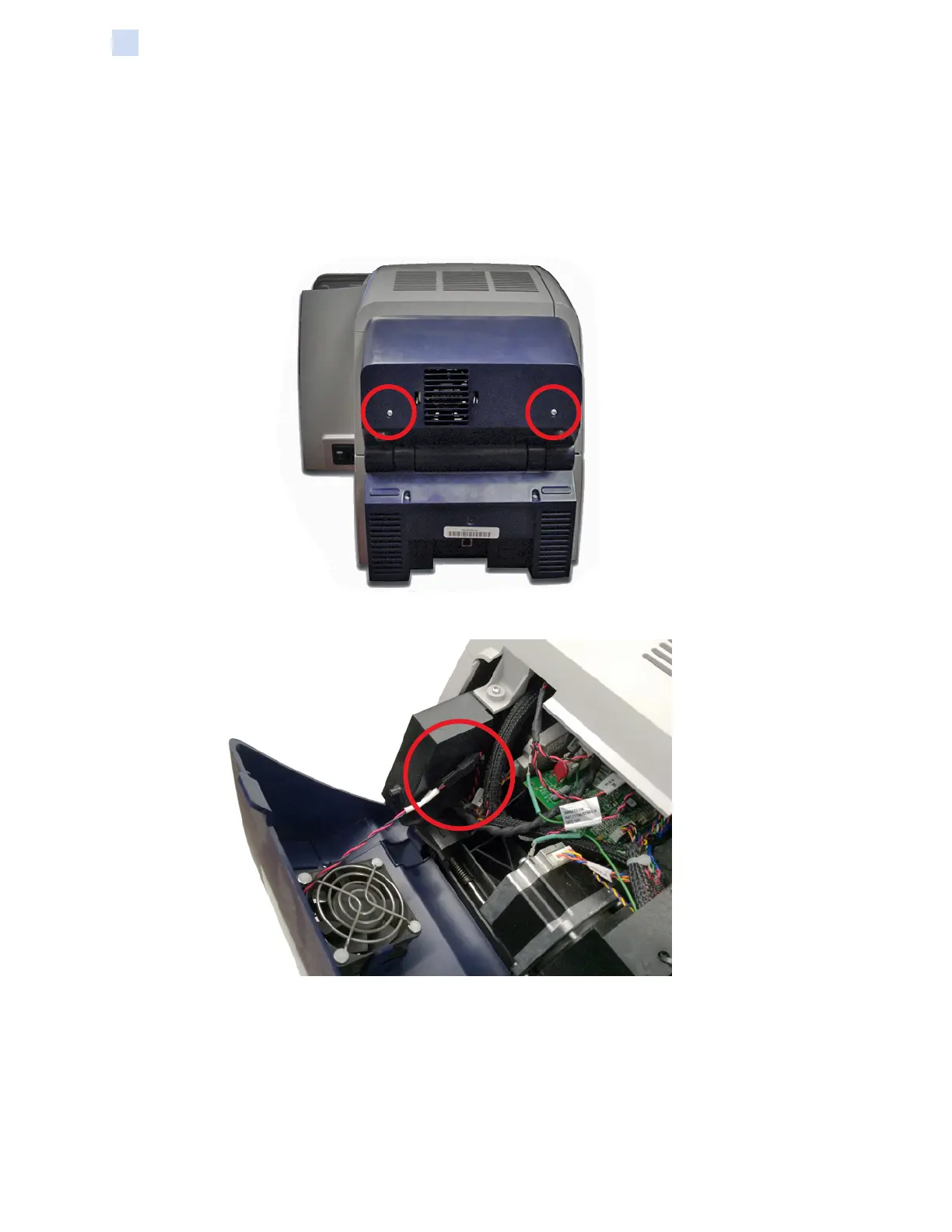

Step 1. Using a TORX T10 driver, remove the two screws (circled below) holding the top rear
enclosure in place.
Step 2. Disconnect the rear cooling fan.
Step 3. Remove the top rear enclosure with rear cooling fan.
