Magnetic Card Encoder
Media Loading Orientation
Media Loading Orientation
Note • ONLY USE cards that comply with ISO 7810 and 7811 standards for magnetic stripe cards.
The magnetic stripe must be ush to the surface of the card to work properly. Never use cards which
have taped-on magnetic stripes.

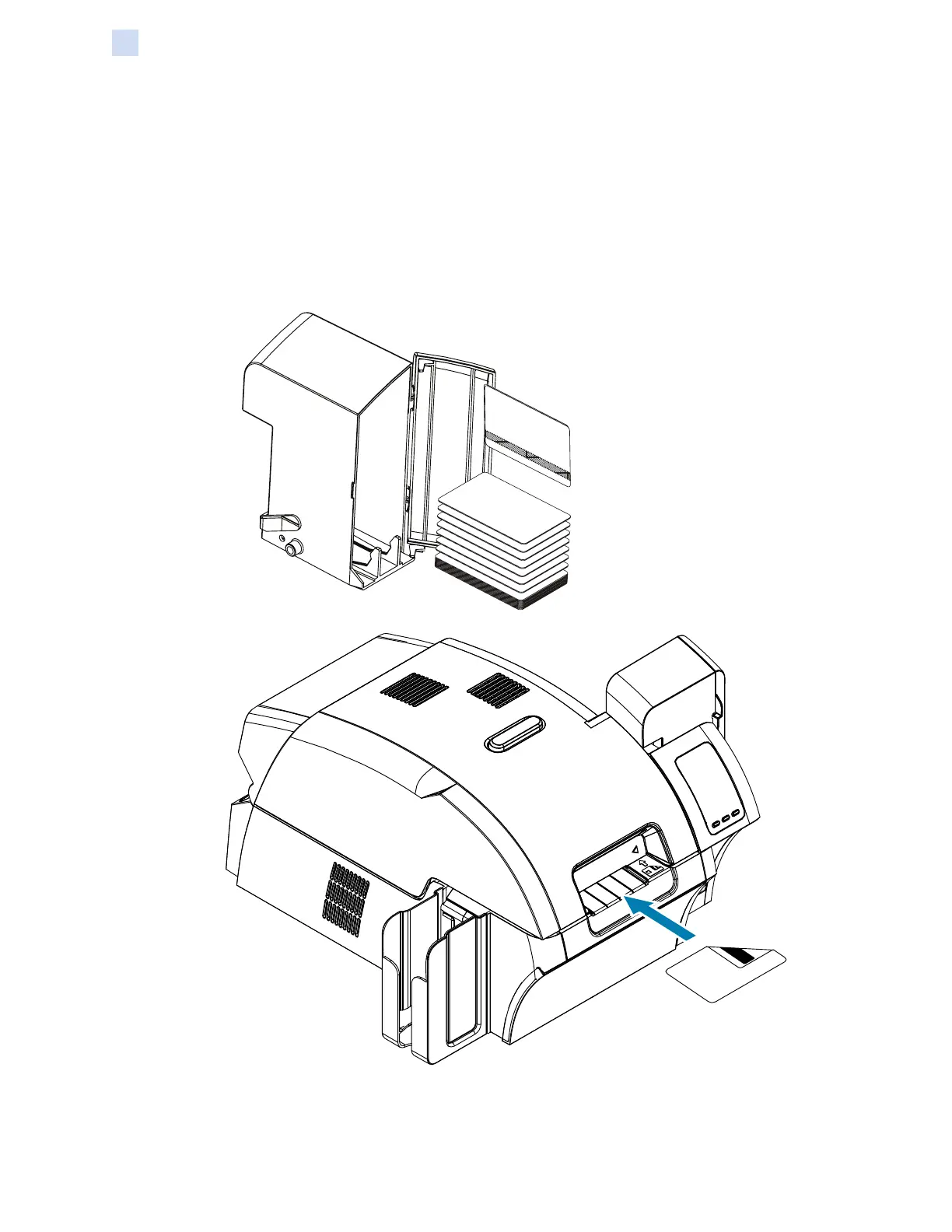

Place the cards in the input hopper with the magnetic stripe down and facing to the rear (as shown).
For manual card feed, insert the card into the manual feed slot with the magnetic stripe down and
toward the printer (as shown).
