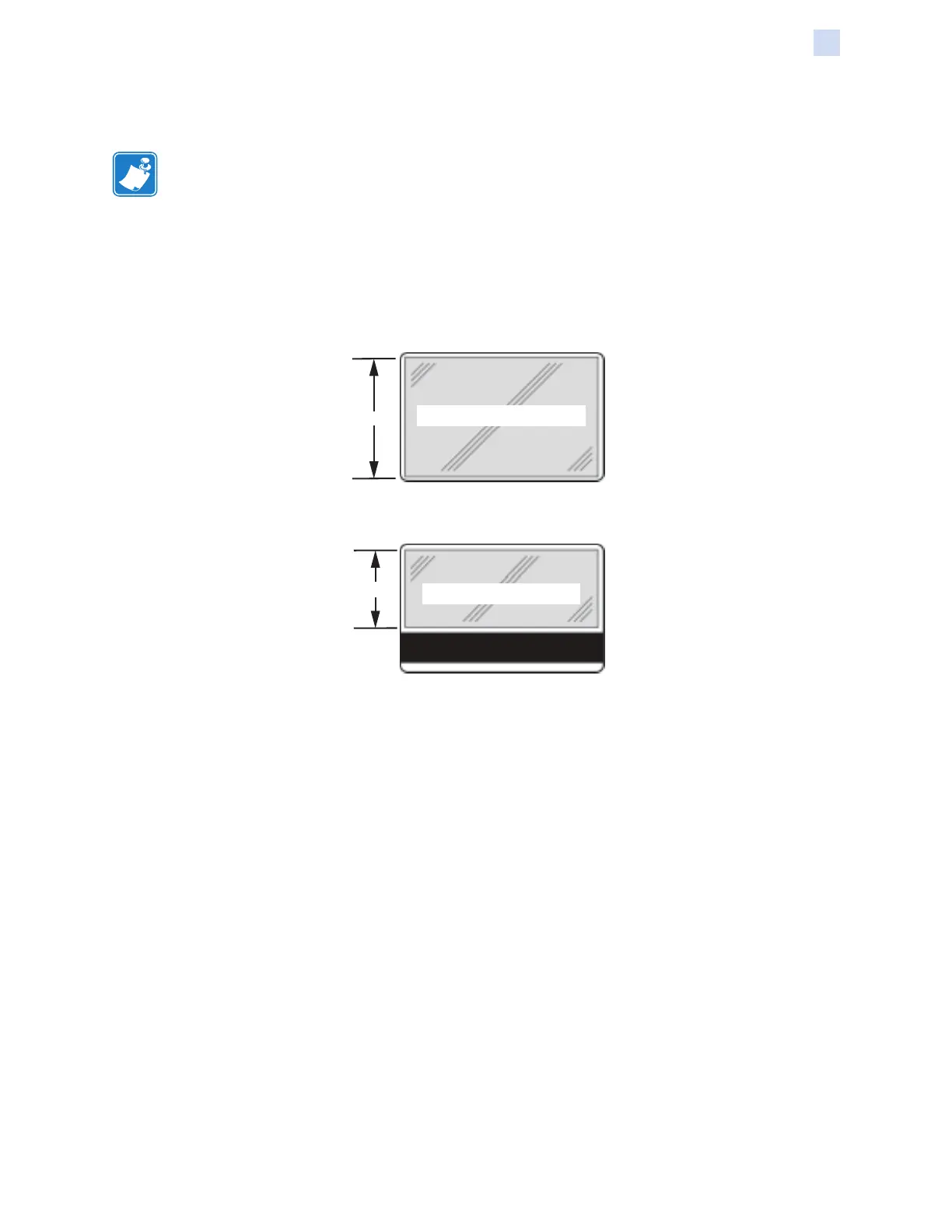

P1086708-001 ZXP Series 9 Card Printer Service Manual 423
Magnetic Card Encoder
Using Partial-Width Laminate
Using Partial-Width Laminate
Note • Since partial-width laminates are only used for the back (i.e., lower) surface of the
card, this section only applies to the double-sided laminator.
Laminates come in two widths:
y Full-Width laminate is 2 inches (51 mm) wide. The full-width laminate is used on the front
(i.e., upper) or back (i.e., lower) surface of the card.
y “Partial-Width” laminate is available as 1.33 inch (33 mm) wide (used for cards with a
magnetic stripe).
2”
1.3”
Full Width
Magnetic Stripe
FRONT OF CARD
BACK OF CARD
Step 1. Remove the lower laminate cassette.
Step 2. Open the cassette, and remove the laminate if present.
