Replacement Procedures for the Laminator
Procedures: Laminate Ribbon Rollers (Top & Bottom)
Laminate Ribbon Rollers (Top & Bottom)
For replacement, use Kit Roller Rib Laminate 105936G-523. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

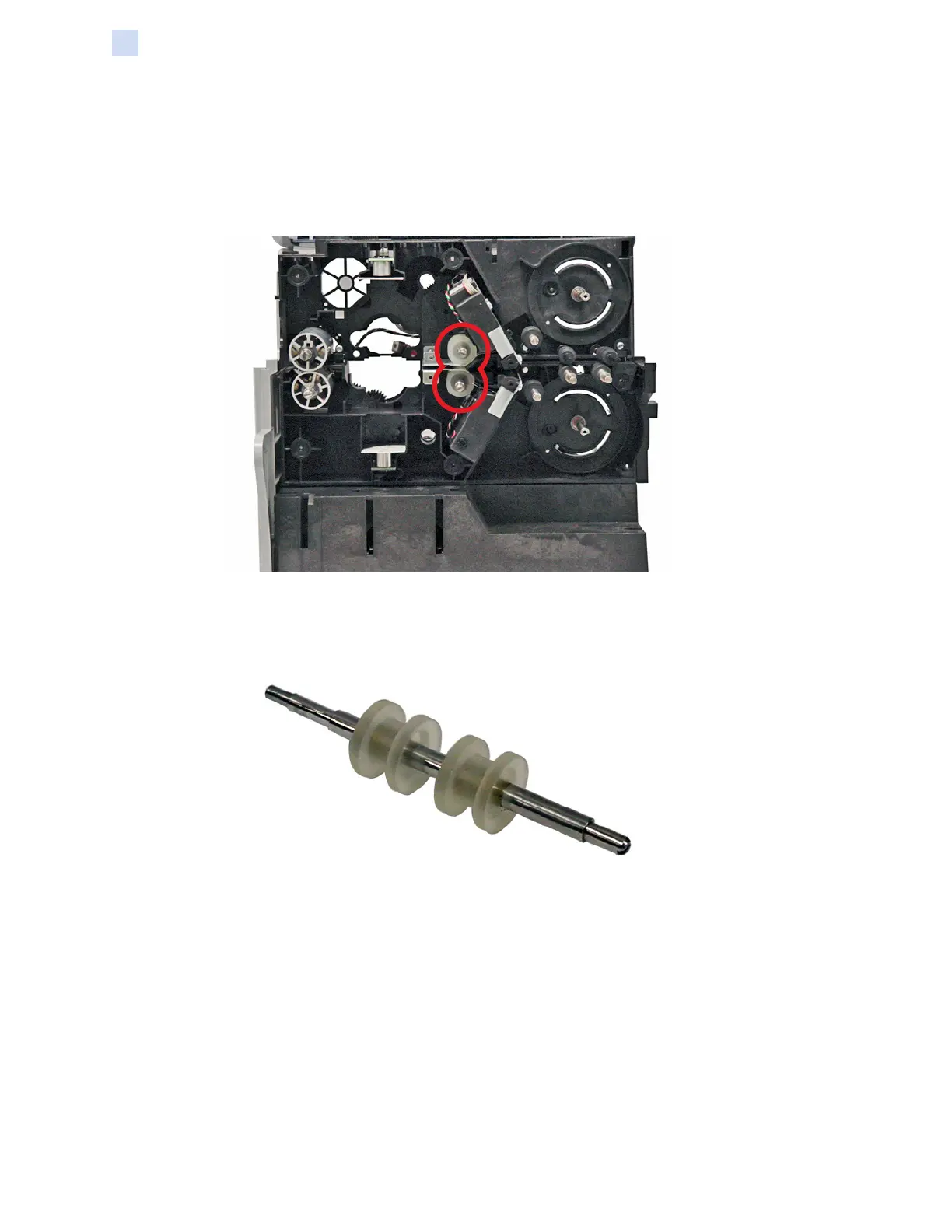

Step 1. Locate the laminate rib roller—top and/or bottom (circled below).
Step 2. Remove the corresponding cutter(s) (see “Cutters (Upper & Lower)” on page 396).
Step 3. Remove the laminate rib roller(s).
