P1086708-001 ZXP Series 9 Card Printer Service Manual 311
Replacement Procedures for the Printer
Procedures: Main PCBA
Main PCBA
For replacement, use Kit Main Logic Board ZXP9 105936G-319. Contact Zebra Customer Service
at +01 877-275-9327 for ordering information.
Step 1. Windows 7: Select Start > Devices and Printers, right click the Zebra ZXP Series 9
Card Printer, and select Printer properties from the pop-up menu.
Windows 8: Right-click the screen’s bottom-left corner (or press Windows+I) and
choose Control Panel from the pop-up menu, right click the Zebra ZXP Series 9 Card
Printer, and select Printer properties from the pop-up menu.
Windows 10: Select the Start menu and then select Settings > Devices, right click
the Zebra ZXP Series 9 Card Printer, and select Printer properties from the pop-up
menu.
Step 2. Select the Device Information tab and click on ZXP Toolbox.

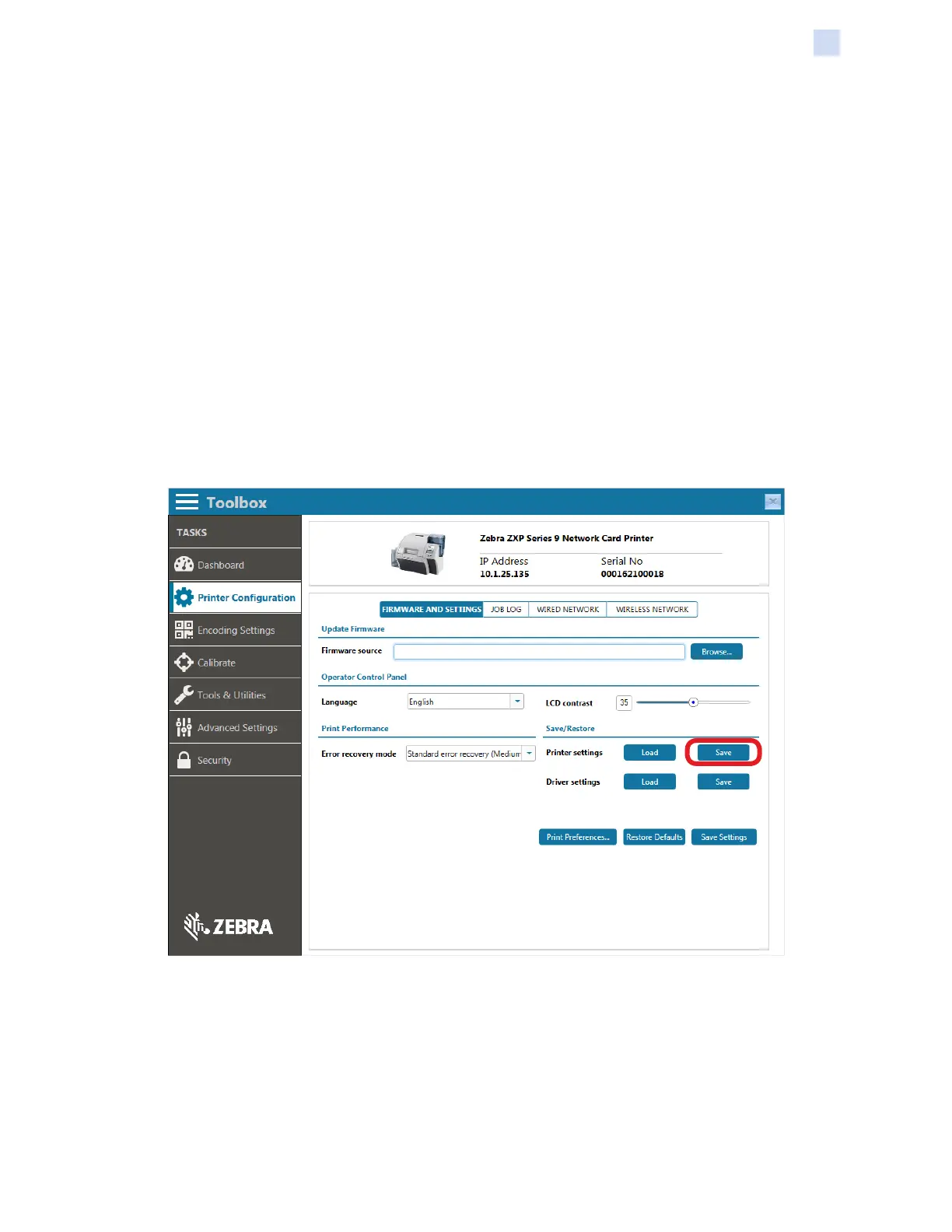

Step 3. From the Toolbox, select the Printer Conguration tab. From the Firmware and
Settings menu, save the Printer settings by clicking Save (circled below).
Step 4. Enter a le name and click Save. The Printer Settings are saved as an XML le.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
