P1086708-001 ZXP Series 9 Card Printer Service Manual 231
Replacement Procedures for the Printer
Procedures: Rear Cooling Fan
Rear Cooling Fan
For replacement, use Kit Rear Cooling Fan 105936G-023. Contact Zebra Customer Service at +01
877-275-9327 for ordering information.

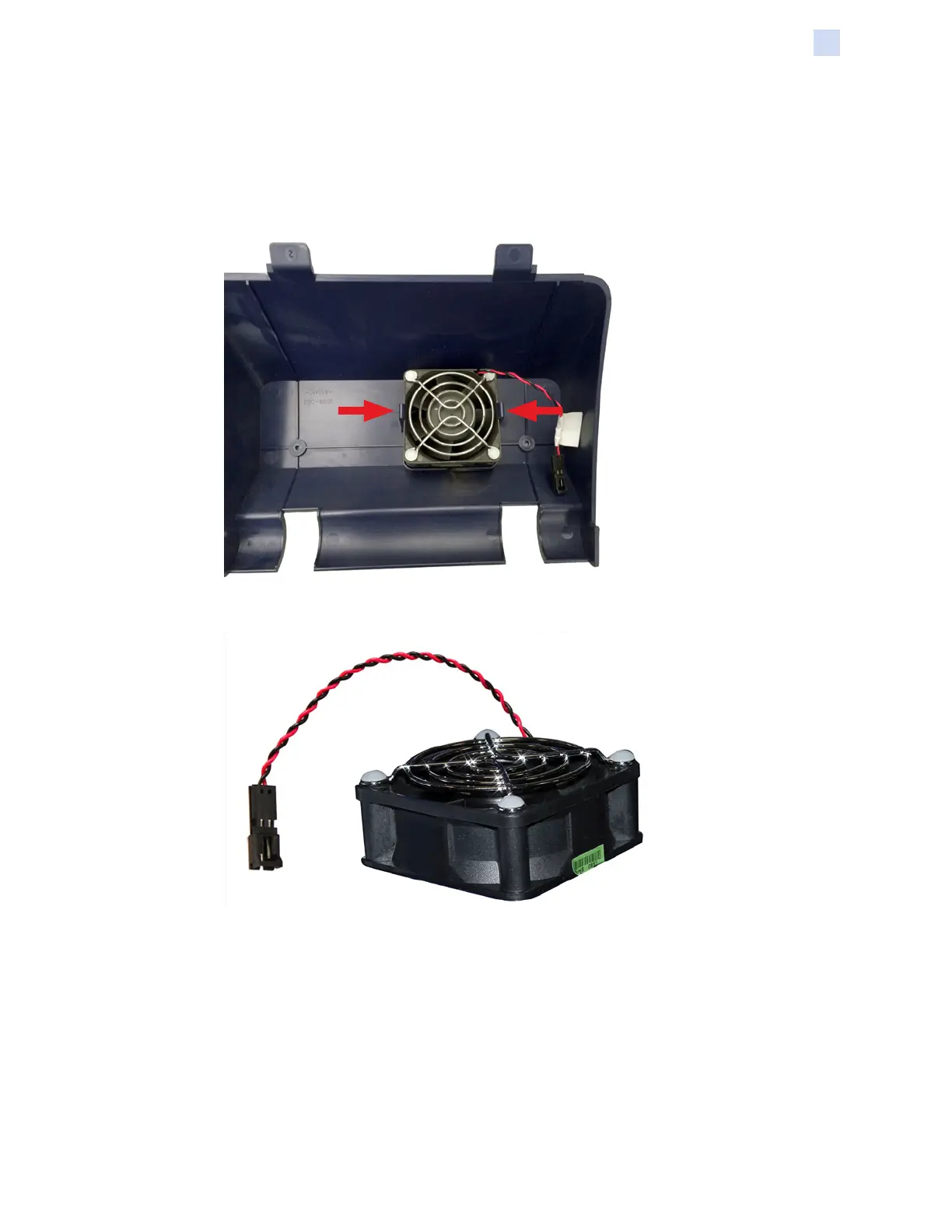

Step 1. Lift the two locking tabs (arrows below) to free the rear cooling fan.
Step 2. Remove the rear cooling fan and two rubber gaskets.
