Zebra ZXP 9 Series - Ribbon Payout Drive Assembly

P1086708-001 ZXP Series 9 Card Printer Service Manual 297
Replacement Procedures for the Printer
Procedures: Ribbon Payout Drive Assembly
Ribbon Payout Drive Assembly
For replacement, use Kit Ribbon Payout Drive Assembly 105936G-001. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.

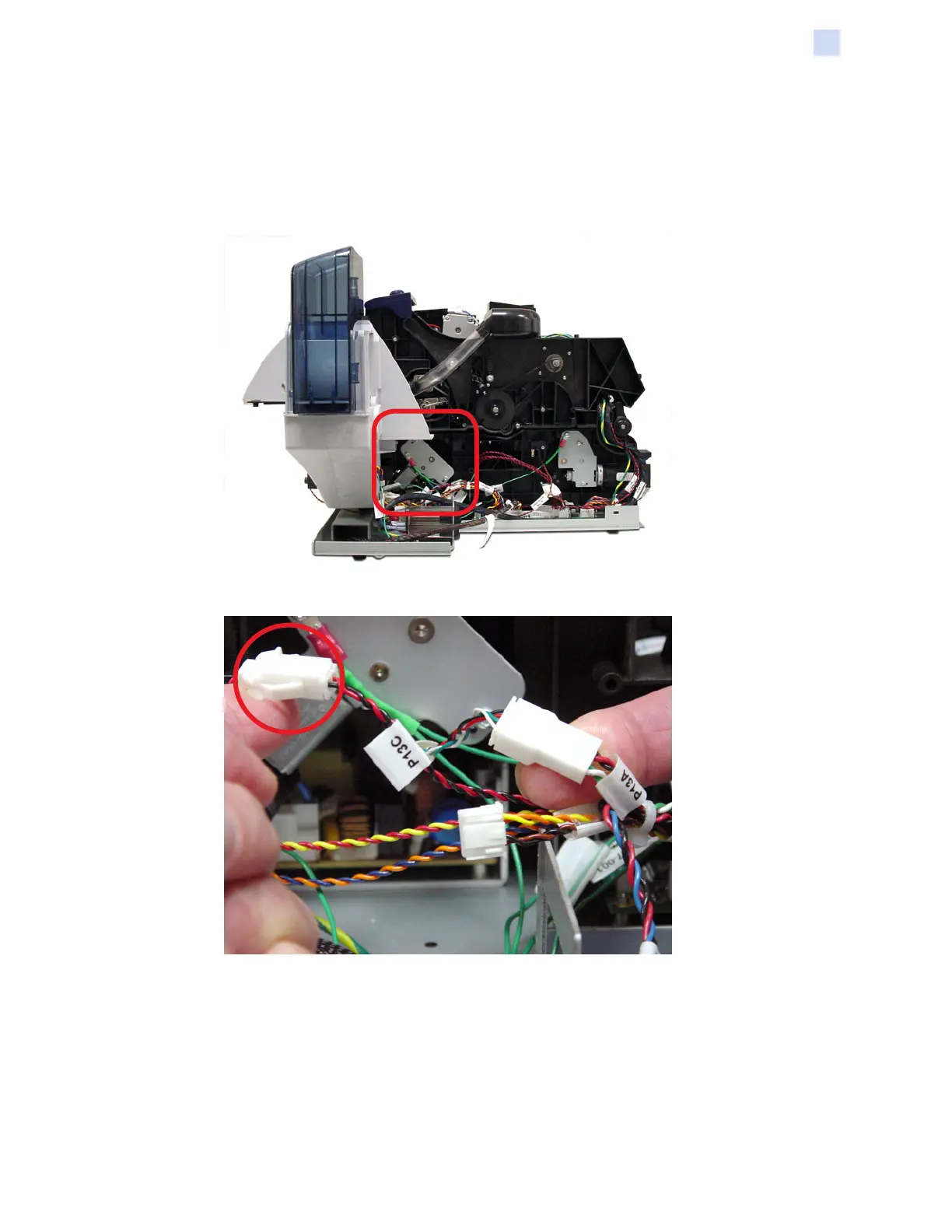

Step 1. Locate the ribbon payout drive assembly.
Step 2. Disconnect P13C.
