P1086708-001 ZXP Series 9 Card Printer Service Manual 217
ZXP Toolbox
Advanced Settings
Calibration

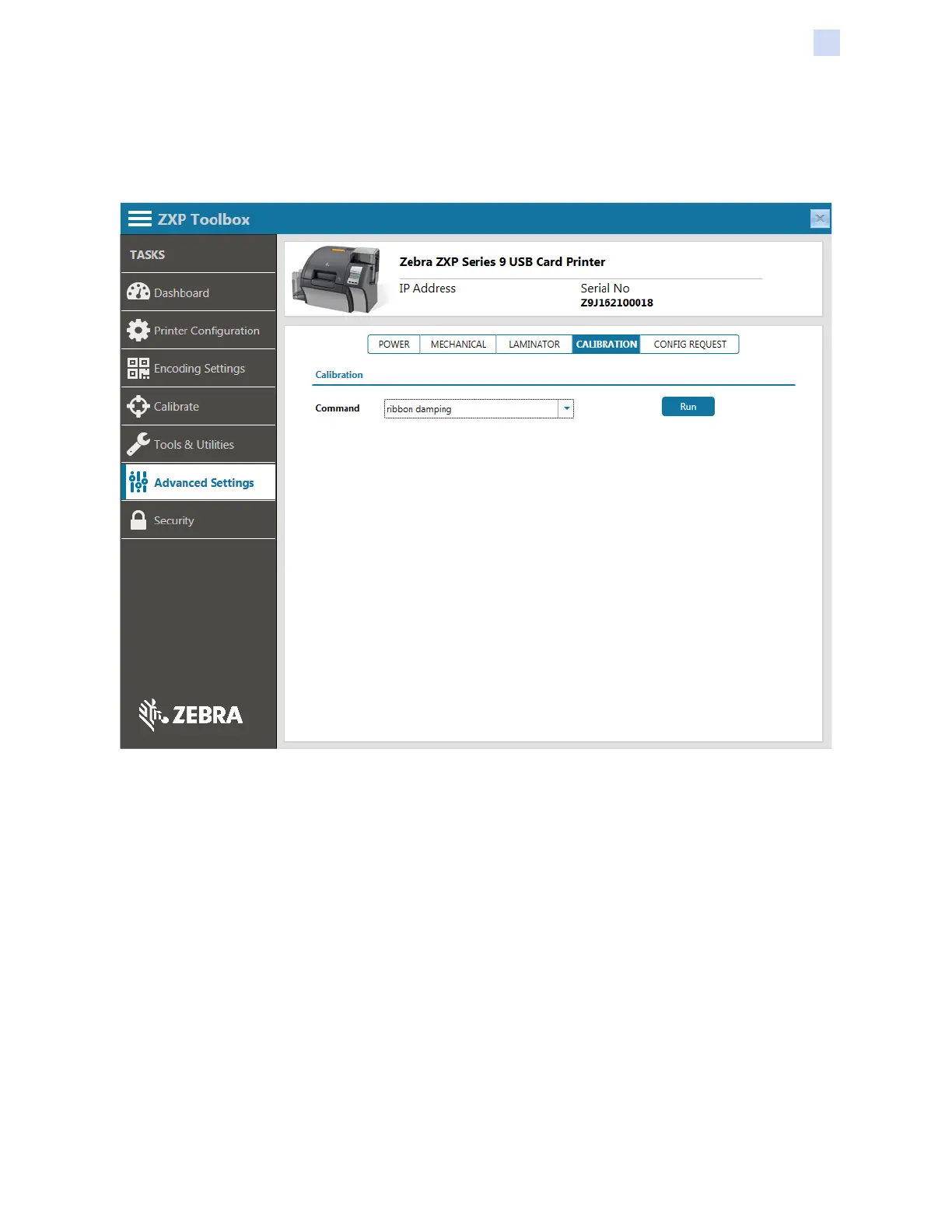

This page is used to calibrate certain areas of the printer that are not working properly, or have been
repaired or replaced.
Calibration
Ribbon Damping – Perform when you experience print issues, particularly when the ribbon is not
peeling properly from the lm.
Tricolor – Perform when you experience Ribbon Color Detect errors.
Mag Position – Perform when you experience Start Sentinel errors.
Run – Starts the selected calibration routine; follow the on-screen instructions.
