Theory of Operation

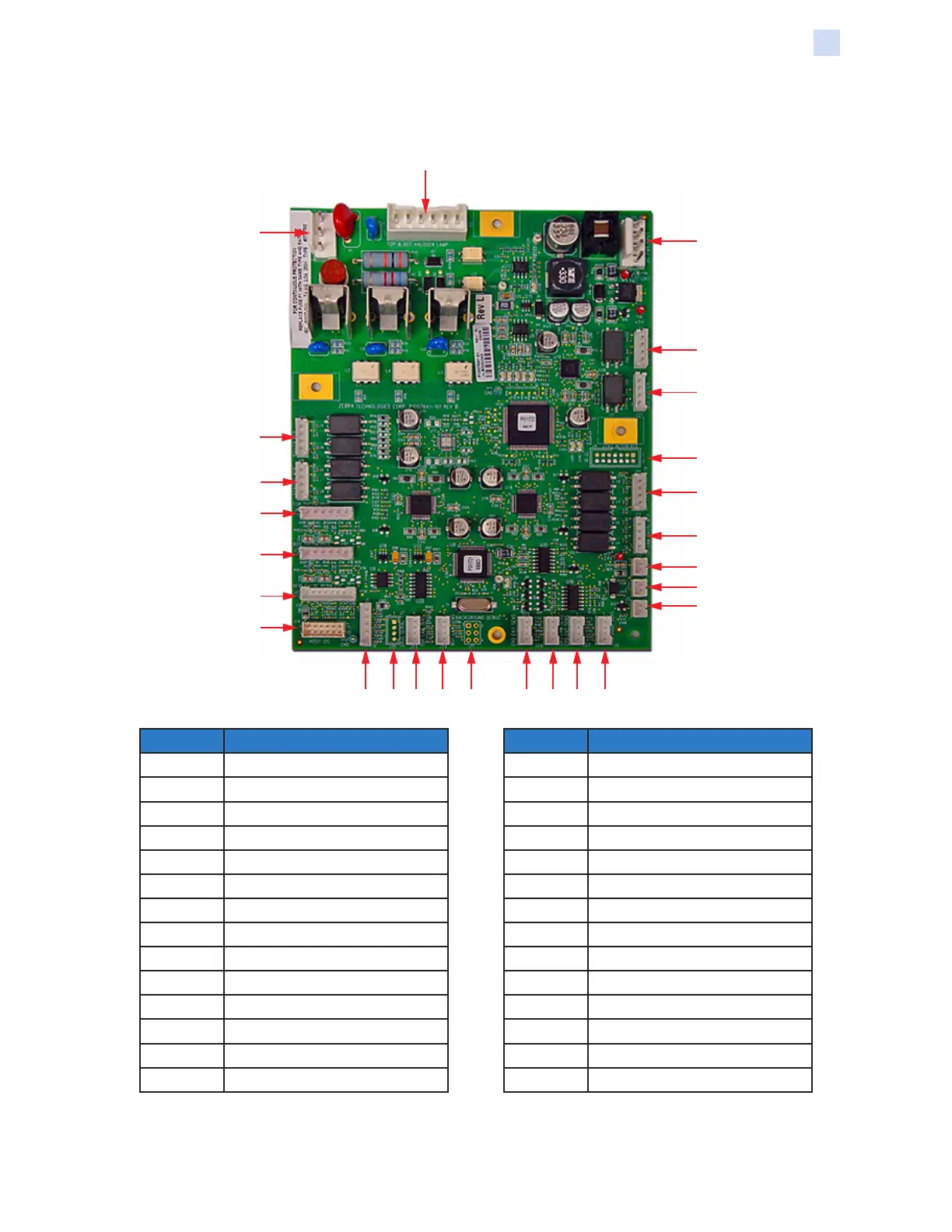

Laminator PCBA Connections
Laminator PCBA Connections
J15
J22
J21
J4
J19
J17
J12
J3
J5
J8
J20
J18
J6
J7
J13
J14
J2
J1 J10 J23 J24 J11 J25 J26 J27 J9
Connector Description Connector Description
J1 Host Serial TTL J15 DC to DC Power Conversion
J2 Top and Bottom Halogen Lamps J16 N/A
J3 Fan J17 Top Laminator Control Motor
J4 JTAG Interface J18 Staging Motor
J5 Fan J19 Bottom Laminator Control Motor
J6 Top Thermopile J20 Roller Drive Motor
J7 Bottom Thermopile J21 Bottom Cutter
J8 External AC Power J22 Top Cutter
J9 Laminator Door Sensor J23 Top Laminator Sensor
J10 Debug Serial TTL J24 Bottom Laminator Sensor
J11 Background Debug J25 Card Exit Sensor
J12 Fan J26 Card Laminator Sensor
J13 RFID Control PCBA I/F J27 Card Entey Sensor
J14 HOST I2C -
