P1086708-001 ZXP Series 9 Card Printer Service Manual 305

Replacement Procedures for the Printer

Procedures: Ribbon Take-up Sensor

Ribbon Take-up Sensor

For replacement, use Kit C/A Sensor Ribbon Takeup 105936G-030. Contact Zebra Customer

Service at +01 877-275-9327 for ordering information.

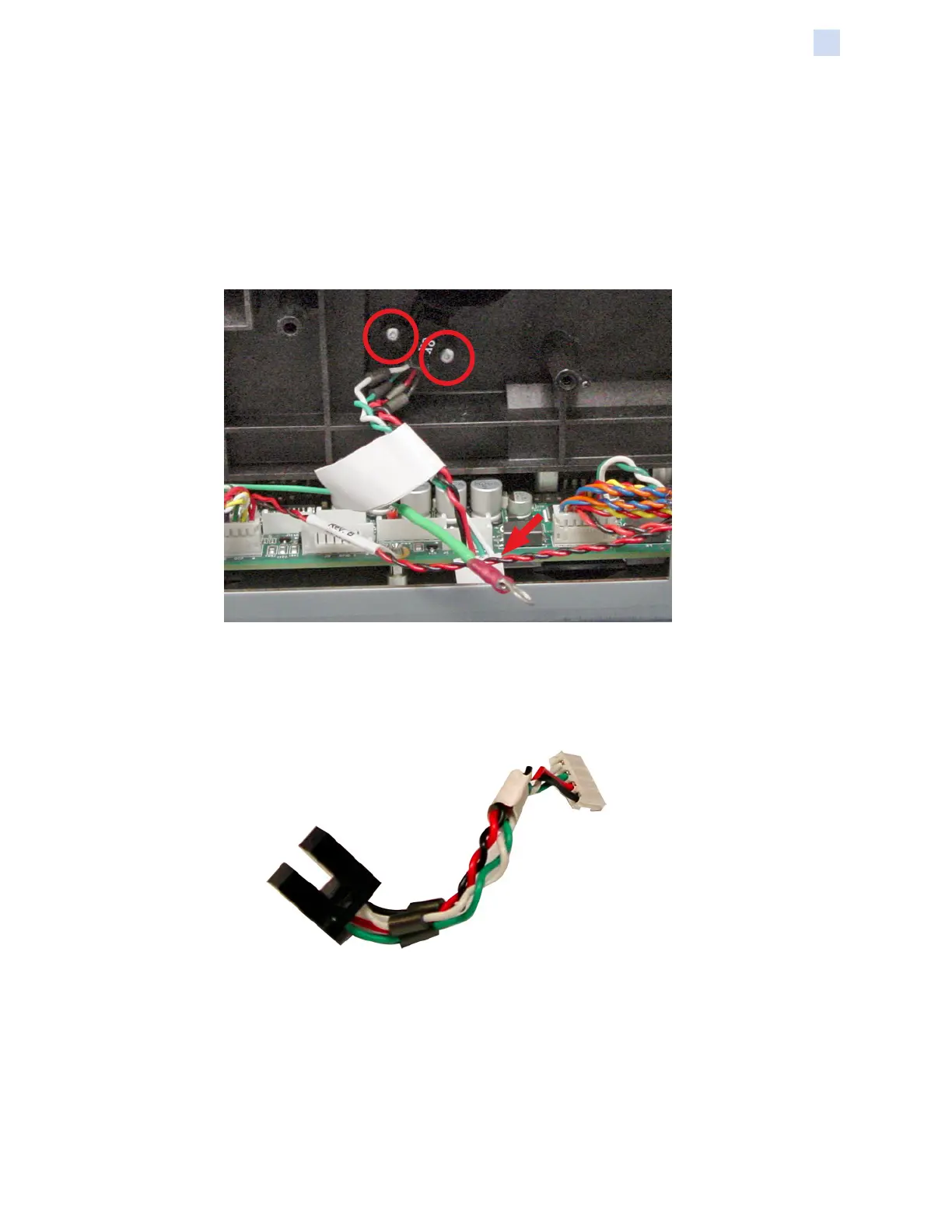

Step 1. With a TORX T6 driver, remove the two screws (circled below) holding the ribbon

take-up sensor in place.

Step 2. Disconnect the plug at J5 (arrow below).

Step 3. Remove the ribbon take-up sensor.
