P1086708-001 ZXP Series 9 Card Printer Service Manual 429

Smart Card Encoder

Contact Station Smart Card Interface

When a command to the printer interface sends a card to the smart card contact station, the printer

connects the smart card contact station to the female DB-9 connector on the rear of the printer.

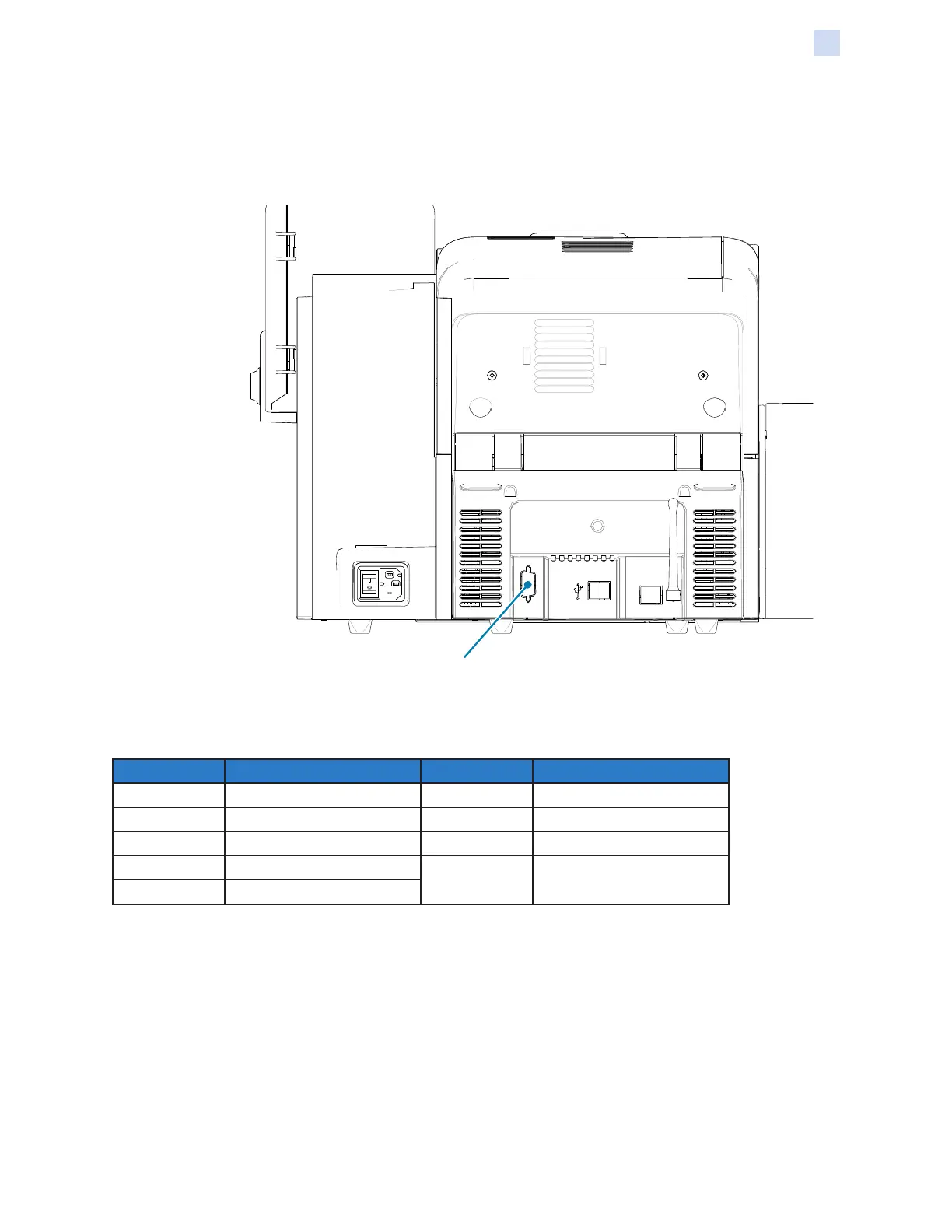

DB9 Connection

DB9 Connection (optional)

An attached external smart card programmer can be used to program smart card chips. The

following table shows the smart card contact points.

Pin Smart Card Contact Points DB-9 Smart Card Contact Points

1 C1 (VCC) 6 C6 (Vpp)

2 C2 (Reset) 7 C7 (I/O)

3 C3 (Clock) 8 C8 (RFU)

4 C4 (RFU)

9 (GND when chip is at station)

5 C5 (GND)
