P1086708-001 ZXP Series 9 Card Printer Service Manual 357
Replacement Procedures for the Laminator
Procedures: Halogen Bulbs
Halogen Bulbs
For replacement, use Kit Heater Hal 105936G-549. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
Removal

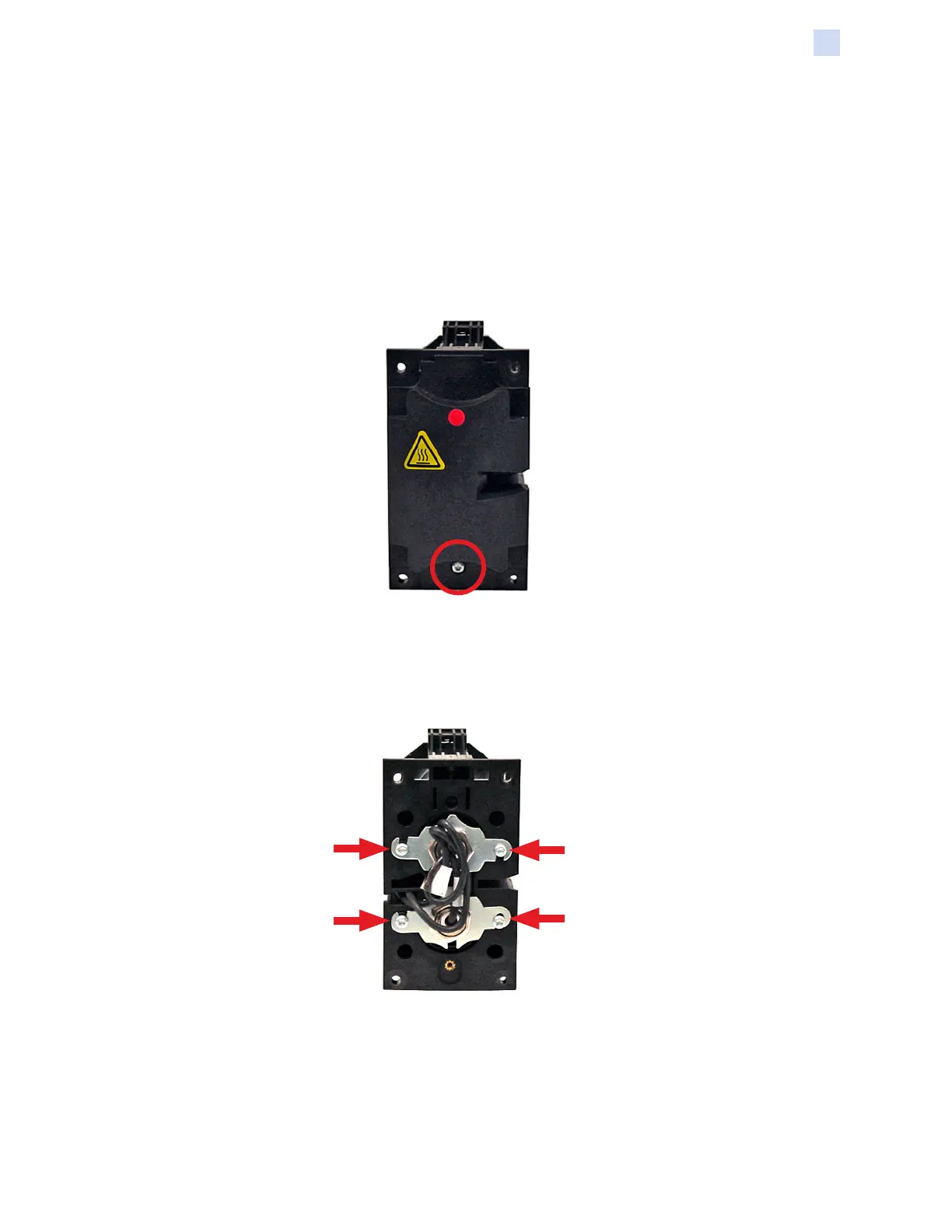

Step 1. With a TORX T10 driver, remove the screw (circled below) holding the laminator
heater cover in place.
Step 2. Remove the laminator heater cover.
Step 3. Locate the halogen bulb to be replaced; then with a TORX T10 driver, loosen the two
screws holding the socket (and halogen bulb) in place.
