P1086708-001 ZXP Series 9 Card Printer Service Manual 333
Replacement Procedures for the Printer
Procedures: Contact Station PCBA
Contact Station PCBA
For replacement, use Kit PCBA Contact Stn 105936G-044. For the contact station upgrade,
use Kit Upgrade Contact Station with Mifare ZXP9 105936G-360 and refer to the instructions
enclosed. Contact Zebra Customer Service at +01 877-275-9327 for ordering information.

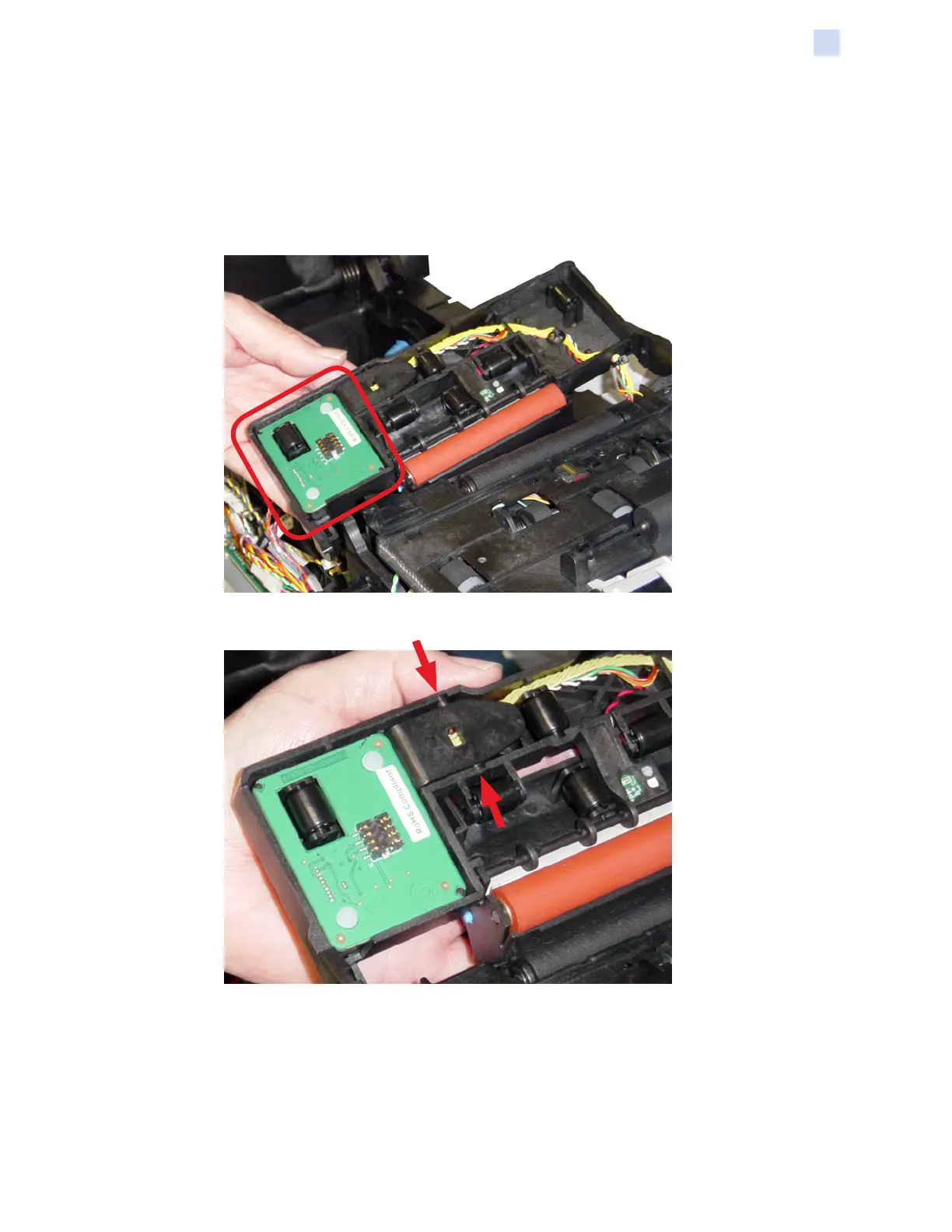

Step 1. Lift the idler cover, and locate the contact station PCBA (circled below).
Step 2. Release the pivot pins (arrows below) holding the PCBA pivot assembly in place.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
